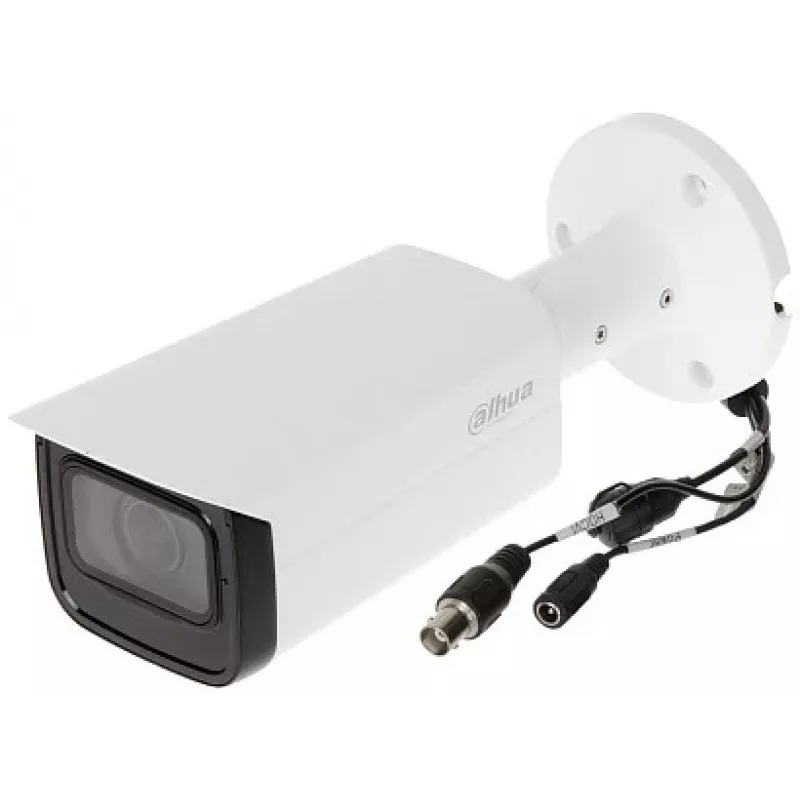

Dahua HAC-HFW2802TU-Z-A-27135-S2-DIP 8MP IR Bullet Camera, HDCVI/HDTVI/AHD, 2.7-13.5mm Motorized Lens, IP67

The Dahua HAC-HFW2802TU-Z-A-27135-S2-DIP is a high-performance 8MP IR bullet camera designed for professional surveillance. Featuring a 1/2.7-inch CMOS sensor, it delivers crisp 4K resolution at 15fps. With switchable video outputs (HDCVI, HDTVI, AHD, CVBS), it offers flexibility for various systems. The motorized varifocal lens (2.7-13.5mm) provides a wide horizontal field of view from 111° to 37°, ideal for monitoring large areas. Smart IR technology ensures clear images up to 80 meters in complete darkness.

Advantages

This camera excels in versatility and image quality. True 120dB WDR handles high-contrast scenes, while 2D/3D NR reduces noise for clear footage. The built-in microphone captures audio, and the IP67-rated metal housing withstands harsh weather. Coaxial control allows easy OSD menu adjustments.

Suitable for

• Outdoor perimeter surveillance
• Parking lots and entrances
• Warehouses and industrial sites
• Retail and commercial premises

Key specifications

• Sensor: 1/2.7-inch CMOS, 8MP (3840x2160)
• Video Output: HDCVI / HDTVI / AHD / CVBS switchable
• Lens: Motorized varifocal 2.7-13.5mm, F1.3
• IR Distance: Up to 80m (Smart IR)
• Minimum Illumination: 0.03 Lux (Color), 0 Lux (IR on)
• WDR: 120dB True WDR
• Noise Reduction: 2D/3D NR
• Audio: Built-in microphone
• Ingress Protection: IP67
• Power: 12V DC, max 10.8W
• Operating Temperature: -30°C to +60°C
• Housing: Metal

Recommendations

For optimal performance, use a compatible Dahua DVR or XVR supporting 8MP HDCVI. Ensure proper grounding and surge protection for outdoor installations.
