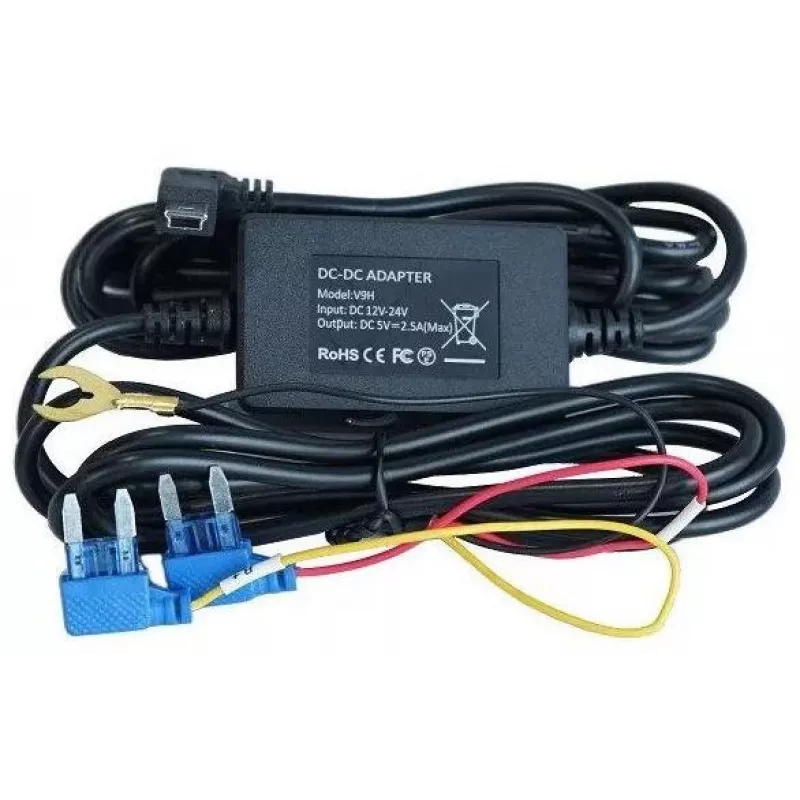

Dahua DH-DAE-CDL-V9H Parking Mode Power Supply

The Dahua DH-DAE-CDL-V9H Parking Mode Power Supply is a hardwired voltage regulator designed to enable parking mode surveillance for compatible Dahua dashcams. It connects directly to your vehicle's fuse box, providing stable 5V output from a 12V-24V input while protecting your car battery from over-discharge.

Advantages

This power supply allows your dashcam to continue recording even when the vehicle is parked, ensuring round-the-clock security. With selectable low voltage cut-off thresholds and parking mode timers, you can customize the system to match your battery's capacity and your surveillance needs. The built-in protection features safeguard both the dashcam and your vehicle's electrical system.

Suitable for

• Dahua dashcams (e.g., DHI-DAE-LC100, LC200, LC300, LC500 series)
• Vehicles with 12V or 24V electrical systems
• Users requiring continuous parking surveillance

Key specifications

• Input Voltage: DC 12V-24V
• Output Voltage: DC 5V
• Output Current: 2.5A (Max)
• Output Connector: USB Type-C
• Input Wiring: ACC, B+, GND (Hardwire)
• Low Voltage Cut-off (12V): Selectable 11.8V / 12.0V / 12.2V / 12.4V
• Low Voltage Cut-off (24V): Selectable 23.6V / 24.0V / 24.4V / 24.8V
• Parking Mode Timer: Selectable 6h / 12h / 24h / Always On
• Input Cable Length: Approx. 1 meter
• Output Cable Length: Approx. 3.5 meters
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +85°C
• Protection: Low Voltage Cut-off, Short Circuit, Overcurrent
• LED Indicator: Yes

Recommendations

For optimal performance, ensure proper installation by a qualified technician. Verify compatibility with your specific Dahua dashcam model before purchase. The selectable voltage cut-off should be set according to your vehicle's battery type and condition.
