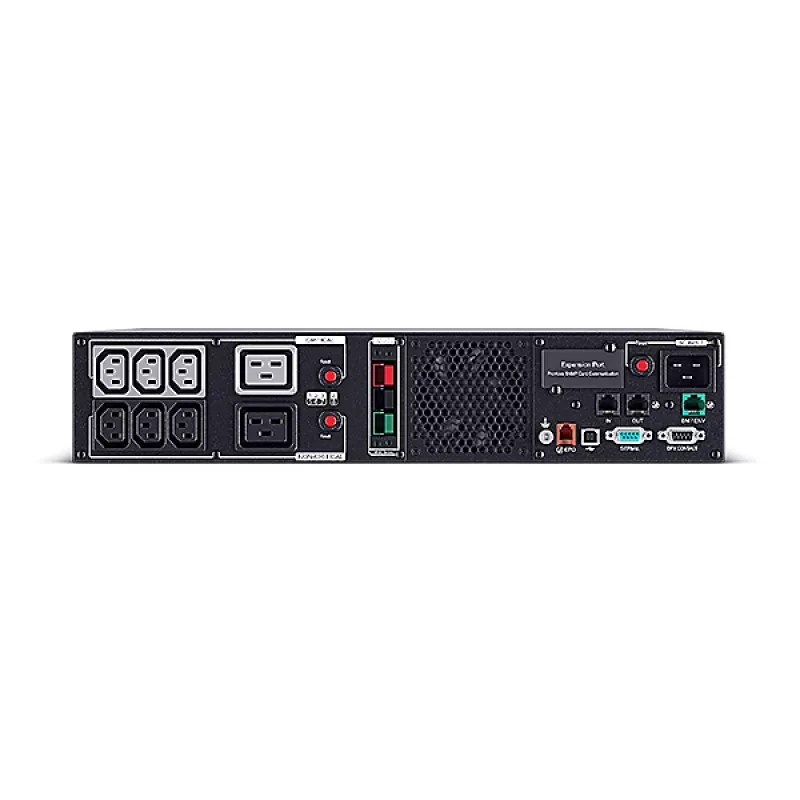

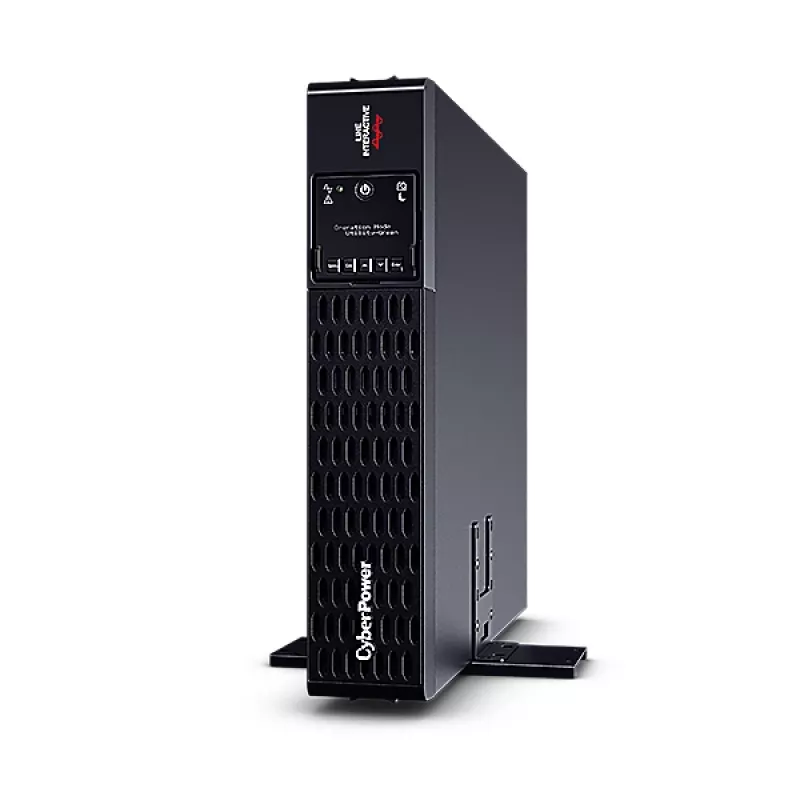

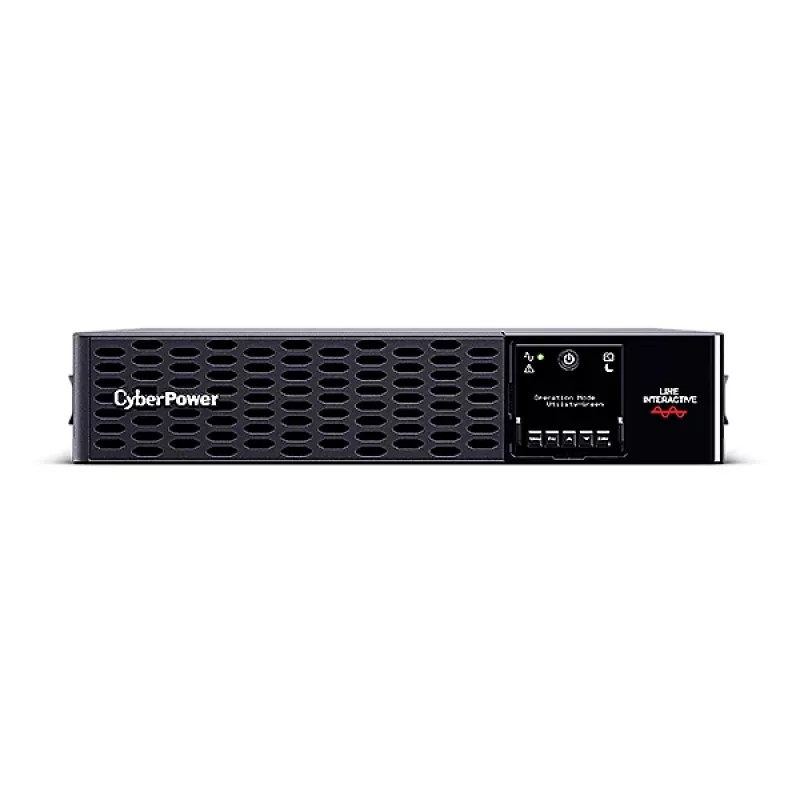

CyberPower PR2200ERTXL2U uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W 8 AC outlet(s)

The CyberPower PR2200ERTXL2U is a 2.2 kVA / 2200 W line-interactive uninterruptible power supply in a rackmount/tower form factor designed to provide reliable backup power for home theatre systems, multimedia devices, IT equipment, computers, workstations, NAS/storage devices, telecom and networking equipment, and surveillance systems. It delivers stabilized pure sine wave output and includes Automatic Voltage Regulation (AVR), sealed lead-acid batteries and a metal housing for durable installation in rack or tower setups.

Advantages

The UPS offers a power factor of 1, enabling connection of more critical loads compared with many conventional UPS units. Battery Management Technology balances battery string voltage to extend battery life, while two-phase charging provides faster and safe recharging. Hot-swappable battery packs allow maintenance without interrupting output. A multifunctional, rotatable matrix LCD enables intuitive operation and quick configuration. The unit includes 8 AC outlets (C13 and C19) and one USB 2.0 port and meets common certifications including RoHS, CE, FCC Class B, UL, RCM and VCCI.

Suitable for

• Server racks and IT cabinets requiring rackmount UPS
• Workstations and desktop computers
• NAS and storage devices
• Networking, telecom and surveillance equipment
• Home theatre and multimedia systems

Key specifications

• Output power: 2200 W
• Capacity: 2.2 kVA
• Output waveform: Pure sine wave
• Topology: Line-interactive with AVR
• AC outlets: 8 (C13 and C19)
• USB ports: 1 x USB 2.0
• Battery type: Sealed lead-acid
• Typical backup time: ~3.2 min at full load, ~11.2 min at half load
• Form factor: Rackmount / Tower, metal housing
• Weight: 34.4 kg
• Certifications: RoHS, CE, FCC Class B, UL, RCM, VCCI

How to use

Install the CyberPower PR2200ERTXL2U into a standard rack or place it in tower orientation on a stable surface according to the installation instructions. Connect critical equipment to the provided C13 and C19 outlets and connect the UPS to mains power to charge the batteries. Use the rotatable matrix LCD to configure voltage, sensitivity and output settings as required. For monitoring and graceful shutdown, connect the USB 2.0 port to a management computer and install compatible monitoring software where applicable.

Recommendations

The UPS is intended for indoor use in ventilated, temperature-controlled environments. To maximise battery life, enable Battery Management Technology and perform regular battery tests; replace batteries or hot-swappable battery packs according to manufacturer guidelines. Size the unit to ensure the connected load does not exceed 2200 W and allow capacity margin for peak loads and future expansion.
