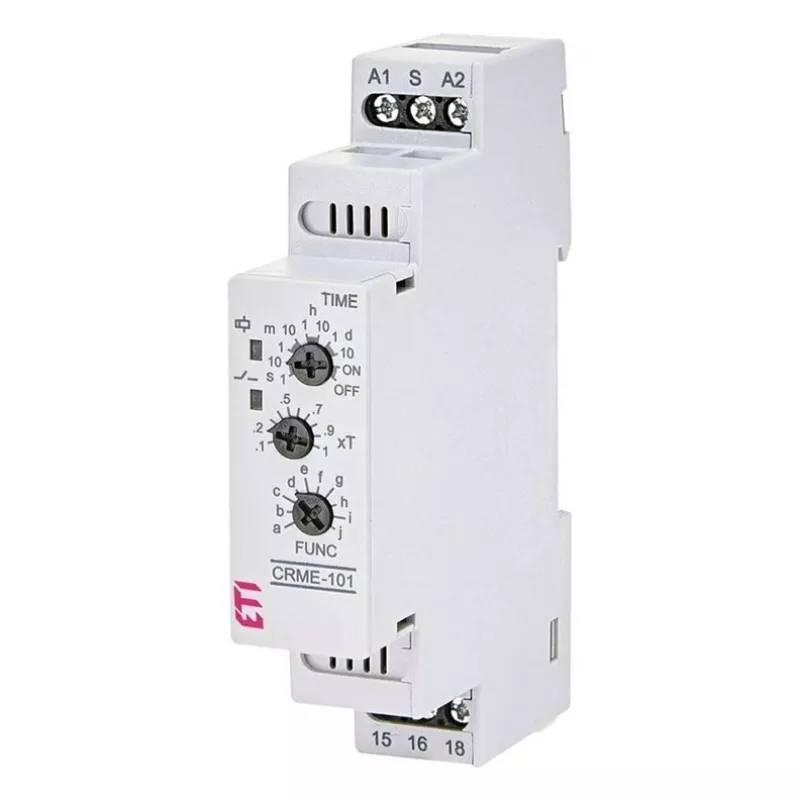

CRME-101 Multifunction Time Relay, 10 Functions, 24-240V AC/DC, 1 C/O, DIN Rail

The CRME-101 stands apart from standard time relays by combining ten selectable timing functions in a single compact unit, offering versatility that reduces inventory and simplifies panel design. With a wide supply voltage range of 24-240 V AC/DC and a universal SPDT output rated at 6 A, it adapts to diverse control circuits without the need for multiple relay variants.

Highlights

• 10 selectable timing functions: ON-delay, OFF-delay, interval, pulse, and more
• Wide time setting range from 0.05 seconds to 100 hours, adjustable via front dial
• Universal supply voltage 24-240 V AC/DC for flexible integration
• 1 change-over contact (SPDT) rated 6 A / 250 V AC for reliable switching
• DIN-rail mounting with screw terminals for quick installation
• LED indication for supply and relay status simplifies troubleshooting

In daily use

This time relay is ideal for industrial automation, building controls, and machinery where timing functions are needed. The rotary switch on the front panel lets you choose the desired function and time range without reprogramming. The green LED confirms power, while the yellow LED shows relay energization, making commissioning straightforward. The unit operates reliably in temperatures from -20 to +60 °C and meets international standards including IEC/EN 61812-1, UL 508, and CSA 22.2 No. 14.

Full specifications

• Function type: Multifunction time relay
• Number of functions: 10
• Time range: 0.05 s – 100 h
• Supply voltage (Us): 24-240 V AC/DC
• Output contacts: 1 C/O (change-over)
• Rated operational current (Ie): 6 A
• Rated operational voltage (Ue): 250 V AC
• Mounting type: DIN-rail
• Terminal type: Screw terminals
• Operating temperature: -20 to +60 °C
• Degree of protection (housing): IP50
• Degree of protection (terminals): IP20
• Indication: Green LED (supply), Yellow LED (relay status)
• Frequency range: DC, 50/60 Hz
• Output contact material: AgNi
• Standards: IEC/EN 61812-1, UL 508, CSA 22.2 No. 14

Final note

The CRME-101 delivers precision timing control in a robust, space-saving design, making it a dependable choice for demanding applications.
