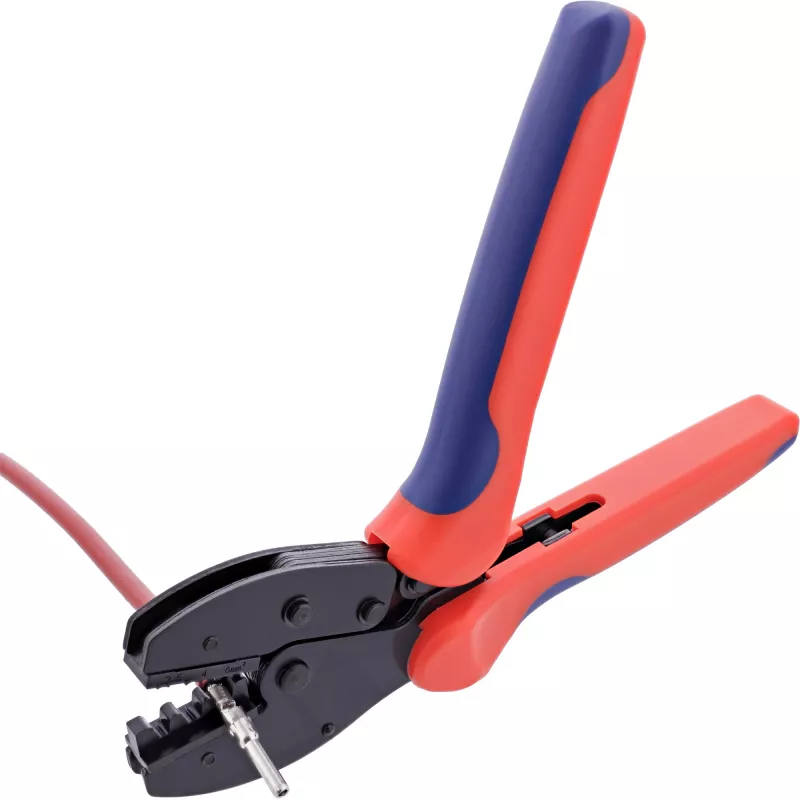

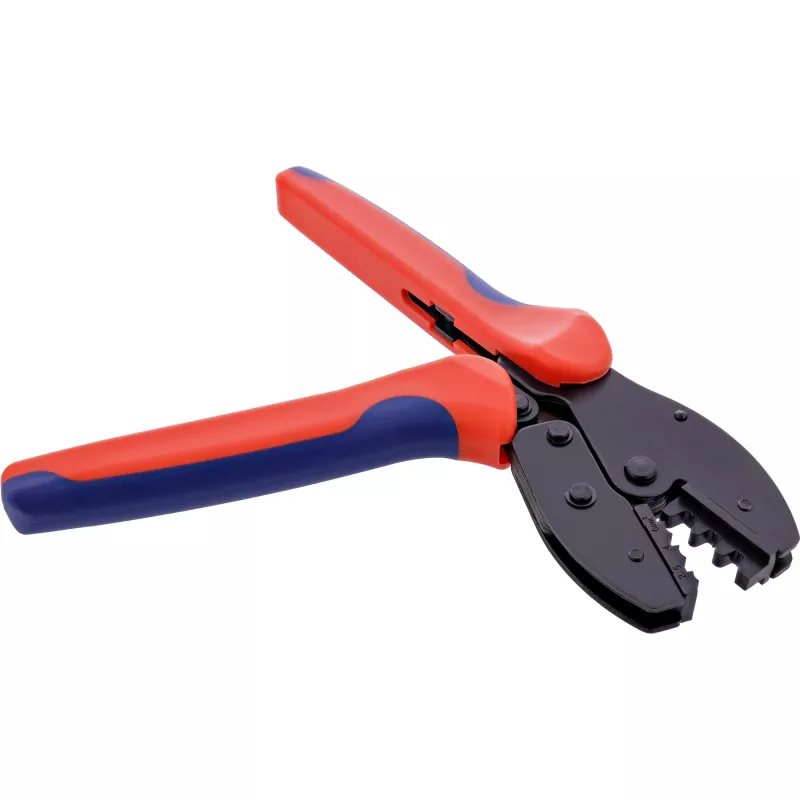

Crimping tool InLine 94100 for MC4 connectors (solar PV) Width 75 mm Depth 220 mm Height 25 mm

The InLine® crimping tool for MC4 / PV4 solar connectors is designed for accurate and reliable crimping of solar cables with cross-sections from 2.5 mm² to 6 mm² (14–10 AWG). It is intended for use with MC4 / PV4 solar connectors and combines ergonomic design with solid construction to provide consistent results suitable for modern photovoltaic installations.

Advantages

Ergonomic handles and precise jaw geometry ensure comfortable operation and reproducible crimps. Durable materials and robust construction increase tool longevity and maintain crimp quality over repeated use. The tool is compatible with common MC4 / PV4 connector pins and supports the specified conductor cross-sections.

Key specifications

• Compatible connector types: MC4 / PV4
• Conductor cross-section: 2.5 mm² – 6 mm² (14–10 AWG)
• Application: Crimping of solar cable contacts
• Design: Ergonomic handle, robust construction

How to use

Strip the cable to the recommended length for the connector, insert the contact pin onto the conductor, position the contact in the appropriate crimping die, and apply steady pressure until the crimp is complete. Verify the mechanical and electrical connection according to installation requirements. Use the tool only on the specified conductor sizes and connector types.

Recommendations

Inspect crimps visually and, when required, test electrical continuity and pull strength. Keep the tool clean and store it in a dry place to prolong service life.
