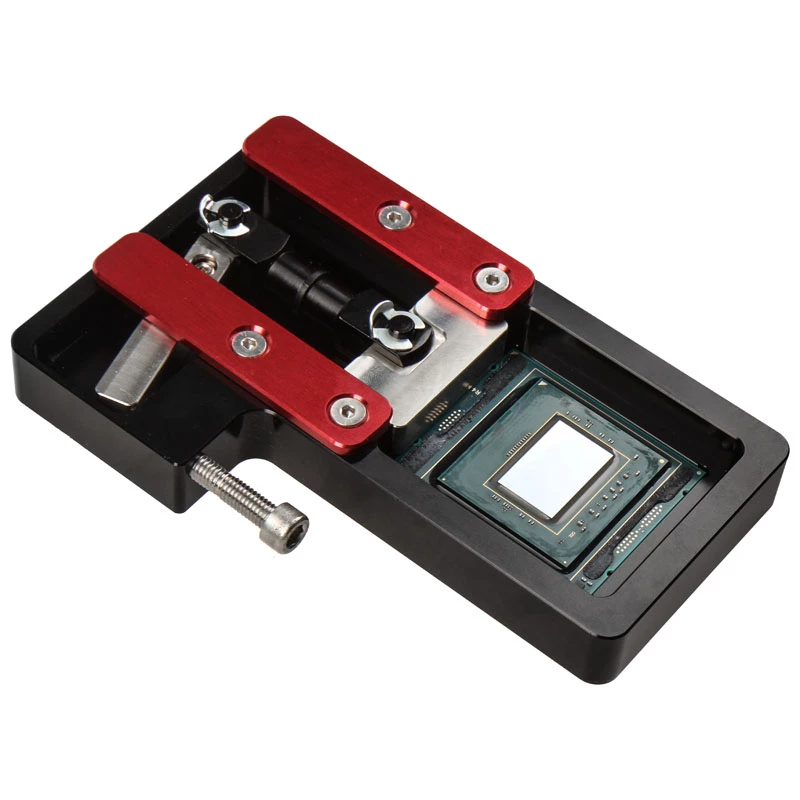

CPU Delidding Tool der8auer Delid-Die-Mate X — delid/relid kit for processor die replacement and IHS removal

der8auer Delid-Die-Mate X is a purpose-built delidding and relidding kit for desktop processors that enables safe removal of the integrated heat spreader (IHS) and precise access to the processor die. The tool set secures the CPU in a stable fixture, aligns cutting or lifting operations, and holds the IHS for controlled detachment. Designed for users who need to replace thermal interface material, perform direct-die cooling modifications, or inspect and maintain die-level components, the kit supports consistent, repeatable delidding and relidding procedures without relying on ad hoc tools.

Advantages

The Delid-Die-Mate X provides controlled mechanical alignment that minimizes the risk of accidental bending or damage to the CPU substrate and die. Its fixture-based approach ensures repeatability across multiple chips and simplifies relidding by maintaining correct orientation and pressure. The kit accommodates a range of desktop processors and reduces the need for improvised methods, improving safety and outcome predictability when replacing thermal interface materials or fitting custom cooling solutions.

Suitable for

• Enthusiasts performing thermal interface material replacement
• Technicians inspecting or repairing processor die and substrate
• Builders installing direct-die or custom cooling solutions
• Users relidding processors after maintenance or benchmarking

Key specifications

• Fixture-based delidding and relidding system for desktop CPUs
• Adjustable alignment components for precise IHS removal and placement
• Secure clamping mechanism to hold CPU during operations
• Compatible with multiple desktop processor form factors (chip carrier support without proprietary codes)
• Durable machined parts for repeatable mechanical guidance

How to use

Mount the processor into the fixture according to the orientation marks, secure the clamping components, and align the removal tool with the IHS using the adjustable guides. Perform the delidding action following the tool's mechanical guidance to lift or cut the bond between the IHS and substrate. After accessing the die, carry out thermal interface replacement or other modifications, then use the alignment features to relid the processor, ensuring even pressure and correct seating of the IHS. Follow any included manufacturer safety instructions and use appropriate anti-static precautions.

Recommendations

Use the Delid-Die-Mate X on powered-down, fully discharged systems and handle the die and substrate with ESD protection. Verify compatibility with your specific desktop CPU model before starting, and work on a stable work surface with suitable lighting. Replace thermal interface materials recommended for direct-die applications and test temperatures after reassembly to confirm successful operation.
