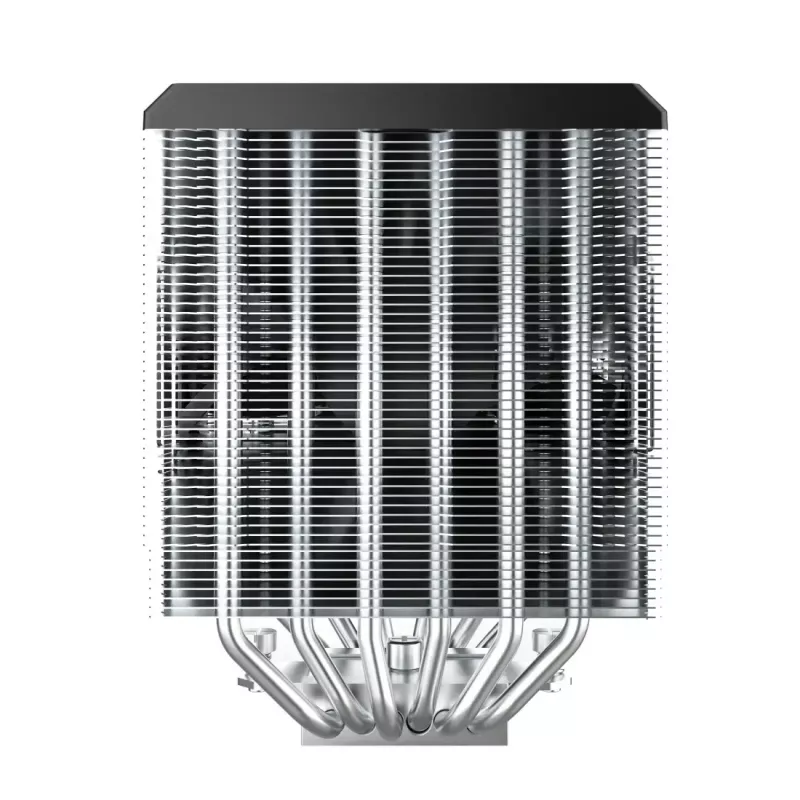

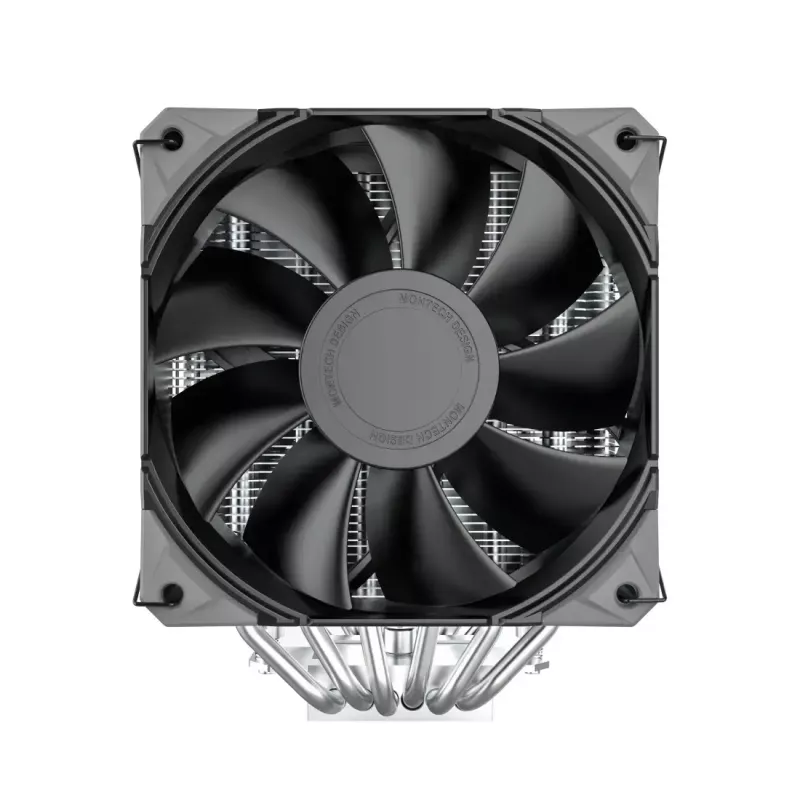

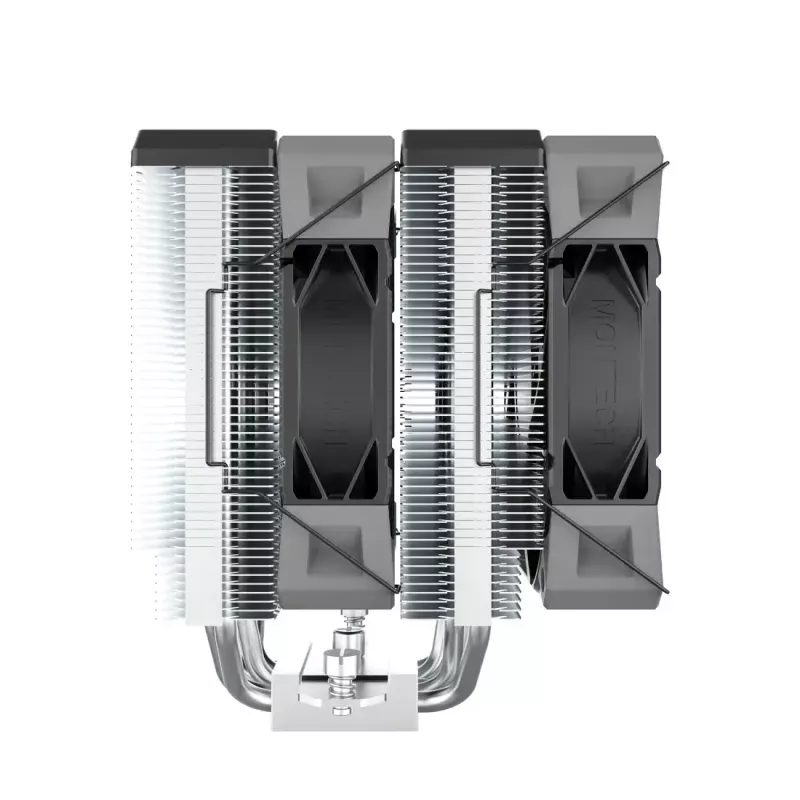

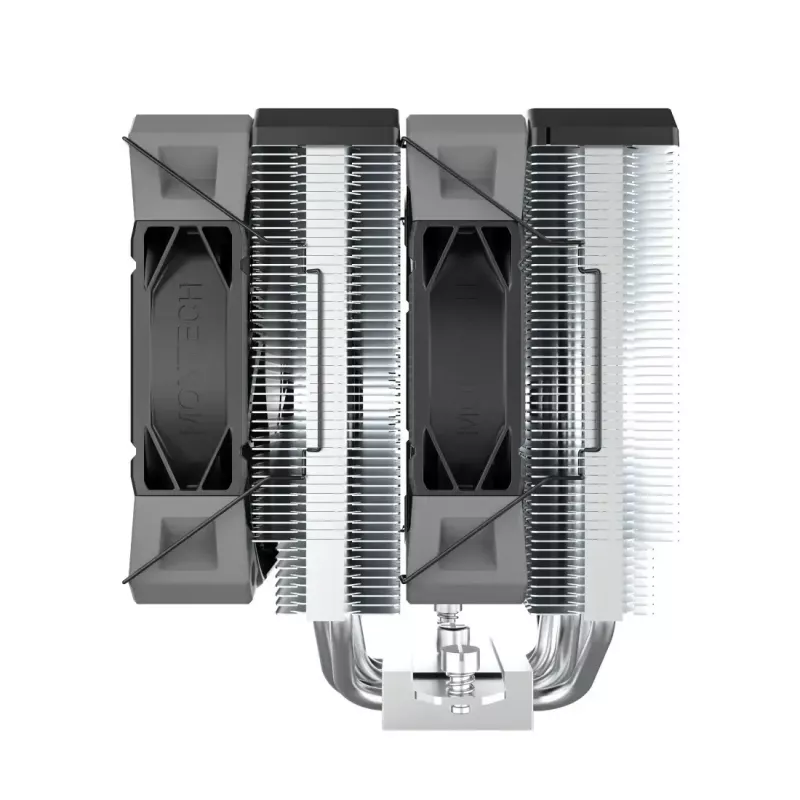

CPU cooler Montech NX600 black with 120 mm fan

Montech NX600 (Black) is an air cooler designed for desktop CPU cooling and system thermal management. The cooler features a 120 mm fan, Hydro Dynamic Bearing (HDB), a rated voltage of 12 V and variable speed from 800 to 2000 RPM. The unit measures approximately 120 × 132.5 × 160 mm overall, weighs 1.44 kg and supports modern sockets including AM5, AM4 and LGA1700, providing compatibility for a wide range of Intel and AMD desktop processors.

Advantages

The NX600 provides a dual-tower layout and a soldered copper base coupled with six heat pipes to improve heat transfer and expand dissipation surface. A 120 mm HDB fan with PWM control offers adjustable speed between 800 and 2000 RPM to balance cooling performance and acoustic levels. The cooler’s black finish and covered top provide a clean visual appearance while maintaining practical airflow and thermal performance. Compact dimensions and multi-socket support simplify installation and system upgrades.

Suitable for

• Desktop CPU cooling in mid- to high-performance systems
• Systems using socket AM5, AM4 or LGA1700
• Silent or controlled-noise builds that use PWM fan control
• Users needing reliable thermal management during gaming, content creation, or sustained workloads

Key specifications

• Type: Air cooler, dual-tower design with fin stacks and heat pipes
• Fan diameter: 120 mm
• Fan speed range: 800–2000 RPM (PWM)
• Bearing type: Hydro Dynamic Bearing (HDB)
• Rated voltage: 12 V
• Maximum air pressure: 3.35 mmH2O
• Dimensions (approx.): 120 × 132.5 × 160 mm (fan and cooler overall)
• Weight: 1.44 kg
• Colour: Black
• Heat transfer: six heat pipes with soldered copper base

How to use

Prepare the motherboard and CPU area according to the motherboard manual, apply appropriate thermal paste on the CPU heatspreader, and align the NX600 cooler over the socket. Secure the cooler using the supplied mounting hardware for the specific socket (AM5/AM4/LGA1700). Connect the PWM fan cable to the CPU fan header on the motherboard to enable variable speed control. After installation, verify clearances with RAM modules and nearby components to ensure the cooler does not interfere with other parts.

Recommendations

Use the motherboard BIOS or fan-control software to configure PWM curves that match your cooling and acoustic preferences. Periodically inspect and clean the fins and fan to maintain airflow; check mounting tightness after heavy transportation or over time to ensure continued contact and optimal heat transfer.
