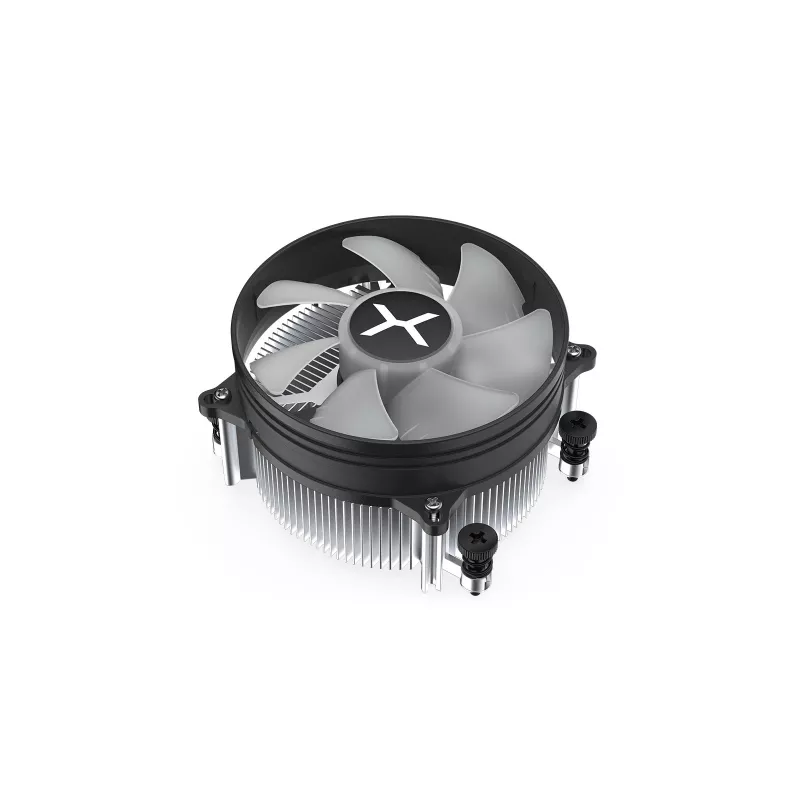

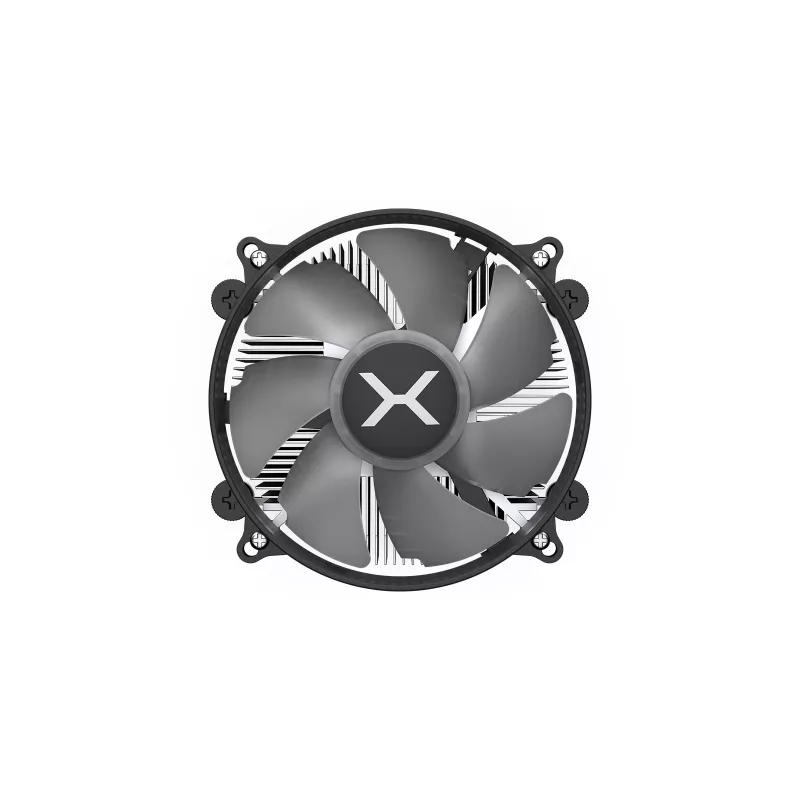

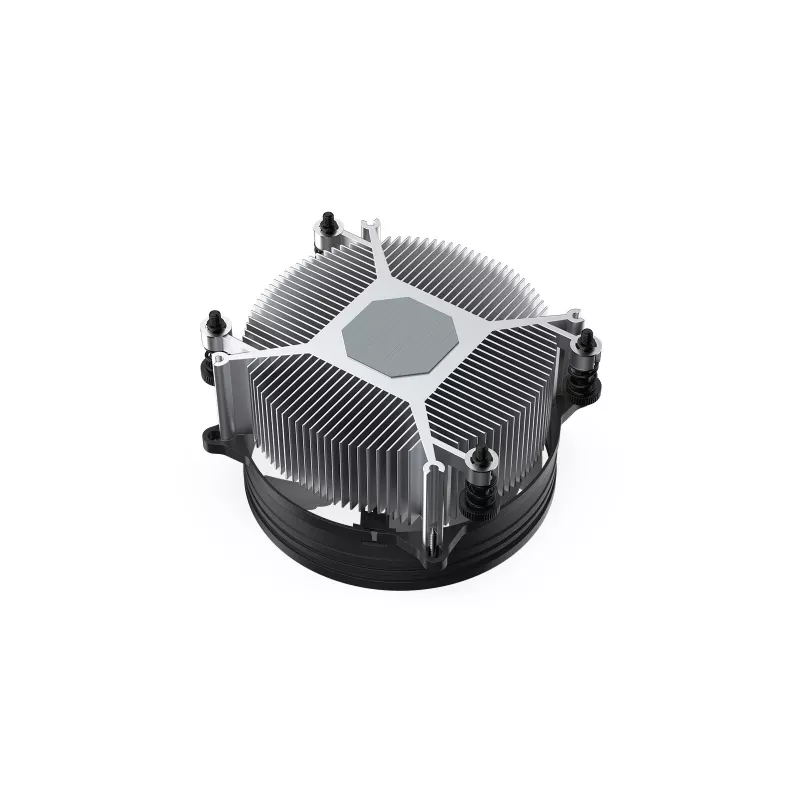

CPU cooler KRUX Integrator RGB KRX0093 with 120 mm PWM fan, ARGB lighting, 85 W TDP, AM4 support

KRUX Integrator RGB KRX0093 is a compact CPU cooler designed for PC systems. It combines an aluminium heatsink with a single 120 mm PWM fan that features hydraulic/fluid bearing and ARGB multicolour backlighting. The cooler is intended to provide cooling for processors with a TDP up to 85 W and is built for easy attachment to AM4 sockets.

Advantages

The cooler offers PWM-controlled fan speed from 1000 to 2800 RPM for adaptable airflow and noise balance, a fluid/hydraulic bearing for extended fan life, and ARGB lighting for customizable multicolour effects. Its aluminium heatsink provides effective heat dissipation while the compact dimensions and lightweight design simplify installation in a variety of PC builds.

Suitable for

• Home and office desktop PCs with AM4 motherboards
• Compact builds where a low-profile cooler is needed
• Systems with processors up to 85 W TDP

Key specifications

• Type: CPU cooler with single 120 mm fan
• Fan diameter: 120 mm (9.2 cm)
• Fan speed: 1000–2800 RPM (PWM)
• Fan bearing: Hydraulic / fluid bearing (HBS)

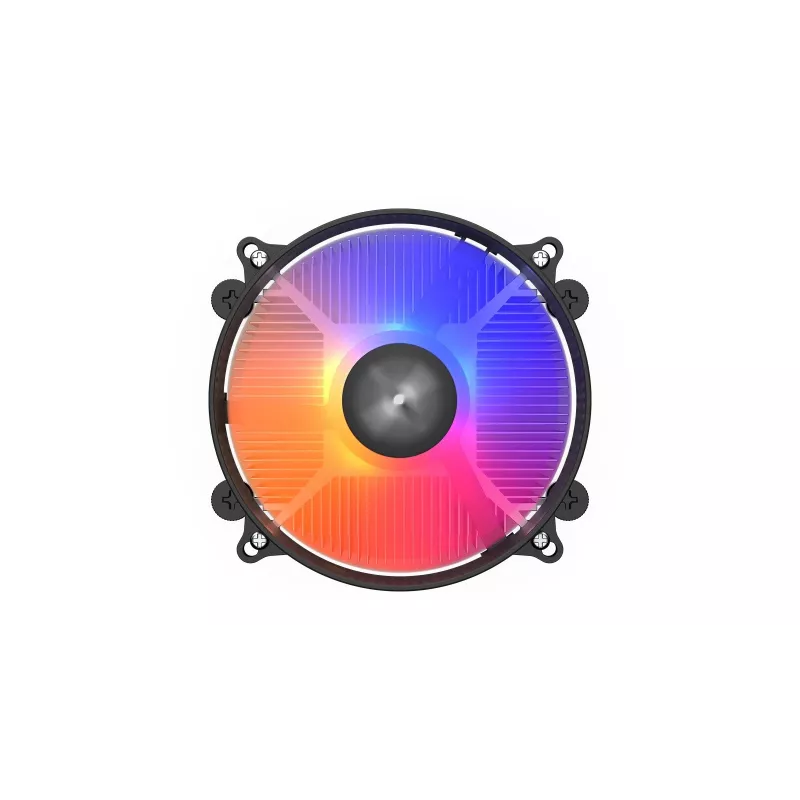

• Backlight: ARGB multicolour
• Connector: 4‑pin PWM
• Heat sink material: Aluminium
• Supported socket: AM4
• TDP rating: 85 W
• Weight: 360 g
• Dimensions (W×H×D): 102 × 95 × 57 mm

How to use

Mount the cooler onto an AM4-compatible motherboard following the motherboard and cooler mounting instructions. Connect the 4-pin fan connector to the CPU fan header on the motherboard to enable PWM control and ARGB lighting control to the appropriate header or controller. Ensure thermal paste is applied between the CPU heat spreader and the heatsink contact surface before final mounting. Verify correct seating and secure fasteners, then power on the system and confirm fan spin and lighting operation.

Recommendations

For optimal performance, use on processors with TDP up to 85 W and ensure the PC case provides sufficient airflow. Regularly check and clean the heatsink and fan to maintain cooling efficiency and monitor fan operation via motherboard software when available.
