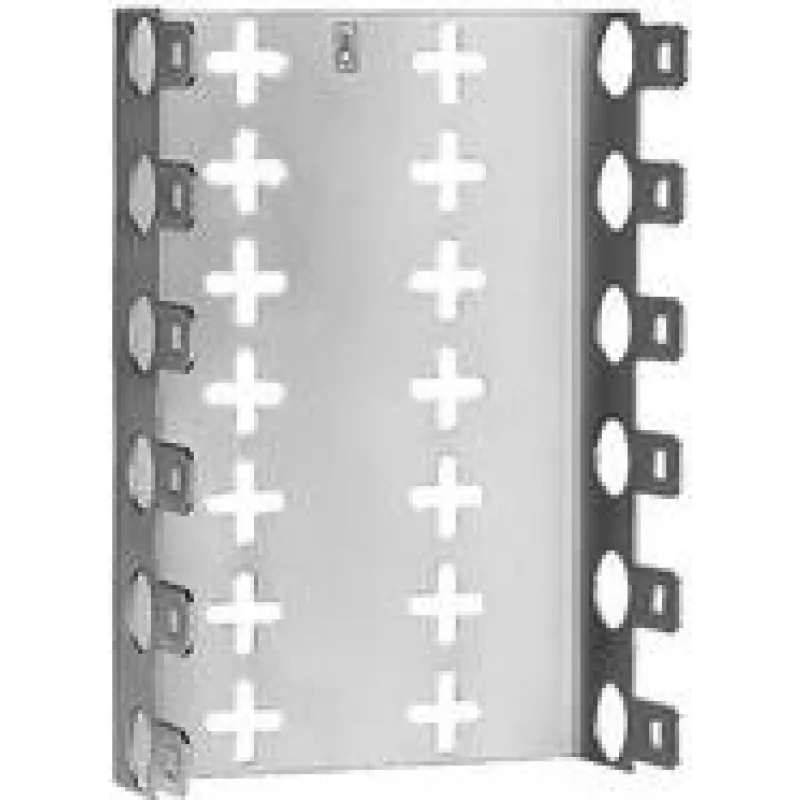

Corning 79151-513 25 LSA-Plus montage tray R27.5 T49 for 30+1 ports (DE620022165)

Corning 79151-513 25 LSA-Plus montage tray R27.5 T49 for 30+1 ports is a fiber termination and splice organizer designed for installations that require compact, modular patching and protection. The tray accepts LSA-Plus type modules and fits racks or distribution frames using R27.5 and T49 mounting dimensions. It provides managed cable routing, splice protection and orderly panel mounting for up to 30 service ports plus one additional adapter position.

Advantages

This montage tray is built for reliable mechanical protection of fiber terminations and splices while keeping a small footprint in telecommunication enclosures. The product supports plug-in LSA-Plus modules for modular expansion and simplifies cable routing with defined entry and bend control points. Materials and design reduce risk of stress on fibers and permit organized installation and maintenance.

Suitable for

• Wall-mounted or rack-mounted fiber distribution frames requiring a 30+1 port layout
• Telecommunications closets and MDF/IDF cabinets with R27.5 and T49 mounting standards
• Installations that use LSA-Plus modules for modular patching or adapter-based terminations
• Splice and termination points where compact, protected routing is needed

Key specifications

• Compatible module type: LSA-Plus style modules (plug-in)
• Port capacity: configured for 30 service ports plus one additional adapter position
• Mounting dimensions: supports R27.5 and T49 mounting patterns
• Functionality: supports both fiber termination and splice management
• Cable management: defined routing paths and bend control to protect fiber bend radius
• Panel mounting: designed for secure attachment in telecom racks and distribution frames

How to use

Install the montage tray into the rack or distribution frame using the specified R27.5 or T49 mounting points. Fit LSA-Plus modules into the tray’s module slots according to the required port layout. Route incoming and outgoing fiber cables through the designated entry guides, maintain minimum bend radius at the control points and secure fiber pigtails or jumpers in the splice/termination areas. Perform splicing or connector termination as required, then close any protective covers or retainers to prevent movement.

Recommendations

Follow standard fiber handling procedures: use appropriate bend-radius protection, label fibers and adapters for easy identification, and keep splice areas accessible for maintenance. Verify compatibility of LSA-Plus modules before installation and avoid exceeding recommended fiber counts to maintain serviceability.
