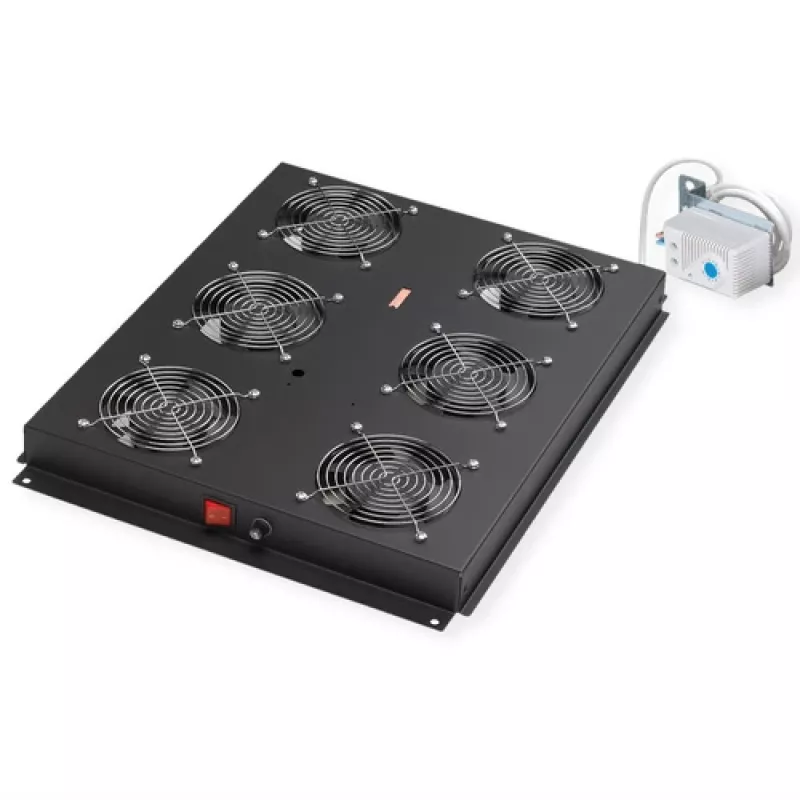

Cooling fan ROLINE 19-inch roof-mounted unit 6 fans Thermostat black

The ROLINE 19-inch roof-mounted unit with six fans and an adjustable thermostat provides targeted cooling for 19" enclosures. Housed in a robust steel casing and available in black (RAL 9005) and grey (RAL 7035), the unit measures approximately 530 mm (width) x 420 mm (depth) x 50 mm (height) and is designed to maintain optimal temperatures in server racks and network cabinets.

Advantages

The fan unit includes two sets of mounting brackets for flexible installation: a standard set for fixing to any rack height unit and a second set for mounting in the roof of ROLINE Pro and Basic 19" cabinets. An integrated switch and adjustable thermostat allow custom control of cooling behaviour. The steel housing ensures durability and stable mounting in data centre or communications environments.

Suitable for (tasks / use cases)

• Cooling server racks in small to medium server rooms
• Temperature control in 19" network cabinets
• Retrofitting additional ventilation in existing enclosures
• Equipment protection in telecommunication cabinets

Key specifications

• Model: ROLINE 19-inch roof-mounted unit, 6 fans, thermostat
• Brand: ROLINE
• MPN: 26.21.0109
• EAN: 7630049601109
• Housing: steel
• Dimensions (W x D x H): 530 x 420 x 50 mm
• Colours: black (RAL 9005) and grey (RAL 7035)

How to use

Choose the appropriate set of mounting brackets for your installation: use the standard set to attach the unit to a rack height unit or the roof set for installation in ROLINE Pro and Basic series cabinets. Secure the fan unit in place, connect the power according to the cabinet wiring, switch on the unit and set the thermostat to the desired temperature threshold. Monitor the rack temperature to confirm correct operation.

Recommendations

Install the fan unit in a properly grounded rack, ensure unobstructed air intake and exhaust paths, and regularly check the thermostat and fans for dust build-up to maintain cooling efficiency.
