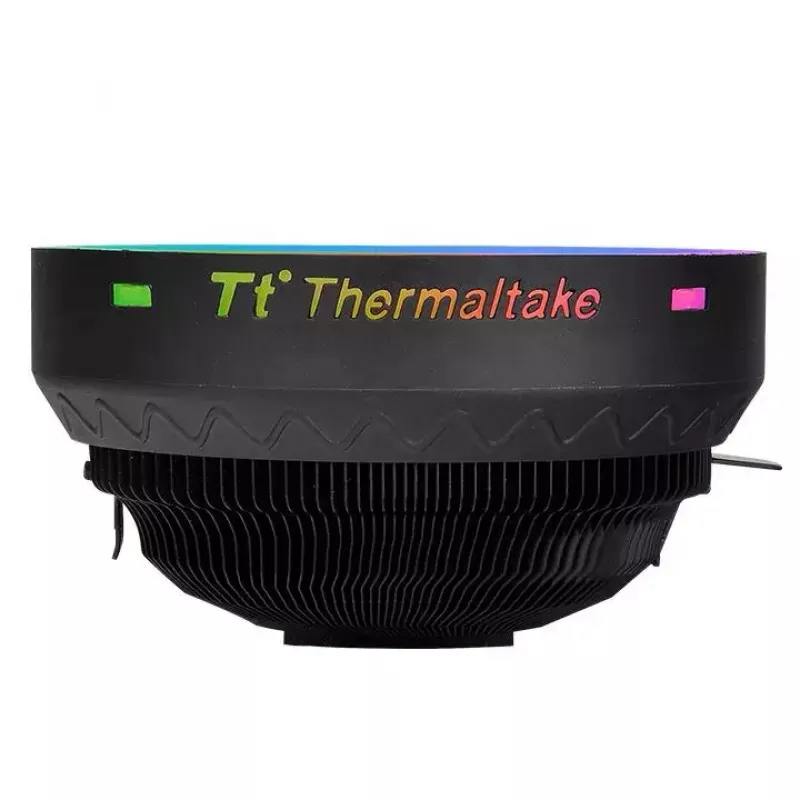

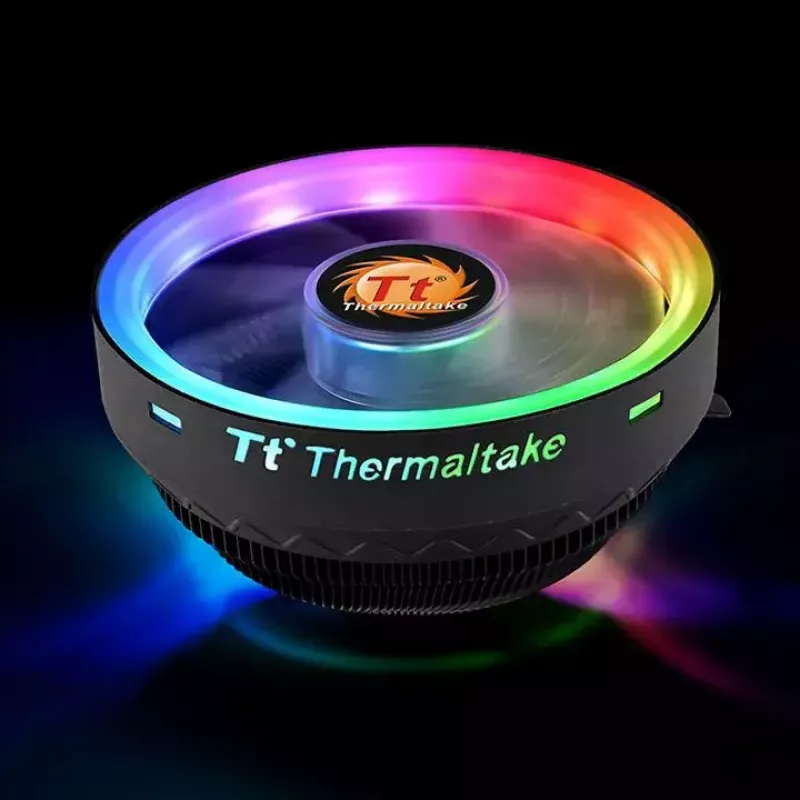

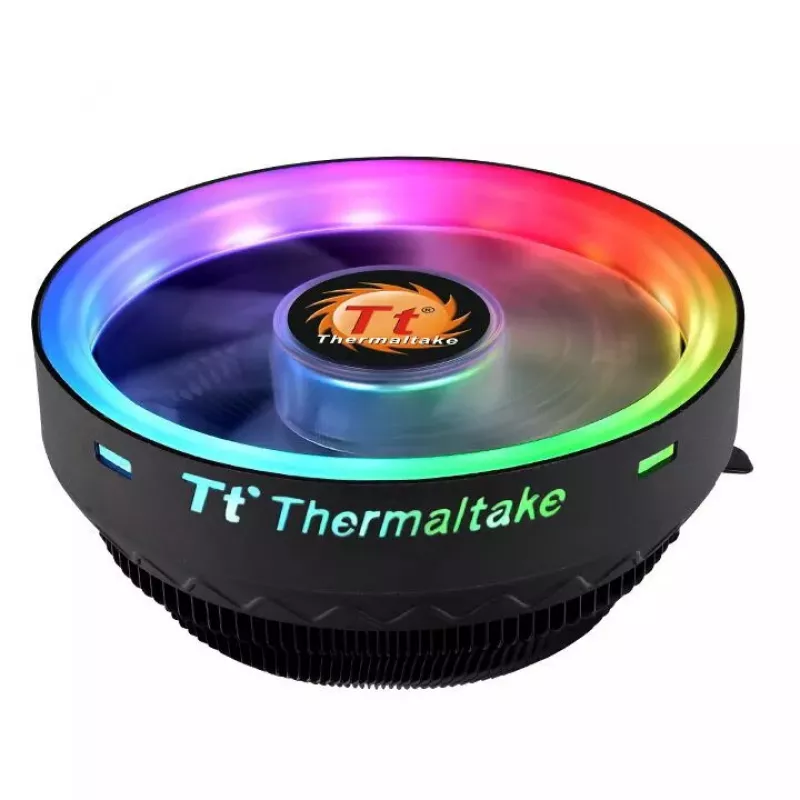

Cooler Thermaltake UX100 ARGB Lighting

Thermaltake UX100 ARGB Lighting is a compact CPU cooler with a 120 mm fan, 1800 RPM maximum speed and ARGB illumination. The cooler combines a 9-high airflow blade design and a hydraulic bearing fan to provide steady airflow and reduced noise. It supports synchronization with 5V addressable RGB headers on compatible ASUS, ASRock, GIGABYTE and MSI motherboards and fits a wide range of Intel and AMD CPU sockets.

Advantages

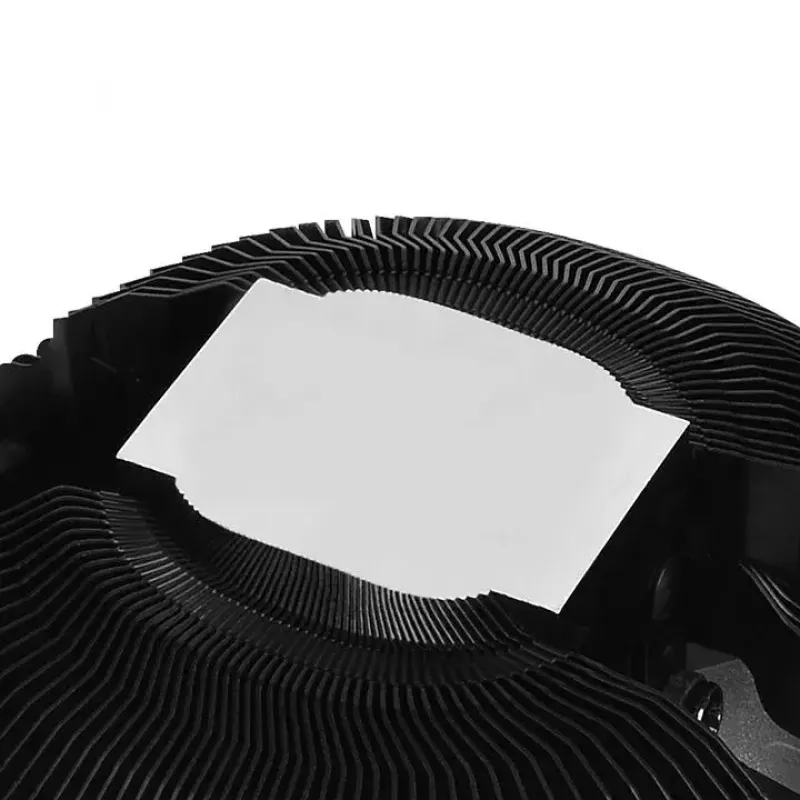

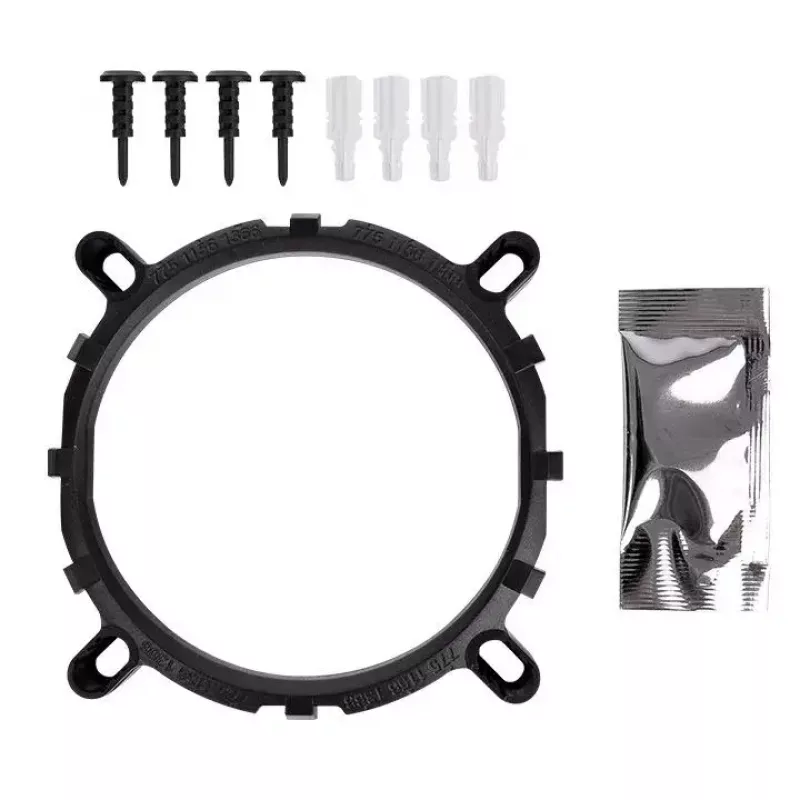

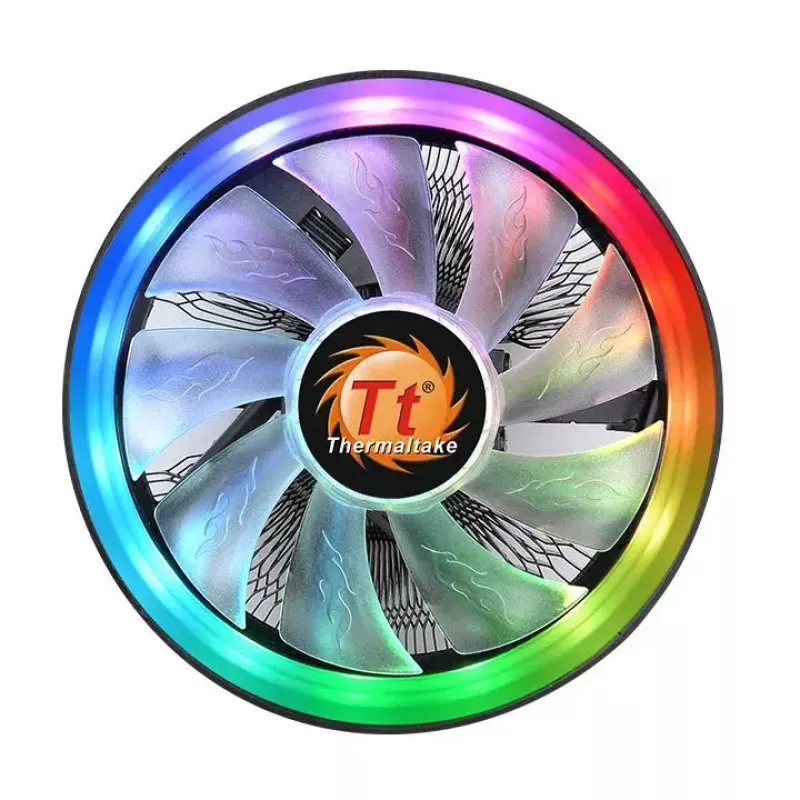

The UX100 offers 15 addressable LEDs capable of 16.8 million colors for customizable lighting effects. Its fan and aluminum heatsink are designed to move a high volume of air for improved cooling performance while the hydraulic bearing reduces friction and operational noise. The included all-in-one backplate and mounting kit make installation straightforward for supported sockets.

Suitable for

• Compact gaming and desktop PC builds that require ARGB lighting
• Systems using Intel LGA 775/1150/1151/1155/1156 sockets
• Systems using AMD Socket AM2/AM2+/AM3/AM3+/AM4/FM1/FM2
• Users who want motherboard-synced 5V ARGB illumination

Key specifications

• Model: Thermaltake UX100 ARGB Lighting (CL-P064-AL12SW-A)
• Fan diameter: 120 mm
• Maximum fan speed: 1800 RPM
• Lighting: 15 addressable ARGB LEDs, 16.8 million colors, 5V addressable header support
• Dimensions: 122.3 x 122.3 x 66.1 mm
• Weight: 0.41 kg
• Colour: Black
• Supported sockets: LGA 775, 1156, 1155, 1151, 1150; Socket AM2, AM2+, AM3, AM3+, AM4, FM1, FM2
• Manufacturer part number (MPN): CL-P064-AL12SW-A
• EAN: 4713227521598

How to use

Mount the UX100 using the supplied backplate and mounting kit following the included instructions for your CPU socket. Connect the fan power cable to the CPU fan or system fan header and plug the 5V ARGB connector into a compatible motherboard 5V addressable RGB header to enable synchronized lighting control via the motherboard software (ASUS Aura Sync, ASRock RGB LED, GIGABYTE RGB Fusion, MSI Mystic Light). Ensure the motherboard header is a 5V addressable header before connecting.

Recommendations

For reliable operation, verify socket compatibility and confirm your motherboard has a 5V ARGB header. Apply thermal paste between the CPU and cooler base as instructed, and ensure airflow inside the case is not obstructed for optimal cooling and lighting performance.
