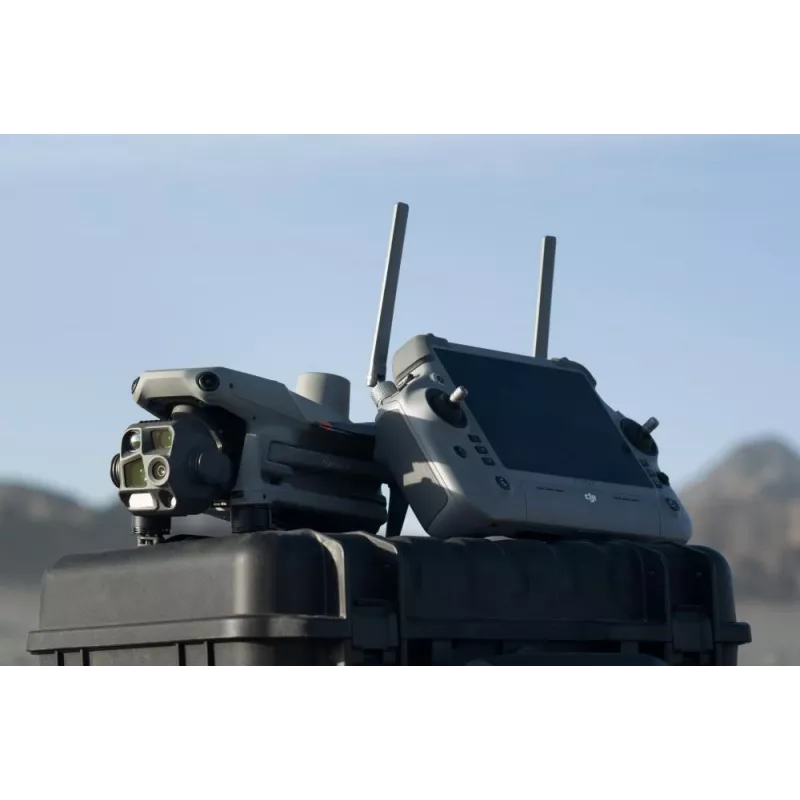

Control unit DJI RC Plus 2 Built-in battery 6500 mAh

DJI RC Plus 2 Enterprise features a high-brightness display that remains readable in strong sunlight and a built-in 6500 mAh lithium-ion battery for extended operation. The controller has an IP54 protection rating and functions in temperatures from -20°C to 50°C (-4°F to 122°F). Designed for compatibility with DJI Matrice 4 Series, the unit supports O4 Enterprise video transmission, an integrated high-gain antenna array, and both SDR and 4G hybrid transmission modes to maintain a stable video feed in urban and mountainous environments.

Advantages

The control unit combines a sunlight-readable high-bright display with long battery life provided by the 6500 mAh Li‑Ion cell, and an IP54 rating for dust and splash resistance. O4 Enterprise transmission, the built-in high-gain antenna array and SDR/4G hybrid support deliver stable, low-latency video links across varied environments. Compact construction and DJI compatibility simplify field integration with Matrice 4 Series drones.

Suitable for

• Professional drone operations with DJI Matrice 4 Series
• Outdoor inspections in bright sunlight
• Search and rescue or surveying in urban and mountainous areas
• Extended field missions requiring long controller runtime

Key specifications

• Battery: Built-in Lithium‑Ion, 6500 mAh
• Protection rating: IP54
• Operating temperature: -20°C to 50°C (-4°F to 122°F)
• Video transmission: O4 Enterprise, SDR and 4G hybrid support
• Compatibility: DJI Matrice 4 Series
• Colours: Black, Grey
• Manufacturer part number (MPN): CP.RC.00000031.01
• EAN: 6941565984197

How to use

Charge the DJI RC Plus 2 control unit fully before first use. Power on the controller and pair it with a compatible DJI Matrice 4 Series aircraft following DJI’s pairing procedure. Use the high-bright display outdoors to monitor flight telemetry and live video; choose SDR or 4G hybrid transmission as required by local conditions. Observe temperature limits and IP54 protection when operating in dusty or wet environments.

Recommendations

For reliable operation, keep the controller’s firmware up to date, store and charge the built-in 6500 mAh battery within recommended temperature ranges, and avoid prolonged exposure to heavy rain despite the IP54 rating. Use 4G hybrid transmission where line-of-sight is limited to improve video stability.
