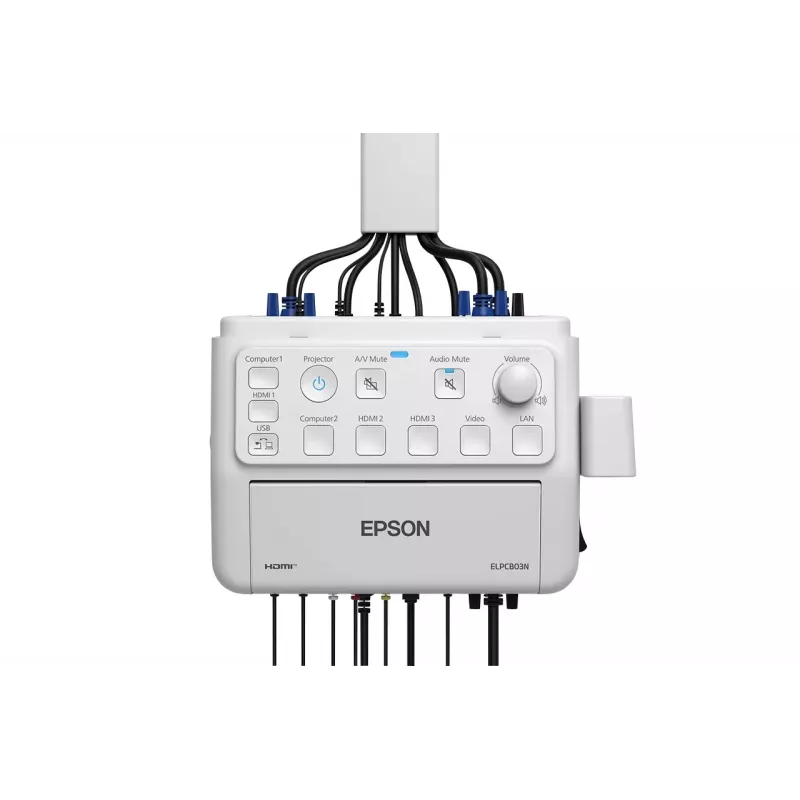

Connection and Control Box Epson ELPCB03N V12HB11040 with USB and HDMI ports

The Epson ELPCB03N connection and control box provides USB and HDMI connectivity to integrate Epson devices into audiovisual systems. Designed as a central interface for signal input and device control, it simplifies connections between projectors or displays and source devices while reducing cable clutter in meeting rooms, classrooms and fixed installations. The unit supports standard digital video and USB control pathways to enable stable transmission and straightforward system management.

Advantages

The connection box consolidates HDMI video input and USB control/communication in a single compact unit, allowing clean cable routing and easier access to ports. Its standardized HDMI interface maintains compatibility with common media sources, while USB connectivity enables control and peripheral connections without routing cables through the display device. The durable housing and straightforward port layout support reliable daily use in AV setups.

Suitable for

• Conference rooms and boardrooms where multiple source devices need fast connection
• Classrooms and lecture halls requiring simple AV control and content sharing
• Fixed installations in auditoriums or retail displays with concealed cabling
• Meeting spaces using Epson projectors or displays that require external I/O

Key specifications

• Interfaces: HDMI input for digital video and USB for control/data
• Form factor: compact control box designed for integration with projector or display installations
• Connectivity: straightforward port layout for easy cable access and management
• Compatibility: works with supported Epson display and projector models for signal routing and control

How to use

Connect an HDMI source device to the HDMI input on the connection box and connect the USB cable between the box and the Epson projector or display according to the device’s installation guide. Ensure all devices are powered off during initial cabling, then power on the system and select the appropriate input on the display or projector. Configure the display’s control settings if required to enable USB control and confirm video signal detection. For multi-device setups, route cables through cable management channels to maintain a tidy installation.

Recommendations

Use high-quality HDMI and USB cables of appropriate length to preserve signal integrity. Place the connection box where ports are accessible for maintenance but protected from physical damage. Follow the Epson device manual for control settings and firmware compatibility checks when integrating into existing AV systems.
