PC Case Corsair iCUE 7000X RGB Full Tower White

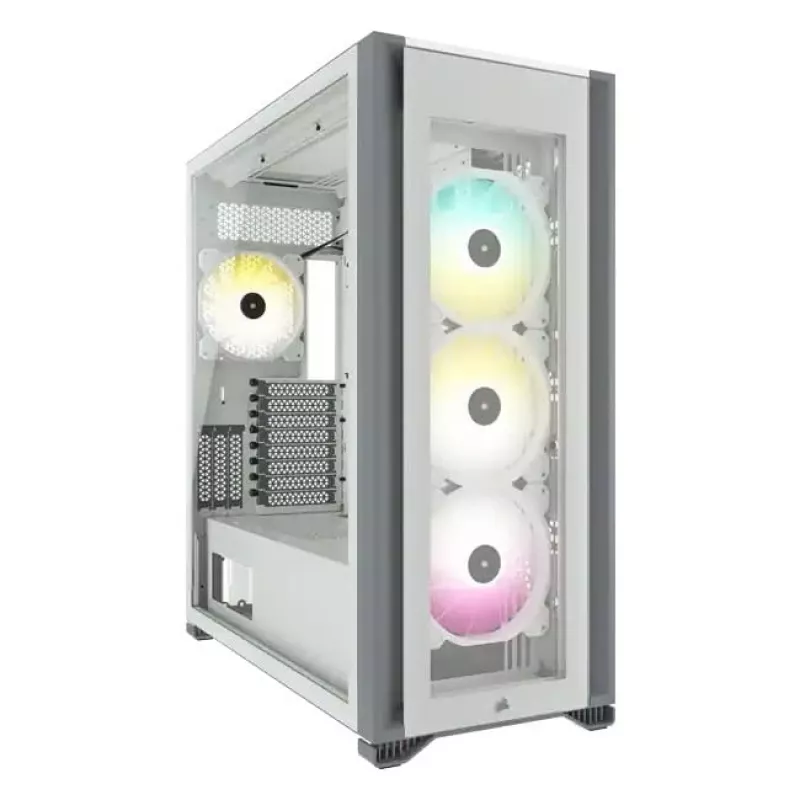

The CORSAIR iCUE 7000X RGB Full Tower in White is a spacious ATX case designed for high-end, expandable PC builds. With over 80 litres of internal volume and dimensions of 248mm (W) x 550mm (D) x 600mm (H), it accommodates large cooling setups, multiple storage drives and a bottom-mounted ATX power supply. Three tempered glass panels provide wide visibility of components, and four pre-installed CORSAIR SP140 RGB ELITE fans help establish baseline airflow.

Advantages

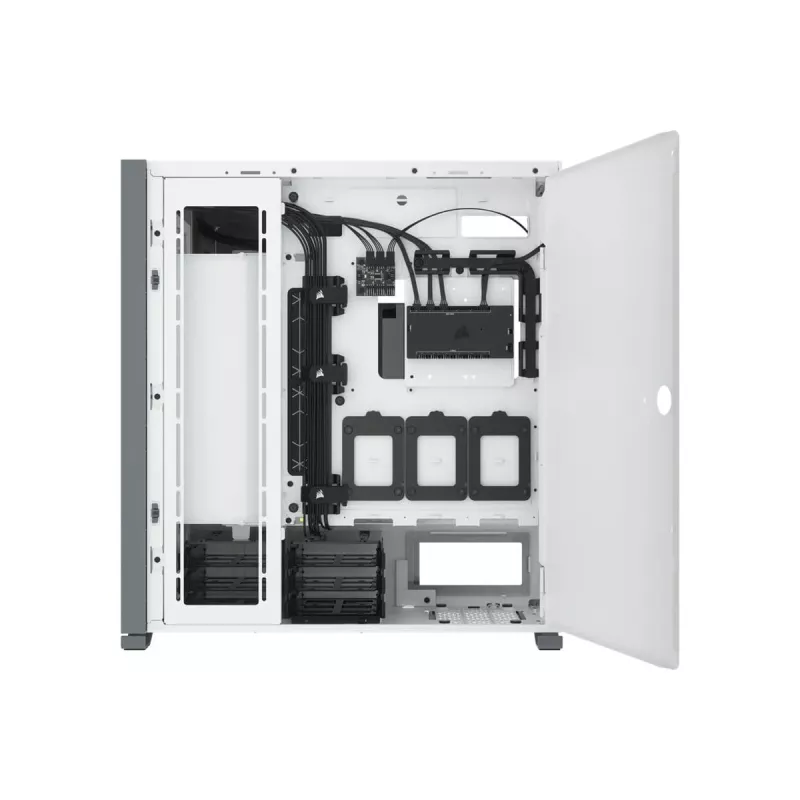

The 7000X RGB offers extensive cooling capacity—supporting up to 12x 120mm or 7x 140mm fans and multiple large radiators—along with flexible storage for up to six 3.5" drives and three 2.5" drives. Tool-free swing-out side panels, a removable customizable PSU shroud, a three-slot vertical GPU mount and CORSAIR RapidRoute cable management with 25mm clearance behind the motherboard simplify installation and cable routing. Integrated iCUE smart lighting and the included COMMANDER CORE XT provide centralized control for lighting, fan speed and temperature monitoring.

Suitable for

• High-performance gaming PCs with large GPUs
• Custom liquid-cooling loops including multiple 360mm radiators
• Workstations requiring many storage drives and strong cooling
• Showcase builds with tempered glass visibility and RGB lighting

Key specifications

• Form factor: Full Tower ATX
• Product colour: White
• Dimensions (W×D×H): 248 × 550 × 600 mm; volume: over 80 L
• Fan support: up to 12×120mm or 7×140mm; 4× SP140 RGB ELITE included
• Radiator support: up to three simultaneous 360mm (front/roof/side); up to two 420mm; side support for 480mm
• Drive bays: 6×3.5" and 3×2.5"
• GPU mounting: three-slot vertical GPU mount supported

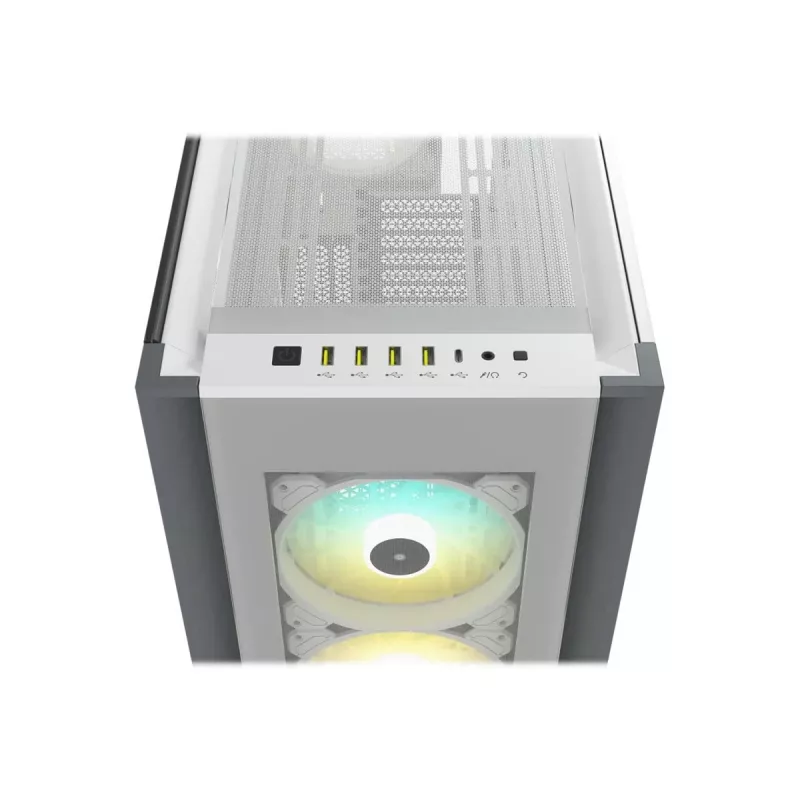

• Front I/O: 1× USB 3.1 Type-C, 4× USB 3.0, combo audio/mic jack
• Included controller: COMMANDER CORE XT (supports up to 6 fans; includes 2 temperature sensors)
• Weight (approx.): 19.8 kg

How to use

Install the ATX motherboard on the provided standoffs, route primary cables through the RapidRoute channel and mount storage in the dedicated 3.5" or 2.5" bays. Use the tool-free swing-out side panels for easier access while building. Fit fans and radiators according to your cooling plan; the case supports front, roof and side radiator placements including large 360mm and 420mm units. Connect fans and RGB devices to the COMMANDER CORE XT to configure lighting and fan curves via CORSAIR iCUE software.

Recommendations

For optimal airflow, use a combination of front intake and top or rear exhaust fans and plan radiator placement to avoid obstructing GPU airflow. Allow clearance for large GPUs when using the vertical mount, and use the 25mm cable routing space to keep the interior tidy for better cooling and presentation.
