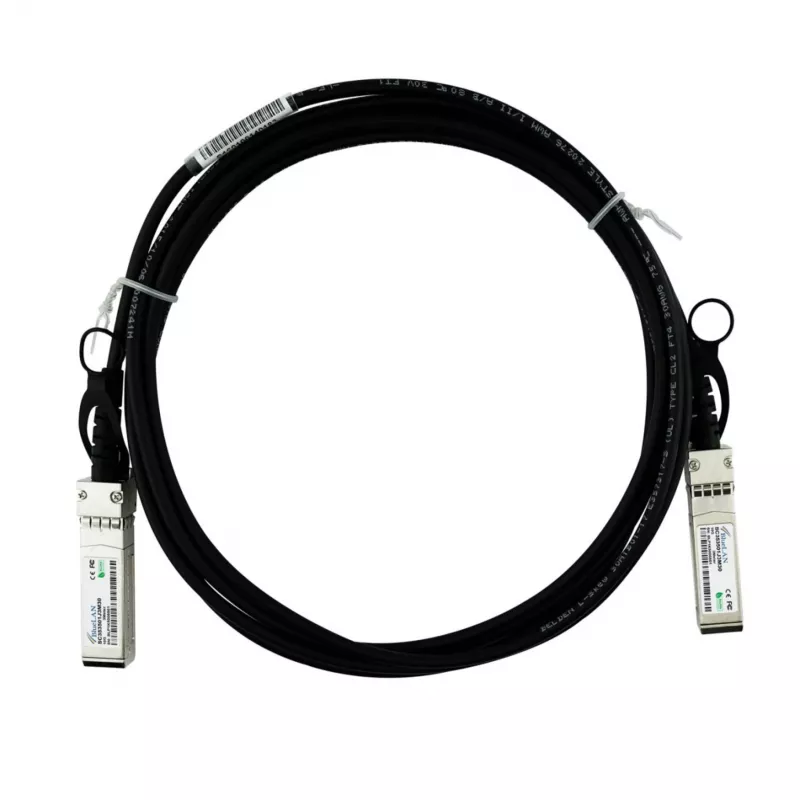

Compatible TP-Link TL-SM5220-1M BlueLAN 10GBASE-CR Passive SFP+ to SFP+ Direct Attach Cable 1m

The BlueLAN TL-SM5220-1M-BL is a high-performance, passive Direct Attach Copper (DAC) cable designed for 10 Gigabit Ethernet connections. It is fully compatible with TP-Link TL-SM5220-1M and other MSA compliant SFP+ ports, making it an ideal solution for data centers, server racks, and network switch interconnects.

Advantages

This passive DAC cable offers a cost-effective and low-power alternative to active optical cables and transceivers. With zero power consumption, it reduces overall energy costs while delivering reliable 10GbE performance. The 1-meter length is perfect for short-range connections within racks, minimizing cable clutter and improving airflow.

Suitable for

• Data center top-of-rack to server connections
• Network switch to switch or switch to storage area network (SAN) links
• High-speed interconnects in enterprise and cloud environments

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive Twinax
• Connectors: SFP+ to SFP+
• Data Rate: 10 Gbps (10GBASE-CR)
• Cable Length: 1 meter (3.3 feet)
• Wire Gauge: 30 AWG
• Jacket Material: PVC
• Impedance: 100 Ohm
• Hot-Swappable: Yes
• Power Consumption: 0W (Passive)
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both connected devices support SFP+ 10GBASE-CR and are MSA compliant. This cable is plug-and-play; no configuration required. Ideal for short-distance, high-speed links within racks or adjacent racks.
