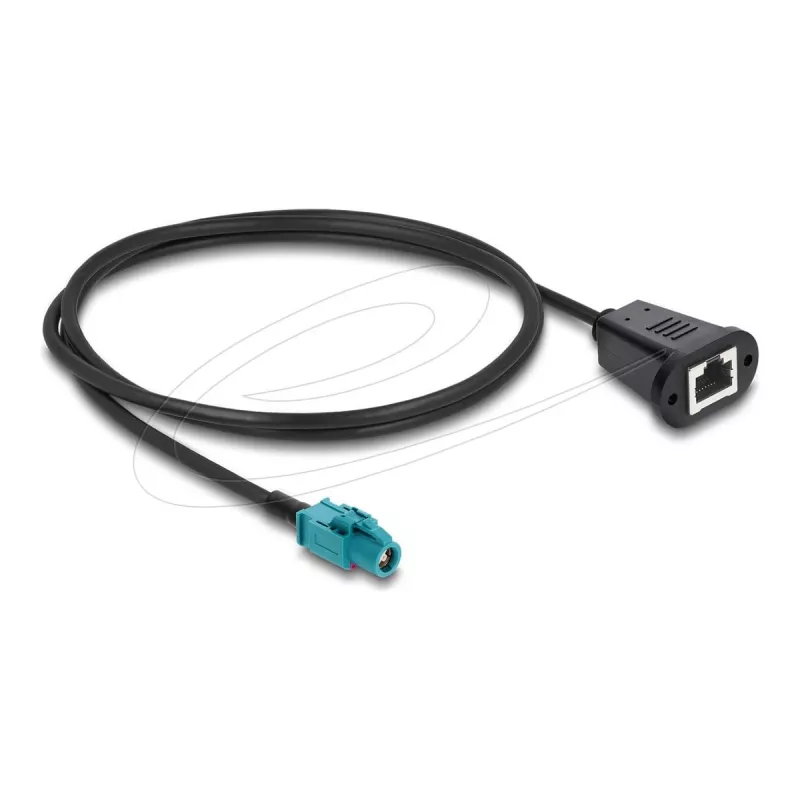

Coaxial cable DELOCK 90700 — 1 m, HSD Z to RJ-45, black/blue

This cable by Delock is a 1 m coaxial connection lead with an HSD Z female straight connector on one end and an RJ-45 female straight connector on the other. It is supplied as a single piece in a polybag and is intended for connecting electronic components and devices, including use in vehicles and equipment cabling where an HSD Z to RJ-45 interface is required.

Advantages

The Delock 90700 cable combines a compact 1 m length with two different connector types (HSD Z female straight and RJ-45 female straight), enabling direct interfacing between devices that require 100 Ω coaxial signal integrity. The black/blue jacket provides clear visual identification while the single-piece supply in a polybag simplifies storage and handling.

Suitable for

• Connecting in-vehicle electronic modules to network or interface adapters
• Equipment cabling where HSD Z to RJ-45 conversion is needed
• Short-distance signal routing within electronic enclosures

Key specifications

• Length: 1 m
• Colour: Black, Blue
• Connector A: HSD Z Female Straight
• Connector B: RJ-45 Female Straight
• Impedance: 100 Ω
• Manufacturer: DELOCK
• MPN: 90700
• EAN: 4043619907007

How to use

Connect the HSD Z female straight end to the corresponding HSD Z male connector on the device or cable assembly and plug the RJ-45 female straight end into the mating RJ-45 male connector or adapter. Ensure connectors are aligned and fully seated to maintain proper electrical contact. Route the cable to avoid sharp bends and mechanical strain.

Recommendations

Use this cable for short, internal connections or vehicle installations where an HSD Z to RJ-45 pairing is specified; avoid exposure to excessive heat, moisture, or abrasive surfaces. Verify compatibility of signal types and impedance (100 Ω) before installation.
