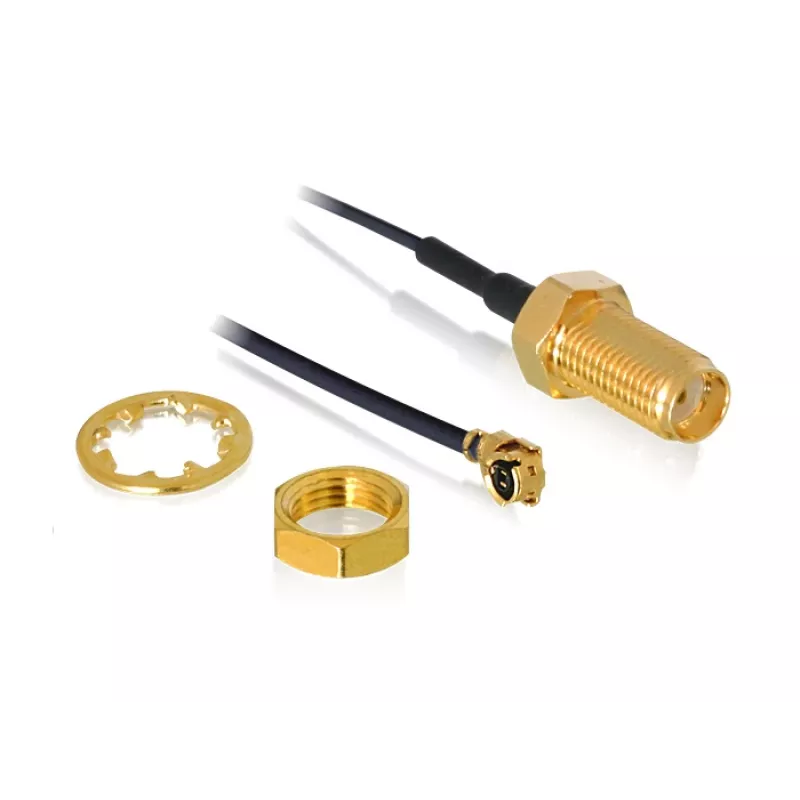

Coaxial Cable DeLOCK 88824 0.35 m MHF (I-PEX) RF SMA Black

The DeLOCK 88824 coaxial cable is a 0.35 m RF connection cable with an RF SMA jack bulkhead on one end and an MHF (I-PEX) / U.FL-LP-088-compatible plug on the other. It is a 50 Ohm coaxial cable with a 1.37 mm diameter and a 10 mm winding length, designed for transmitting radio frequency signals up to 6 GHz in compact or space-constrained installations.

Advantages

The cable combines a standard RF SMA bulkhead connector with an MHF (I-PEX) plug, enabling connection between devices that use these common RF interfaces. Its short 350 mm length and slim 1.37 mm coax make routing in tight spaces easier, while the 50 Ohm impedance and support up to 6 GHz ensure compatibility with many RF modules and antennas.

Suitable for

Key specifications

How to use

Align the MHF (I-PEX) plug with the corresponding socket on the RF module and press gently until it clicks into place. Fit the RF SMA bulkhead into the panel or mating SMA connector and secure it if required. Avoid excessive bending or pulling near the connector ends; maintain the specified winding length when routing to preserve signal integrity.

Recommendations

For best performance, use this 50 Ohm coaxial cable for connections within its rated frequency (up to 6 GHz) and avoid repeated disconnects at the MHF (I-PEX) plug to prevent wear. Route the cable with gentle curves and minimise sharp bends to maintain impedance and reduce signal loss.
