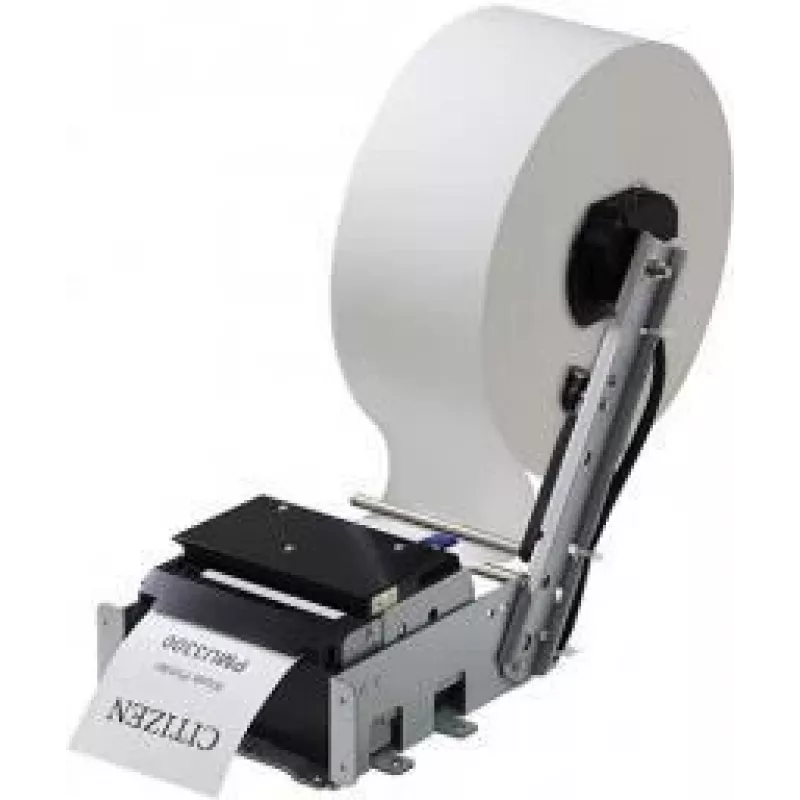

Citizen PMU-3300 3 Inch Kiosk Printer USB & RS232 Serial, 203 dpi, Cutter

The Citizen PMU-3300 is a compact and reliable 3-inch direct thermal kiosk printer designed for unattended printing applications. With both USB 2.0 and RS232 serial connectivity, it integrates seamlessly into kiosks, ticketing machines, and POS systems. The built-in auto cutter (partial cut) ensures clean, professional receipts. Featuring a print resolution of 203 dpi (8 dots/mm) and a maximum speed of 150 mm/s, it delivers crisp, fast output for labels, tickets, and receipts.

Advantages

Robust panel-mount design for easy integration into kiosks and cabinets. Supports a wide range of media widths (30-80 mm) and roll diameters up to 150 mm externally. Long-life print head (100 km) and cutter (1,000,000 cuts) reduce maintenance. Compatible with ESC/POS emulation for easy software integration.

Suitable for

• Kiosk and self-service terminals
• Ticketing and queue management systems
• POS and retail receipt printing
• Label and ticket printing in industrial environments

Key specifications

• Print Technology: Direct Thermal
• Resolution: 203 dpi (8 dots/mm)
• Max Print Speed: 150 mm/s
• Max Media Width: 80 mm
• Min Media Width: 30 mm
• Max Roll Diameter: 80 mm (internal) / 150 mm (external)
• Connectivity: USB 2.0, RS232 Serial
• Auto Cutter: Yes (Partial Cut)
• Emulation: CUSTOM / POS (ESC/POS compatible)
• Power Supply: 24 VDC (sold separately)
• Print Head Life: 100 km
• Cutter Life: 1,000,000 cuts
• Barcode Support: 1D & 2D (UPC-A, EAN13, QR Code, PDF417, DataMatrix)
• Sensors: Paper End, Paper Near End, Head Temperature, Cover Open
• Mounting: Panel Mount
• Operating Temperature: 0°C to 50°C

Recommendations

Power supply and power cable must be ordered separately. For optimal performance, use genuine Citizen thermal paper rolls.
