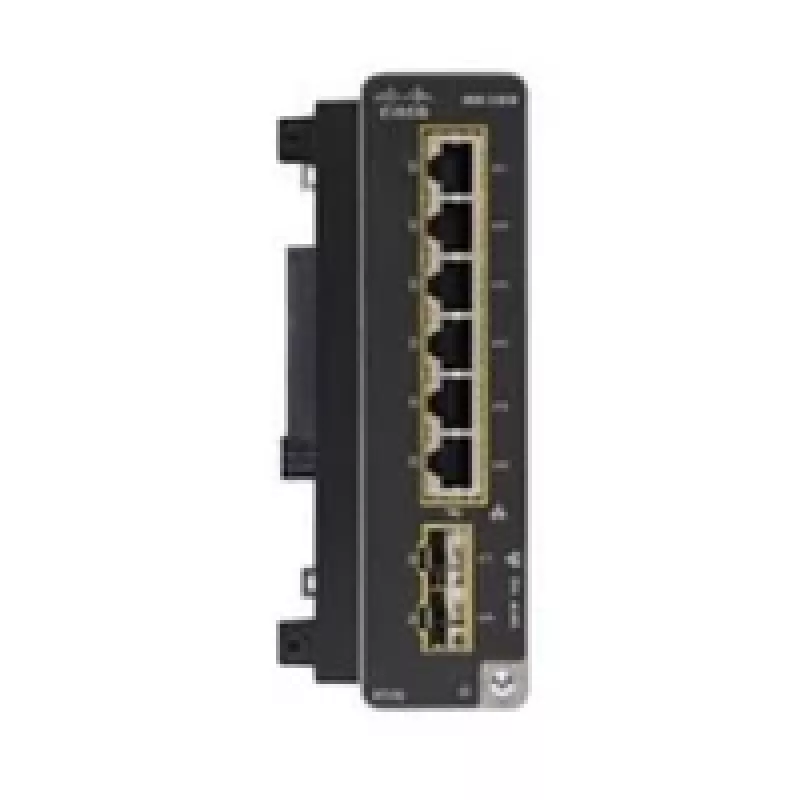

Cisco Catalyst IE3300 network switch module Gigabit Ethernet IEEE standards

The Cisco Catalyst IE3300 Rugged Series is a compact industrial network switch module providing up to 10 Gigabit Ethernet connectivity and modular expansion options. Designed for industrial IoT and extended enterprise deployments, the IE3300 supports up to 26 Gigabit ports or up to 24 Gigabit ports plus 2x 10 Gigabit ports depending on expansion modules. Built for harsh environments such as manufacturing, energy, transportation, mining, smart cities, oil and gas, warehouses and outdoor sites, the platform combines hardened hardware with Cisco IOS XE software, providing secure boot, image signing and the Cisco Trust Anchor Module. The module dimensions are approximately 152 mm (W) x 66 mm (D) x 135 mm (H) with typical power consumption around 9 W and support for multiple IEEE networking standards.

Advantages

The IE3300 offers flexible modular expansion, up to 10G uplinks, and PoE support to power IP cameras, phones, wireless access points and sensors. Running Cisco IOS XE, it provides built-in security features, API-driven configuration and integration with management tools such as Cisco DNA Center and the WebUI setup tool. Edge compute support for IOx applications and compatibility with the Cyber Vision sensor enable on-device industrial visibility and OT security monitoring. Full Flexible NetFlow support offers real-time traffic visibility for threat analysis.

Suitable for

• Industrial IoT networks in manufacturing and energy
• Transportation, mining and oil & gas environments
• Smart city infrastructure and outdoor deployments
• Warehouses, distribution centers and extended enterprise sites
• Deployments requiring PoE to power IP devices

Key specifications

• Model family: Cisco Catalyst IE3300 Rugged Series (MPN: IEM-3300-6T2S=, EAN: 889728205016)
• Ports: modular expansion up to 26× Gigabit Ethernet or up to 24× Gigabit + 2× 10G
• Ethernet speeds: up to 10 Gigabit Ethernet
• Power: typical consumption ~9 W; PoE/PoE+/PoE++ support with budgets up to 360 W (Gigabit series) or 480 W (10G series) depending on model and expansion modules
• Standards: multiple IEEE Ethernet standards supported
• Software: Cisco IOS XE with secure boot, image signing, Trust Anchor Module, API-driven configuration
• Dimensions (approx.): 152 mm × 66 mm × 135 mm

How to use

Install the IE3300 switch module in a suitable industrial enclosure or rack according to Cisco installation guidelines, select and fit expansion modules as required for the desired port density and 10G uplinks, and connect power and network cabling. Use the WebUI for initial setup or integrate the device into Cisco DNA Center for centralized management. Configure network policies, PoE budgets and security features through Cisco IOS XE or supported APIs. Deploy IOx applications and enable Cyber Vision sensor where industrial visibility or OT monitoring is required.

Recommendations

For reliable operation in harsh environments, follow Cisco’s environmental and mounting specifications, keep firmware updated to benefit from security enhancements, and plan PoE budgets according to connected device requirements. Use Cisco management tools for visibility and threat analysis and validate expansion module compatibility with your chosen IE3300 model before installation.
