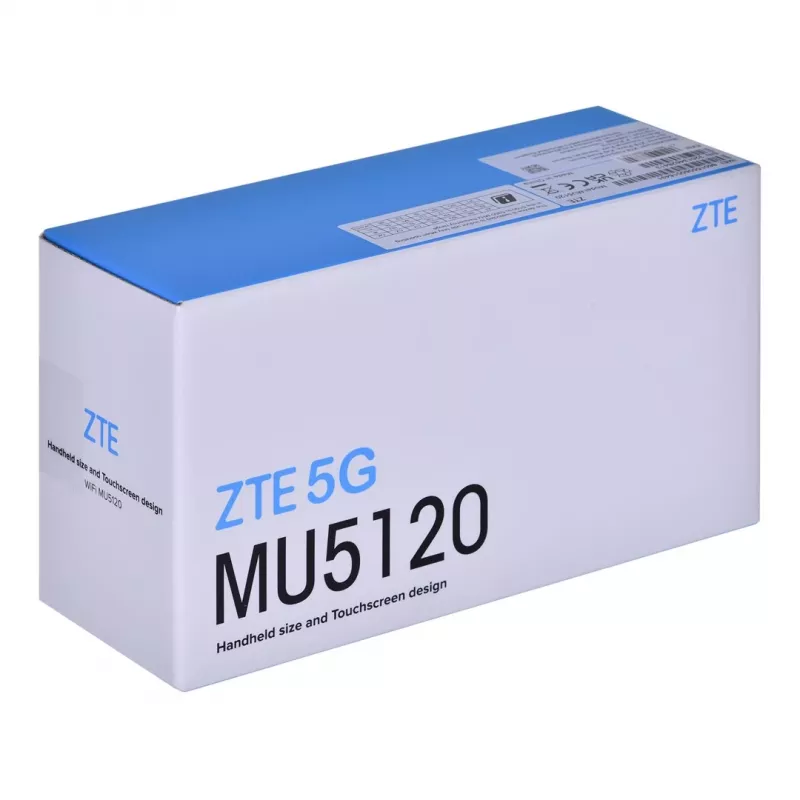

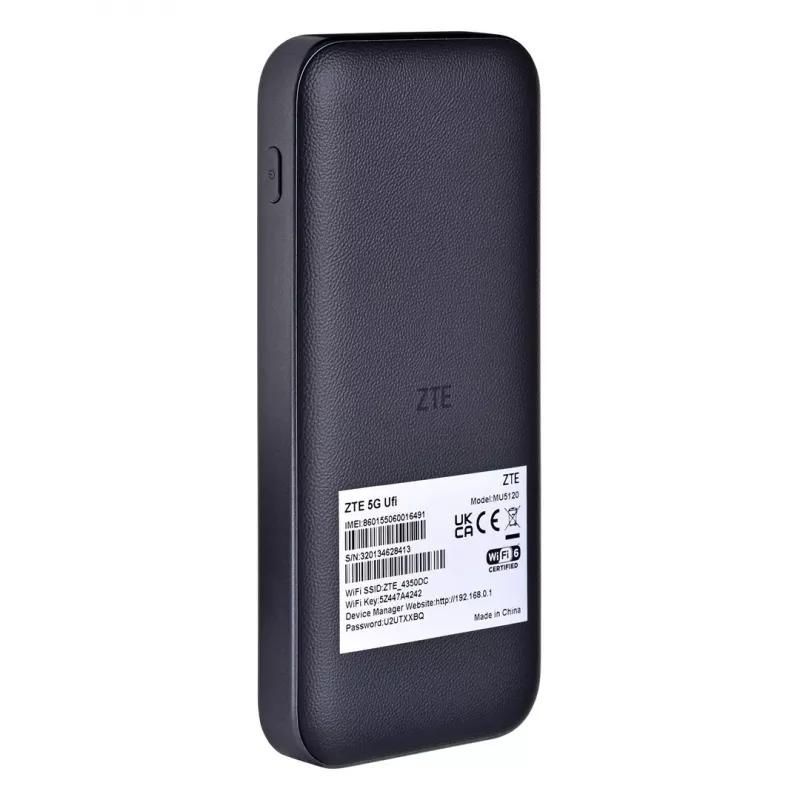

Cellular modem ZTE MU5120 5G — touchscreen, 9800 mAh battery, Qualcomm SDX62, dual-band Wi‑Fi, up to 64 devices

The ZTE MU5120 is a portable 5G cellular network modem with integrated Wi‑Fi 6 (802.11ax) that delivers high-speed mobile internet access. Powered by the Snapdragon X62 platform built on 4nm process technology and compliant with 3GPP Release 16, the MU5120 provides upgraded computing performance and improved overall data throughput. Its compact black housing and battery operation make it suitable for on-the-go use and temporary installations where wired broadband is unavailable.

Advantages

The MU5120 supports dual‑mode 5G (NSA and SA) for broad compatibility across modern networks and enables automatic switching between 5G and 4G for continuous connectivity. Carrier aggregation (CA) and ENDC support increase spectral efficiency, raise user data rates, reduce latency and extend coverage into suburban and rural areas. Built‑in Wi‑Fi 6 offers AX3600 performance with a peak combined rate up to 3600 Mbps and simultaneous connectivity for up to 64 users, providing fast local wireless access.

Suitable for

• Mobile internet for remote work and travel
• Temporary sites and events requiring high‑speed wireless access
• Small offices or homes without fixed broadband
• Backup internet where reliable failover is needed

Key specifications

• Model: ZTE MU5120
• Platform: Snapdragon X62 (4nm, 3GPP Release 16)
• Cellular: 5G dual mode (NSA/SA), supports carrier aggregation and ENDC
• Wi‑Fi: Wi‑Fi 6 (802.11ax), AX3600, peak rate up to 3600 Mbps, up to 64 simultaneous users
• Power: battery powered, typical consumption 33 W
• Dimensions: 159 × 73 × 18 mm
• Colour: Black

How to use

Insert a compatible SIM card and charge or connect the MU5120 to a power source. Power on the device and follow the on‑screen or companion app instructions to complete initial setup and network selection. Connect client devices via Wi‑Fi 6 using the network name and password printed on the device or configured in the web/app interface. The modem will automatically select available 5G/4G networks and perform carrier aggregation or ENDC where supported by the operator.

Recommendations

Place the MU5120 in a location with good cellular signal for best performance; avoid obstructed or enclosed spaces. For optimal local wireless coverage, position the device centrally in the area of use and keep firmware updated to benefit from improvements in network compatibility and stability.
