Ceiling Mount Multibrackets M Public Small Single White 1500 14 kg 10-32 inch

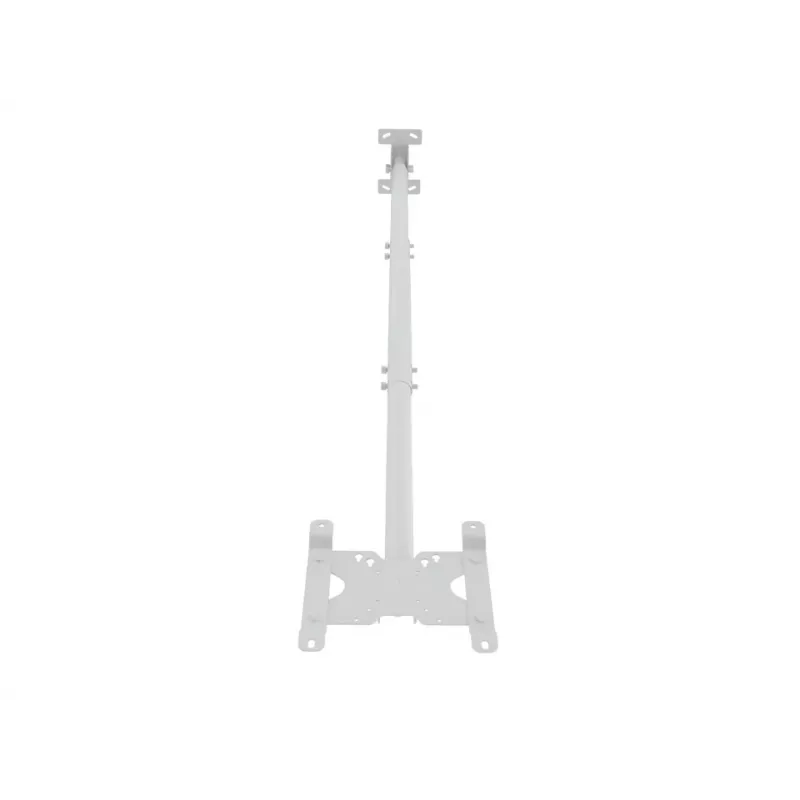

The Multibrackets M Public Ceilingmount Small Single White 1500 is a flat-panel ceiling mount designed for displays from 10 to 32 inches with a maximum load capacity of 14 kg. It supports VESA patterns from 50x50 up to 200x200 and offers height adjustment between 550 and 1500 mm. The mount includes tilt and swivel functions and is intended for public and commercial ceiling installations where a compact, robust solution is required.

Advantages

This ceiling mount provides versatile compatibility with a wide range of VESA standards and small displays, integrating height, tilt and swivel adjustments for flexible positioning. Constructed for durability, it comes with the necessary accessories for installation and a white finish that blends into light-coloured interiors.

Suitable for

• Digital signage in retail and hospitality
• Public information displays in transport hubs
• Small TV installations in meeting rooms and waiting areas
• Compact display setups in schools and offices

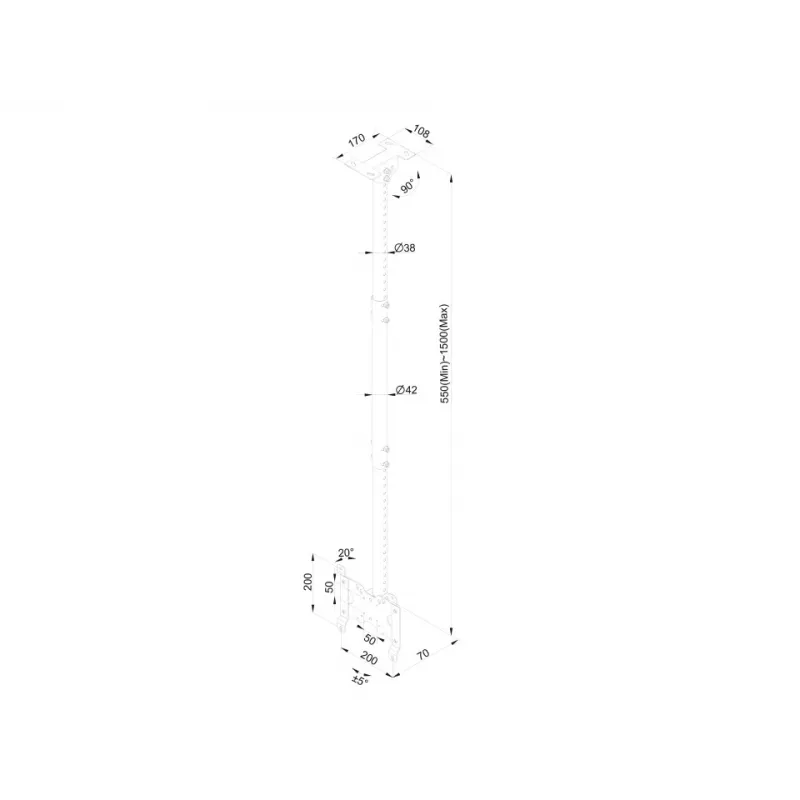

Key specifications

• Supported screen size: 10–32 inches
• Maximum weight capacity: 14 kg
• Maximum VESA mount: 200 x 200 (supports 50x50 up to 200x200)
• Height adjustment: 550–1500 mm
• Tilt: -5° to 15°
• Swivel: 90°
• Product colour: White
• Product weight: 4.2 kg
• Number of displays supported: 1

How to use

Attach the ceiling bracket securely to a structural ceiling point following the included mounting instructions and local building codes. Mount the VESA adapter to the display using the appropriate screws, then hang the display on the ceiling column and secure it. Adjust the height within the 550–1500 mm range and set the tilt (-5° to 15°) and swivel (up to 90°) to achieve the desired viewing angle. Verify all fastenings and cable routing before leaving the installation.

Recommendations

Ensure the ceiling structure can support the combined weight of the mount and display (maximum 14 kg). Use appropriate fixings for the ceiling material and follow local safety regulations. Periodically check mount fastenings and adjust as needed to maintain safe operation.
