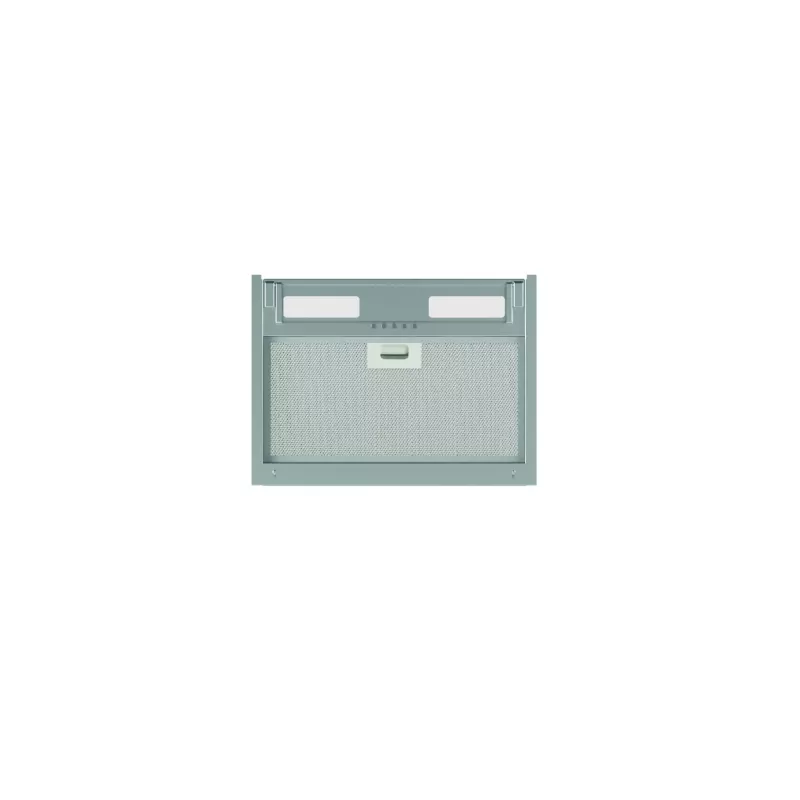

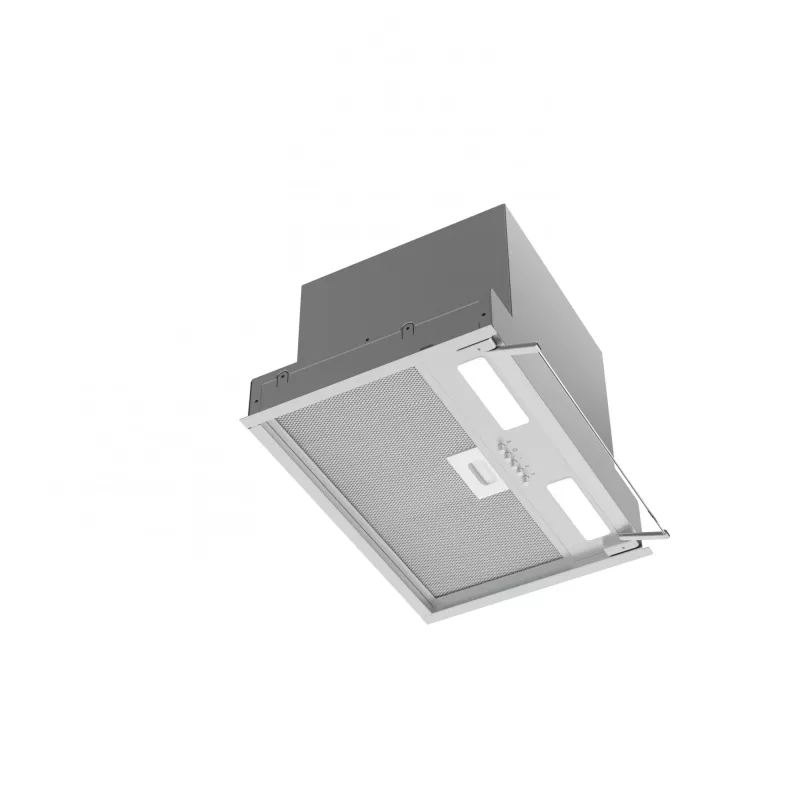

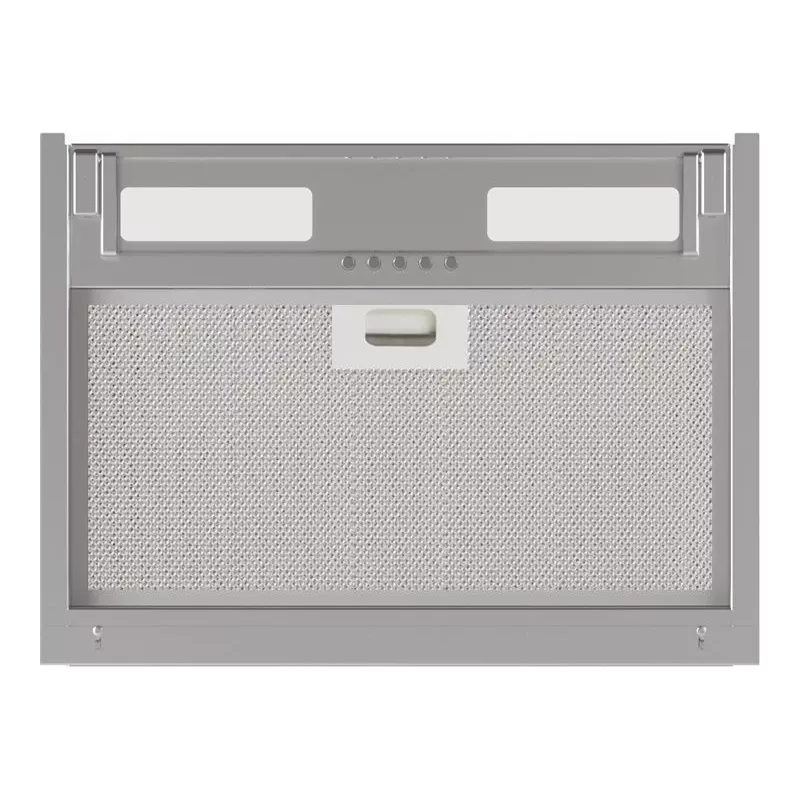

CATA ARMONIA 45 X Built-in Stainless Steel 645 m³/h

The CATA ARMONIA 45 X built-in stainless steel cooker hood offers up to 645 m³/h extraction capacity suitable for both ducted and recirculating installations. It has a compact 448 mm width, a brushed stainless steel finish and button controls. The hood uses an aluminium grease filter and an energy-efficient 6 W LED light; annual energy consumption is 101 kWh.

Advantages

The stainless steel construction provides a durable, easy-to-clean surface while the aluminium grease filter captures airborne grease. Button controls are simple to operate and three fan speeds allow basic adjustment of airflow. Integrated LED lighting improves visibility over the cooking area with low power consumption.

Suitable for

• Small to medium kitchens requiring a built-in hood
• Installations with ducted or recirculating ventilation
• Spaces where a compact 448 mm width is needed

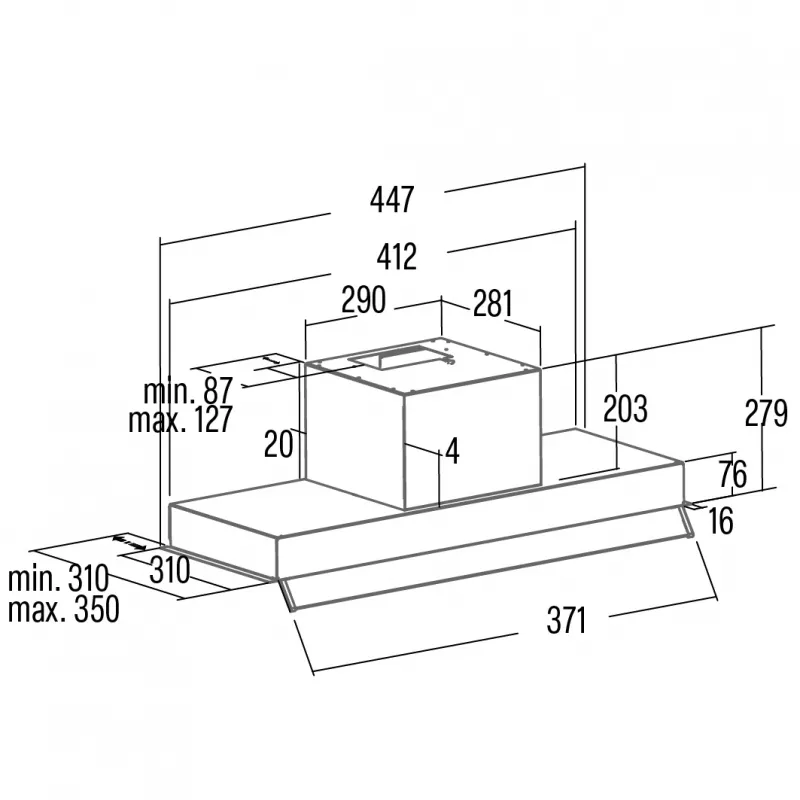

Key specifications

• Width: 448 mm
• Depth: 310 mm
• Maximum extraction power: 645 m³/h
• Noise level: 70 dB
• Type: Built-in
• Grease filter type: Aluminium
• Control type: Buttons
• Bulb type: LED (6 W)
• Annual energy consumption: 101 kWh
• Energy efficiency class: C

How to use

Install the CATA ARMONIA 45 X into a compatible cabinet or housing following the manufacturer’s mounting instructions. Connect either ducting for external extraction or configure for recirculating mode with appropriate charcoal filter if required. Use the buttons to select one of three fan speeds and switch the LED light on or off as needed. Clean or replace the aluminium grease filter regularly to maintain extraction performance.

Recommendations

For optimal performance, run the hood on a higher fan speed during intense frying or boiling and maintain clearance from combustible materials as stated in the installation guide. Clean the grease filter according to the schedule in the manual and replace charcoal filters when recirculating.
