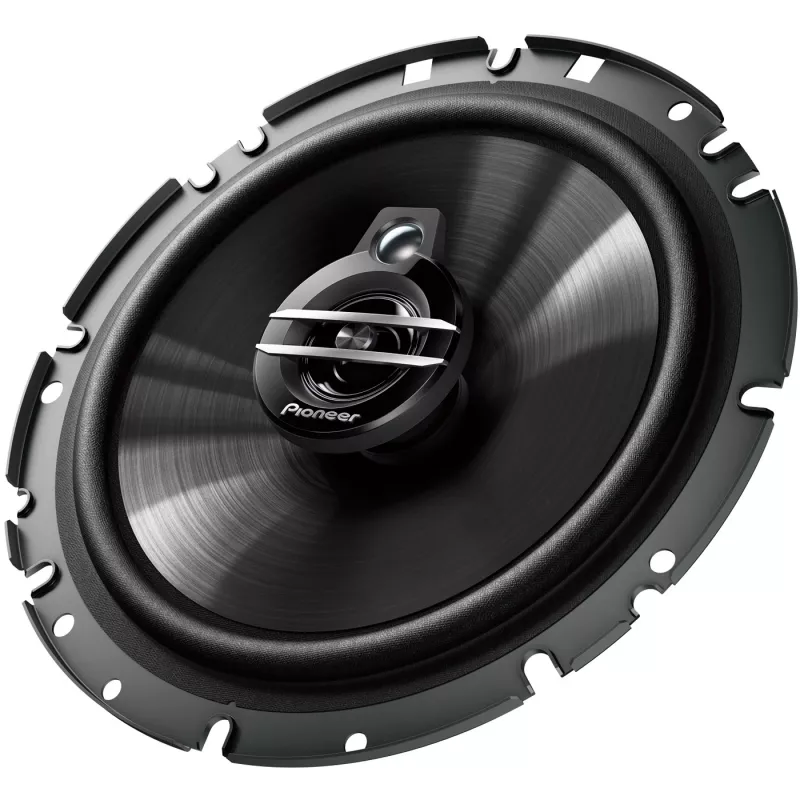

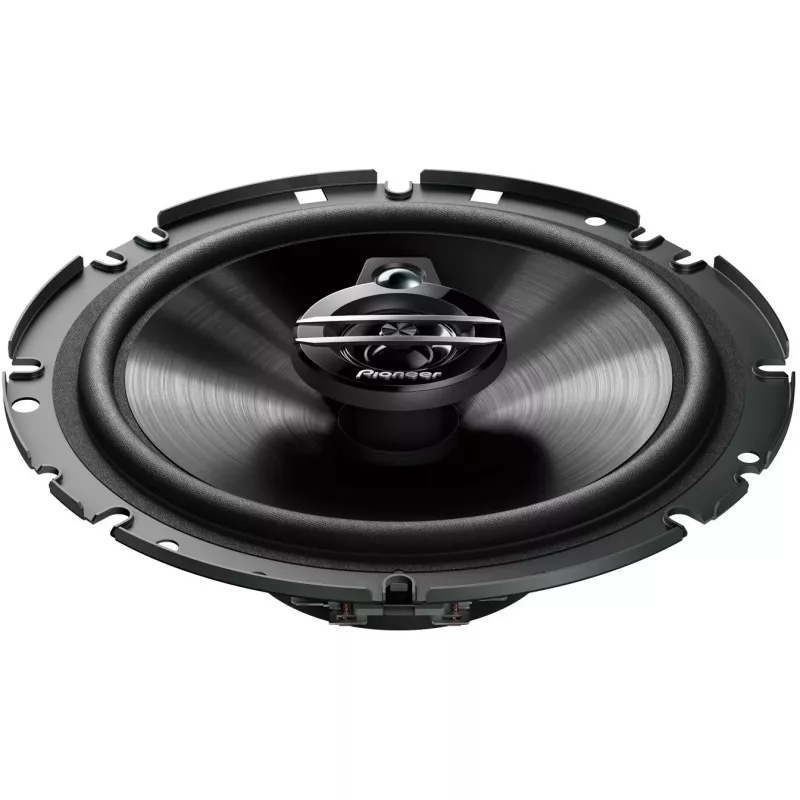

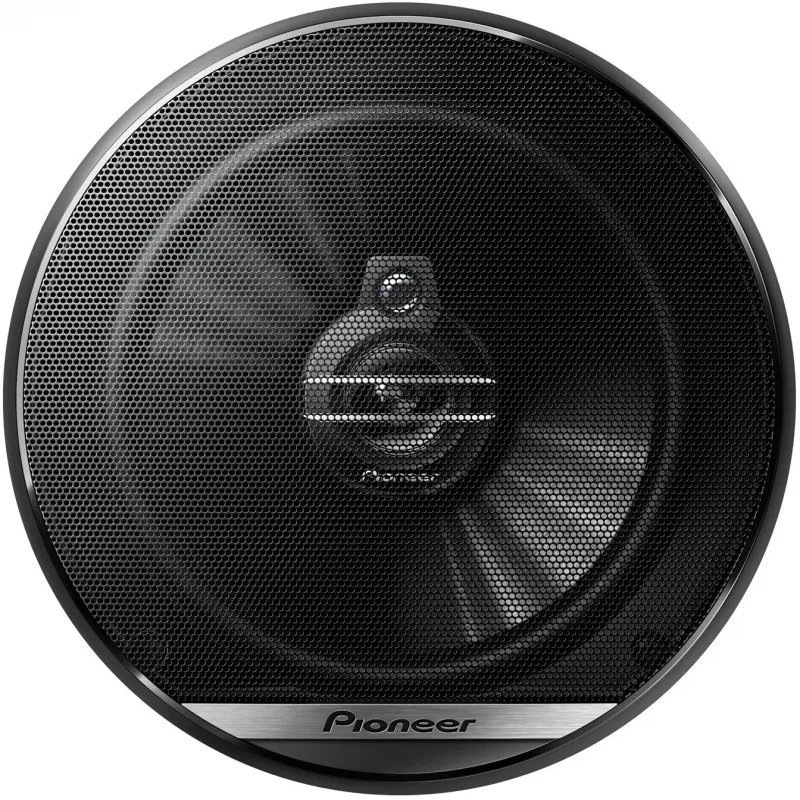

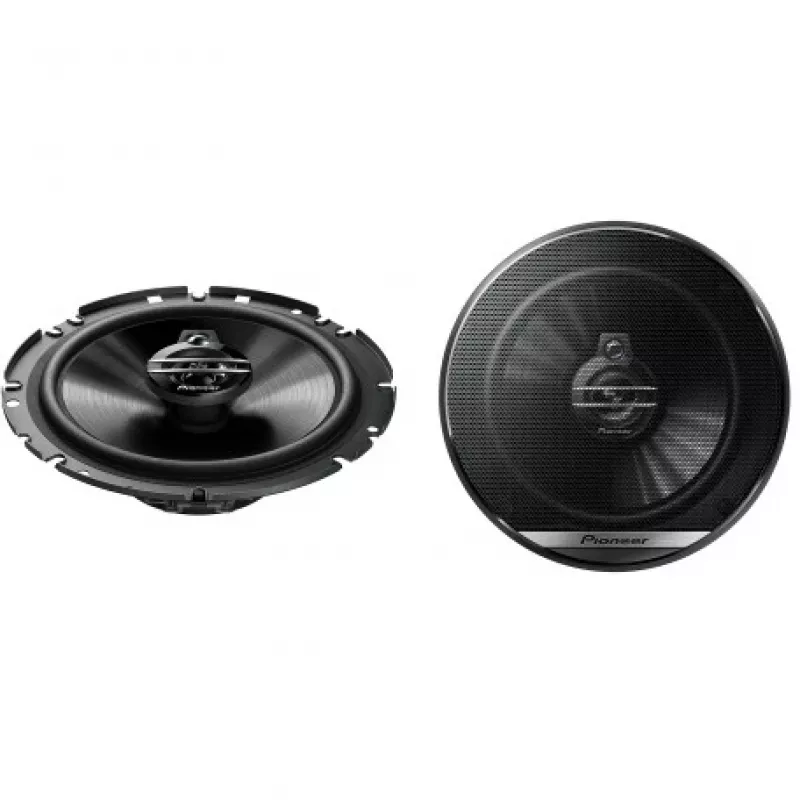

Car Speaker Pioneer TS-G1730F Round 3-way 300 W

The Pioneer TS-G1730F is a renewed G-series 17 cm (6.7") 3-way coaxial car speaker designed to deliver powerful, premium audio with good value. It features a rigid, easy-to-install design with multi-bolt patterns, increased power handling and high sensitivity for deep bass reproduction and clear highs even at higher volumes. Nominal power is 40 W with a maximum (peak) power of 300 W, a mounting depth of 4.97 cm and a compact 1 cm tweeter for clear high frequencies.

Advantages

The TS-G1730F offers a balanced 3-way design that improves midrange clarity and high-frequency detail while reinforcing low-frequency impact. Its rigid construction and multi-bolt mounting patterns simplify installation in many car models. Increased power handling and sensitivity enable reliable performance at higher volume levels without significant distortion.

Suitable for

• Upgrading factory car audio systems
• Drivers who want stronger bass and clearer highs
• Vehicles requiring a 17 cm (6.7") round speaker with shallow mounting depth

Key specifications

• Model: Pioneer TS-G1730F
• Type: 3-way coaxial car speaker (round)
• Nominal (RMS) power: 40 W
• Maximum (peak) power: 300 W
• Speaker diameter: 17 cm
• Tweeter diameter: 1 cm
• Mounting depth: 4.97 cm
• Weight: 590 g
• Brand: PIONEER
• MPN/EAN: Pioneer TS-G1730F / 884938373494

How to use

Install the TS-G1730F in a compatible 17 cm round speaker location using the vehicle-specific mounting points or the speaker's multi-bolt pattern. Connect the left and right speaker terminals to the corresponding outputs on the car stereo or amplifier, observing correct polarity. After installation, test audio at low volume and gradually increase to verify secure mounting and sound quality. Use appropriate wiring and, if applicable, an amplifier within the speaker's rated power range for optimal results.

Recommendations

For reliable performance, pair the TS-G1730F with a head unit or amplifier that provides clean power and avoid exceeding continuous RMS power ratings; ensure secure mounting and correct polarity to prevent phase or distortion issues.
