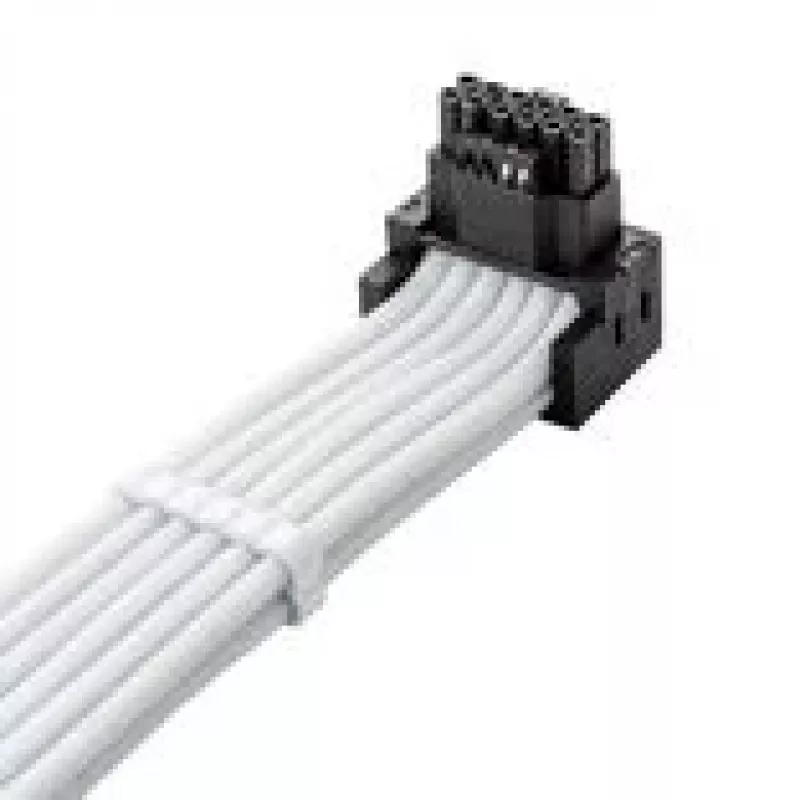

CableMod C-Series Pro Anschlusskabel Variante A 90° 16-pin to 4×8-pin PCIe, white

CableMod C-Series Pro Anschlusskabel Variante A 90° 16-pin to 4×8-pin PCIe, white is a modular power extension cable designed to convert a single 16-pin main connector into four separate 8-pin PCIe power connectors with a 90° exit. The cable is supplied in white and is intended for custom PC builds and compact or high-density GPU configurations where controlled cable routing and a tidy internal appearance are important. It provides a single input for modern power supplies and delivers targeted power outputs to multiple PCIe devices while maintaining a compact connector angle to save space near crowded power headers.

Advantages

The cable provides a space-saving 90° connector orientation at the input side, helping to reduce stress on connectors in tight cases and improving airflow by enabling neater cable management. Split output to four 8-pin PCIe connectors allows a single 16-pin source to feed multiple graphics cards or PCIe devices without additional adapters. The white sleeving and consistent build style are intended to match aesthetic-focused builds while preserving electrical integrity and stable power delivery under typical operating conditions.

Suitable for

• Custom desktop PC builds with a 16-pin main power output
• High-density multi-GPU setups or systems with multiple PCIe power-hungry cards
• Small form factor or compact cases where connector clearance is limited
• PC builds where visible cable appearance and neat routing are important

Key specifications

• Connector conversion: one 16-pin input to four 8-pin PCIe outputs
• Input connector orientation: 90° angle for space-saving routing
• Color: white sleeved cable
• Cable type: modular power extension for internal PC use
• Designed for multiple PCIe devices powered from a single 16-pin source

How to use

Install the cable by connecting the 16-pin input to the corresponding 16-pin main power connector on the power supply or modular hub, ensuring the 90° orientation fits the available clearance. Route the sleeved cable inside the case to minimize interference with fans and other components, then connect each 8-pin PCIe output to the PCIe power sockets on the graphics cards or expansion cards. Confirm that all connections are fully seated and that the cable routing does not place undue strain on connectors or block airflow paths.

Recommendations

Verify compatibility between your power supply’s 16-pin output and the cable prior to installation. Use the cable only for internal PC power distribution and avoid forcing connectors into incompatible sockets. For systems with high combined power draw, ensure the power supply’s capacity and the PCIe device power requirements are within safe limits.
