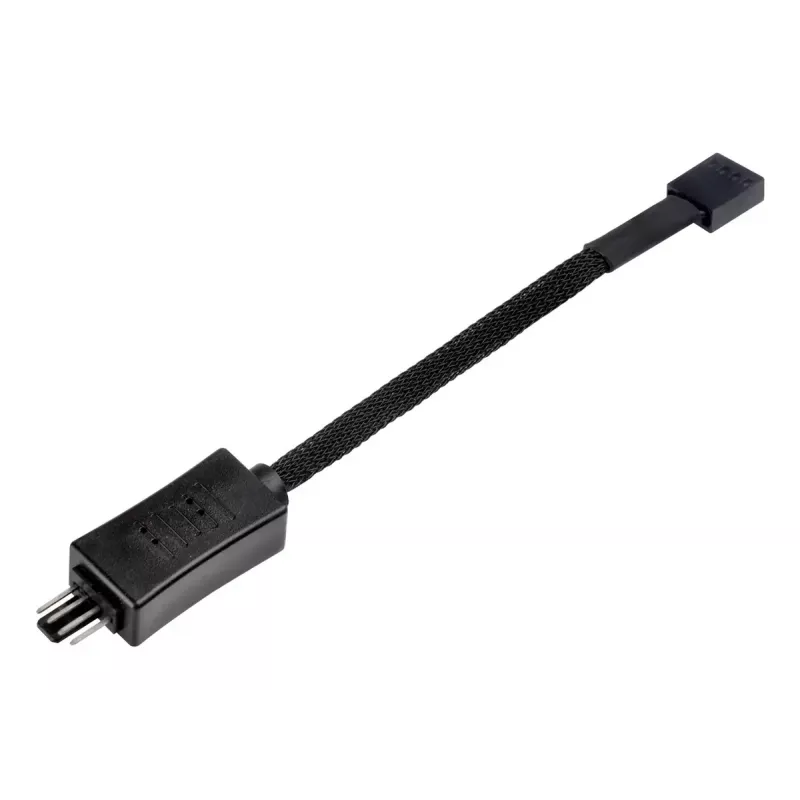

Cable Silverstone CPF05 0.1 m 4-pin to 4-pin PWM

The Silverstone CPF05 is a 0.1 m 4-pin to 4-pin PWM cable designed to extend or route PWM fan connections inside PC systems. Sold as a pack of two, this short cable provides a straightforward connection between motherboard or fan hub PWM headers and fans or other PWM-controlled devices. Its compact length and standard 4-pin PWM connectors support reliable power delivery and speed control for cooling components.

Advantages

The CPF05 offers a compact, low-profile solution for routing PWM fan connections in tight spaces. Using standard 4-pin connectors ensures compatibility with most motherboard and fan hub PWM headers. The short 0.1 m length reduces cable clutter and improves airflow inside the case while maintaining stable PWM signal and power transfer for fan speed control.

Suitable for

• Connecting case or CPU fans to motherboard PWM headers
• Linking fans to PWM-enabled fan hubs or controllers
• Replacing or extending short PWM fan leads in compact builds
• Neat cable routing in small form-factor or crowded PC cases

Key specifications

• Cable length: 0.1 m

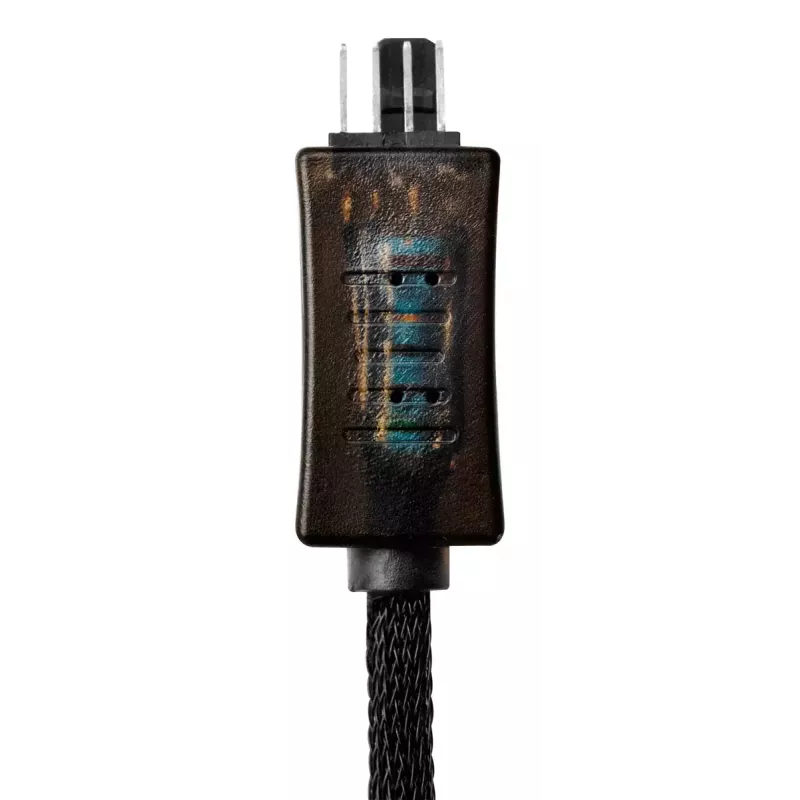

• Connector type: 4-pin PWM to 4-pin PWM

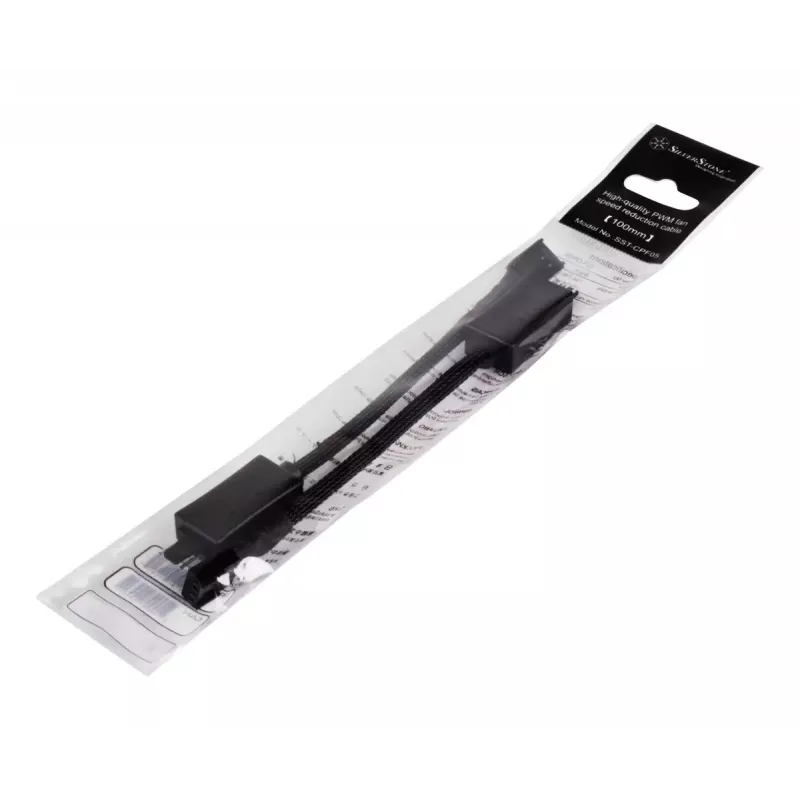

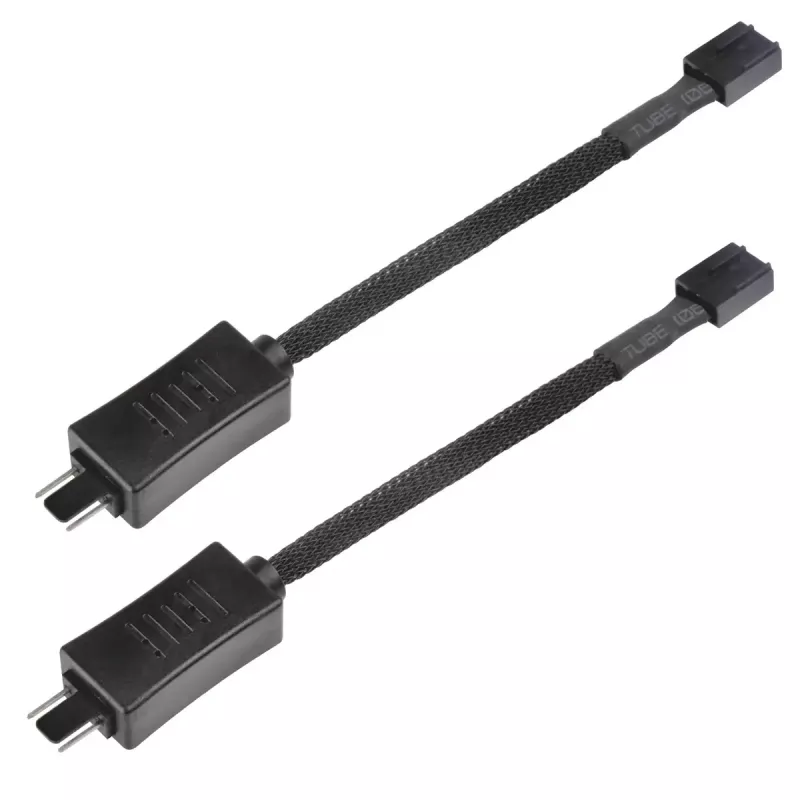

• Pack quantity: 2 cables per pack
• Functionality: PWM speed control compatible
• Intended use: Internal PC fan and PWM device connections

How to use

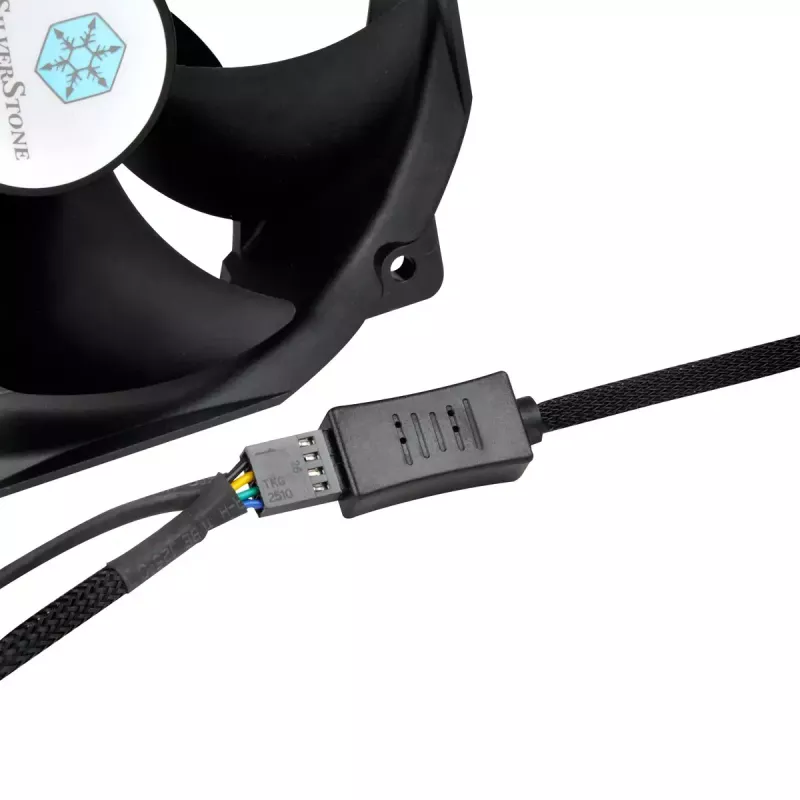

Connect one end of the CPF05 cable to the 4-pin PWM header on the motherboard or a PWM fan hub, and connect the other end to the fan's 4-pin connector. Ensure the connector orientation matches the header to align power, ground, tachometer, and PWM signal pins. For multiple fans, use one cable per fan or daisy-chain according to the fan hub or controller instructions.

Recommendations

Use the CPF05 for short internal connections where minimal cable length is desirable. Avoid stretching the cable or bending connectors sharply. For longer routing needs, choose appropriately longer extension cables. Verify motherboard or controller PWM settings after installation to confirm fan speed control is operational.
