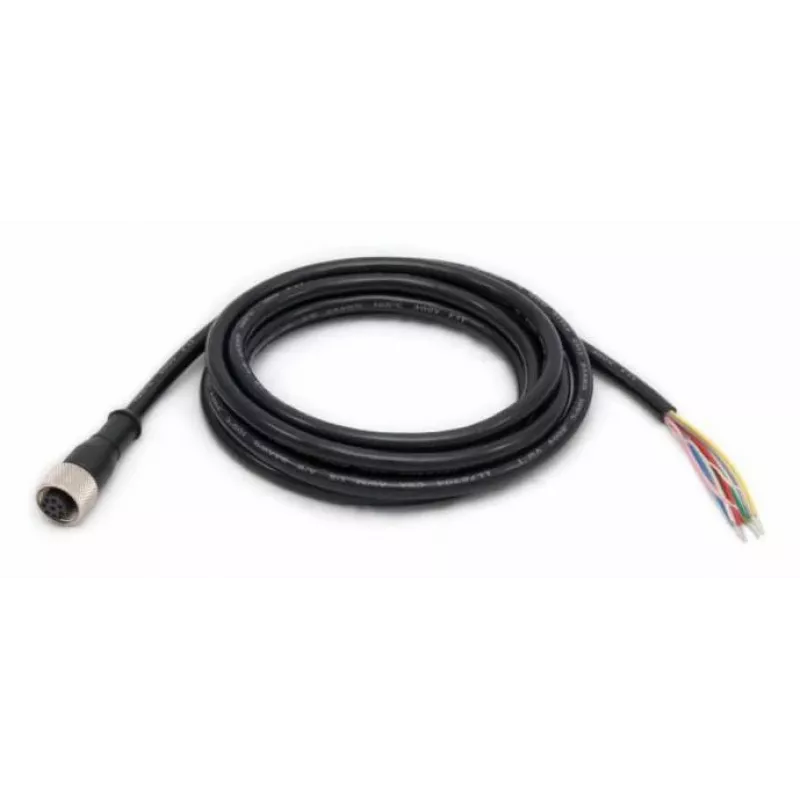

CABLE POWER 5M 12 PIN M12 TO FLYING LEADS STANDARD FLEX

For industrial connectivity where a standard patch cable falls short, the Zebra CBL-PWR00500-M1200 delivers a robust 5-meter link between an M12 interface and raw wiring. Its 12-pin A-coded male connector mates securely with IP67-rated equipment, while the flying leads on the opposite end give integrators the freedom to terminate exactly as the application demands. Unlike pre-terminated assemblies that lock you into fixed lengths and connectors, this cable adapts to custom panels, sensor arrays, and low-power distribution blocks without compromise.

Highlights

• 5-meter (16.4 ft) length bridges control cabinets and field devices with room to spare.
• 12 conductors of 22 AWG (0.34 mm²) handle up to 1.5 A per pin at 30 V AC/DC.
• M12 A-coded male connector ensures compatibility with a vast range of industrial sensors and actuators.
• PVC jacket with standard flex balances durability and ease of routing in dynamic installations.
• Unshielded design keeps cost and weight down for applications where EMI is not a concern.
• RoHS compliant and halogen-free construction supports environmentally conscious projects.

In daily use

Technicians appreciate the time saved by not having to crimp a dozen tiny pins in the field. The M12 end clicks into place with a positive lock, and the color-coded flying leads simplify mapping to terminal blocks or custom PCBs. In temperatures from -25°C to +80°C, the cable remains flexible enough for cable carriers and tight corners. Whether connecting a vision sensor on a robot arm or distributing power to a bank of solenoid valves, this assembly holds up to vibration, oil mist, and washdown splashes when the connector is properly mated.

Full specifications

• Brand: Zebra
• Model: CBL-PWR00500-M1200
• MPN: CBL-PWR00500-M1200
• Cable type: M12 cable assembly
• Connector A: M12 circular, male, 12-pin, A-coded
• Connector B: Flying leads (unterminated)
• Cable length: 5 m (16.4 ft)
• Number of cable cores: 12
• AWG wire size: 22 AWG (0.34 mm²)
• Operating voltage (max): 30 V AC/DC
• Current rating per pin: 1.5 A
• Cable material: PVC (polyvinyl chloride)
• Cable flexibility: Standard flex
• Shielding: Unshielded
• IP rating (mated connector A): IP67
• Operating temperature: -25°C to +80°C
• Product colour: Black
• Compliance certificates: RoHS
• Halogen free: No
• Application: Industrial automation, sensor/actuator connectivity, low-power distribution

Final note

When your project needs a dependable M12-to-open-end connection that you can tailor on site, the Zebra CBL-PWR00500-M1200 is the practical choice. Its combination of standard flex, generous length, and robust connector makes it a workhorse for machine builders and maintenance teams alike.
