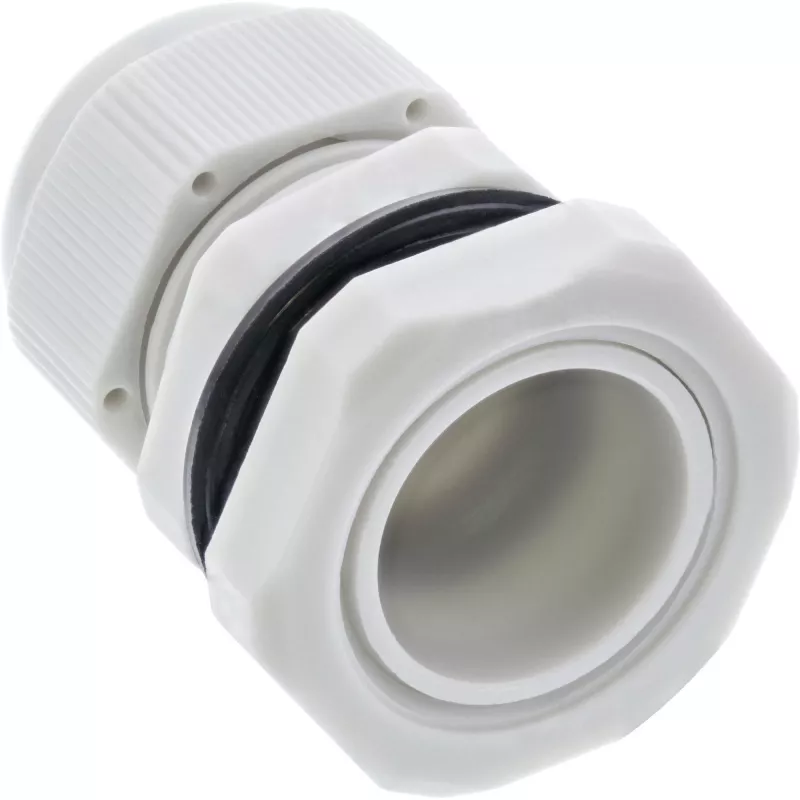

Cable gland InLine 6–12 mm nylon IP68 grey, pack of 10, external diameter 12 mm

InLine nylon in-line cable gland with IP68 ingress protection, designed for sealing and strain-relieving cables with diameters from 6 to 12 mm. The product is supplied as a pack of 10 in grey and features an external diameter of 12 mm. Built for use in electrical enclosures, junction boxes and outdoor installations, this cable gland maintains a dust- and water-resistant barrier around the cable entry point while providing mechanical protection against pull and vibration.

Advantages

The nylon construction offers chemical and UV resistance while remaining lightweight. IP68 rating ensures long-term protection against dust and temporary or continuous water immersion depending on installation conditions. The in-line design simplifies retrofitting cables without needing to disassemble enclosures, and the included pack of 10 provides consistent sealing components for multiple entries or small projects.

Suitable for

• Sealing cable entries on outdoor junction boxes and enclosures
• Cable routing where protection from dust and moisture is required
• Industrial and domestic installations requiring strain relief for single cables
• Repair and retrofit work where existing cables must be sealed without replacement

Key specifications

• Material: nylon (polyamide)
• Ingress protection: IP68
• Compatible cable diameter range: 6–12 mm
• External diameter (mounted): 12 mm
• Colour: grey
• Pack quantity: 10 pieces

How to use

Prepare the enclosure entry hole with a diameter suitable for the gland's external dimension. Insert the cable gland into the entry, push the cable through the gland's sealing element, and tighten any securing nut or locking mechanism until the seal compresses evenly around the cable. Ensure the cable is positioned to allow strain relief and that the gland is tightened to the manufacturer's recommended hand or torque specification where available to achieve IP68 sealing.

Recommendations

Verify the actual cable outer diameter before installation to ensure a correct fit within the 6–12 mm range. For outdoor or submerged applications, check the surrounding enclosure's sealing condition and mounting surface to maintain overall IP68 performance. Replace any gland that shows signs of cracking, deformation or UV degradation to preserve ingress protection.
