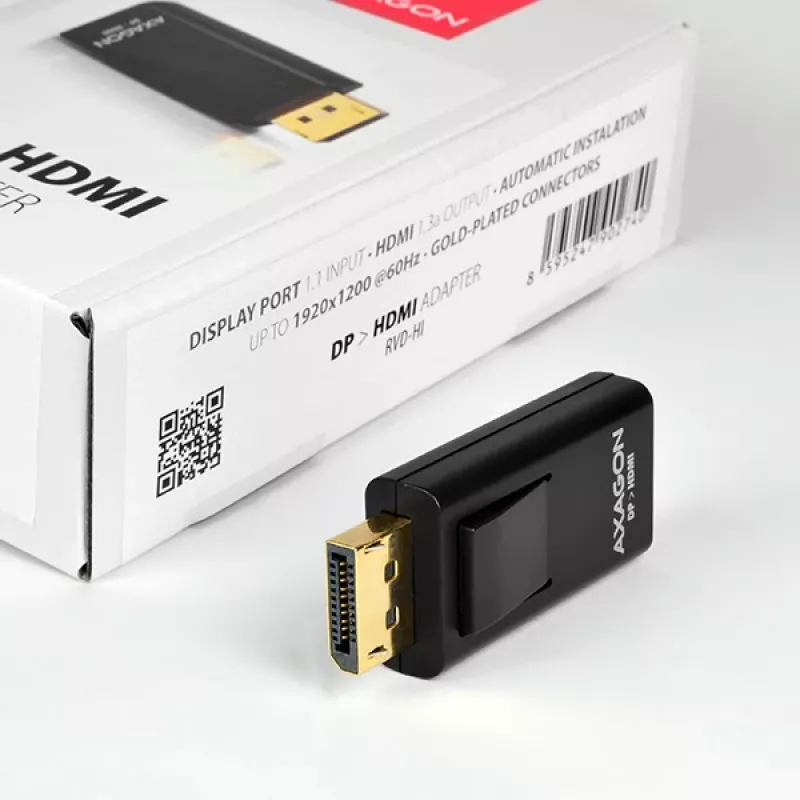

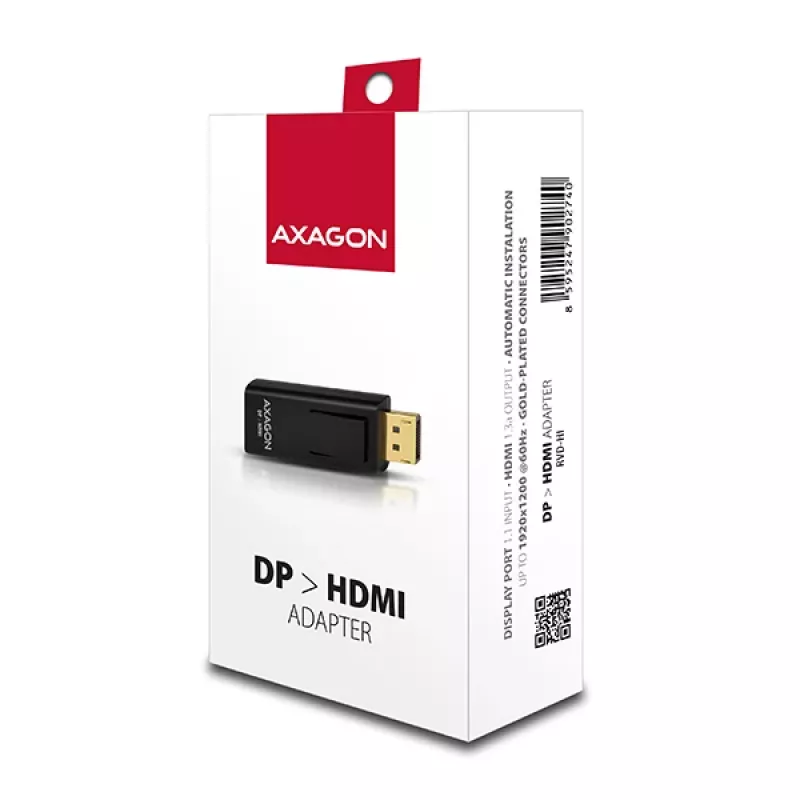

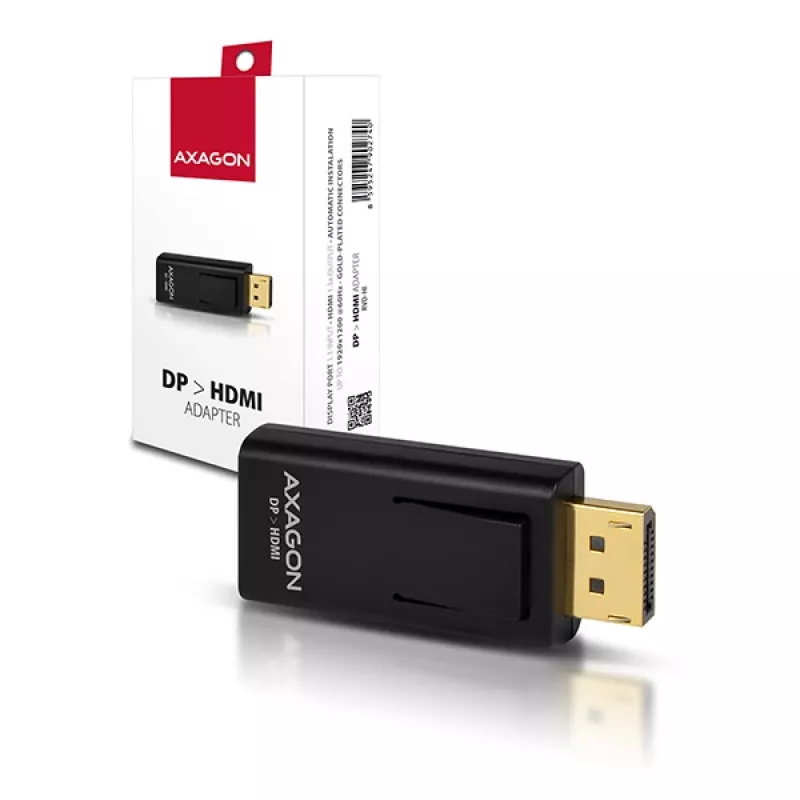

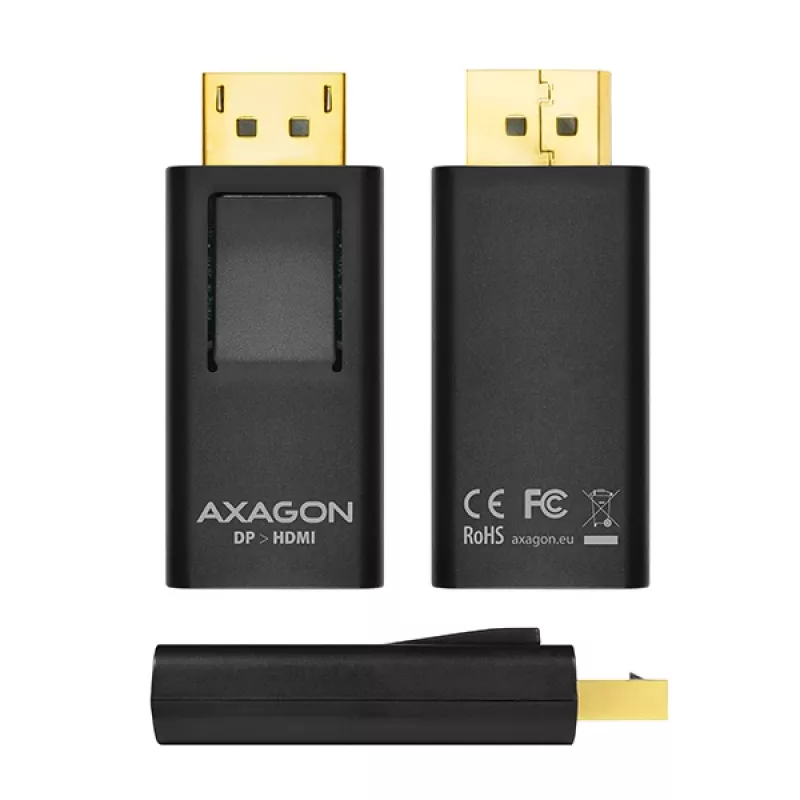

Cable gender changer Axagon RVD-HI DisplayPort to HDMI Black

The Axagon RVD-HI is an active DisplayPort-to-HDMI adapter that lets you connect an HDMI monitor, TV or projector to a computer with a DisplayPort output. This hardware converter requires no drivers or setup and transfers both image and sound up to 1920 x 1200 at 60 Hz. The adapter is unidirectional: it converts DisplayPort output to HDMI input only.

Advantages

The adapter supports audio transmission, DDC for automatic resolution and frequency negotiation, and HPD (Hot-Plug-Detect) for proper connection handling while the system is running. It draws power from the DisplayPort bus so no external power supply is required, and gold-plated connectors improve contact quality and reduce oxidation. The converter uses the NXP PTN3361BBS chip and has compact dimensions (56 x 24 x 12 mm) with a weight of 12 g.

Suitable for

• Connecting a DisplayPort-equipped PC or laptop to an HDMI monitor or TV
• Using a DisplayPort source with an HDMI projector for presentations
• Extending or mirroring the primary display to an HDMI screen

Key specifications

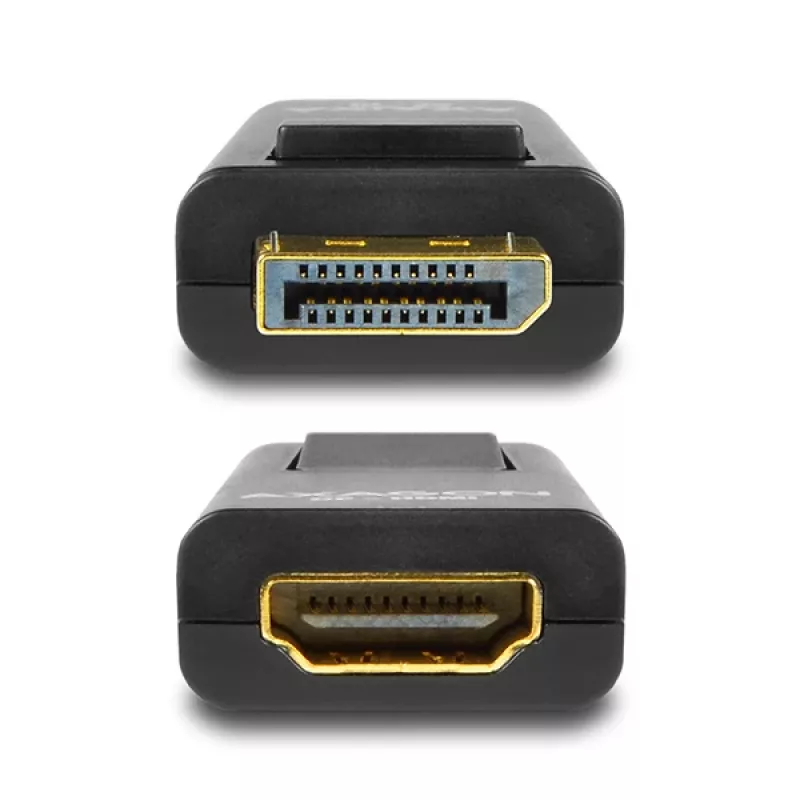

• Input: DisplayPort v1.1, DP male connector with latch and release button
• Output: HDMI v1.3a, HDMI A female connector
• Maximum supported resolution: 1920 x 1200 (16:10) @ 60 Hz (WUXGA)
• Other supported resolutions include 1920 x 1080, 1680 x 1050, 1600 x 1200, 1366 x 768, 1280 x 1024 and lower
• Supports audio transfer, DDC and HPD
• Power via DisplayPort bus (no external power needed)
• Chip: NXP PTN3361BBS
• Dimensions: 56 x 24 x 12 mm; Weight: 12 g
• Operating temperature: 0 ~ 40°C; Storage temperature: -10 ~ +85°C

How to use

Insert the male DisplayPort connector into the DisplayPort output on your computer until the latch clicks, then connect an HDMI cable from the adapter's HDMI female connector to the HDMI input on the monitor, TV or projector. The adapter operates as a plug-and-play hardware converter; no driver installation is required. Select the desired display mode (mirroring or extending) in the operating system display settings if necessary.

Recommendations

Ensure the source device provides DisplayPort output and that the target display accepts HDMI input. Use a high-quality HDMI cable for reliable signal transmission. Do not force the connector when inserting or removing; press the DP connector latch release button to detach the adapter safely.
