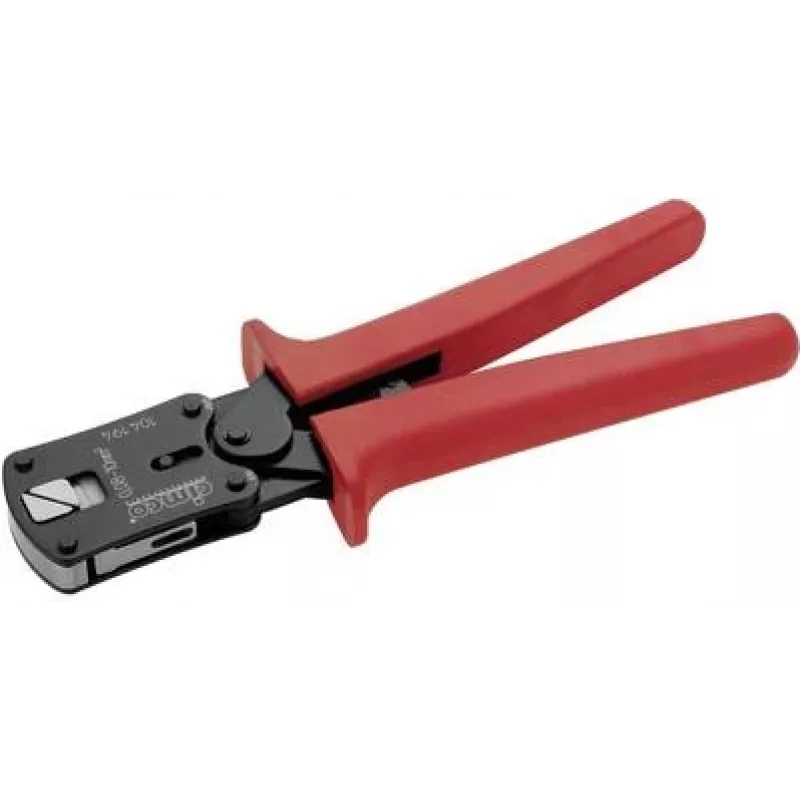

Cable Crimper Cimco 104194 Black Red

The Cimco 104194 cable crimper is a hand tool designed for precise crimping of cable lugs, insulated and non-insulated terminals, and similar electrical connectors. Built with an ergonomic handle profile and a robust hinge mechanism, it delivers controlled compression for consistent crimp quality. The tool’s black and red finish provides clear visual contrast for grip orientation and a professional appearance suitable for workshop and field use.

Advantages

The ergonomic handles reduce hand fatigue during repeated operations and help maintain correct hand placement for reliable crimps. Hardened jaws and a sturdy joint ensure durability and stable crimp force over time. The tool’s compact length allows access in confined spaces while still providing sufficient leverage for secure connections. Its straightforward mechanical design requires no power source and minimal maintenance.

Suitable for

• Crimping insulated and non-insulated terminals on multi-core and single-core cables
• Assembly and repair of electrical wiring in appliances, vehicles, and machinery
• DIY electrical projects and professional electrical installations
• Low-voltage control panels and signal wiring

Key specifications

• Tool type: manual cable crimper designed for terminals and lugs
• Handle design: ergonomic, insulated grip in black and red for improved handling
• Jaw material: hardened steel for wear resistance and consistent compression
• Operation: ratcheting or fixed mechanical action providing repeatable crimp force
• Application range: suitable for a range of conductor cross-sections and terminal sizes used in electrical wiring
• Construction: robust hinge and frame for long service life

How to use

Select the appropriate terminal for the conductor size, strip the cable insulation to the required length, and insert the conductor fully into the terminal barrel. Position the terminal in the crimper jaws according to the manufacturer’s guidance so the barrel sits squarely between the crimping dies. Squeeze the handles evenly until the crimp is completed and the tool releases (if ratcheting). Inspect the crimp visually and, if necessary, perform a light pull test to confirm a secure mechanical and electrical connection.

Recommendations

For reliable results, use terminals matching the conductor cross-section and avoid overstripping insulation. Keep the crimper jaws clean and free of debris; occasional light lubrication of the hinge will maintain smooth action. Store the tool in a dry place to prevent corrosion and inspect jaws periodically for wear. Replace the tool if jaws become deformed or no longer form consistent crimps.
