Busch-Jaeger IP Touch Lite 7 H8249-1W-03 Welcome 1 (2TMA130050W0069)

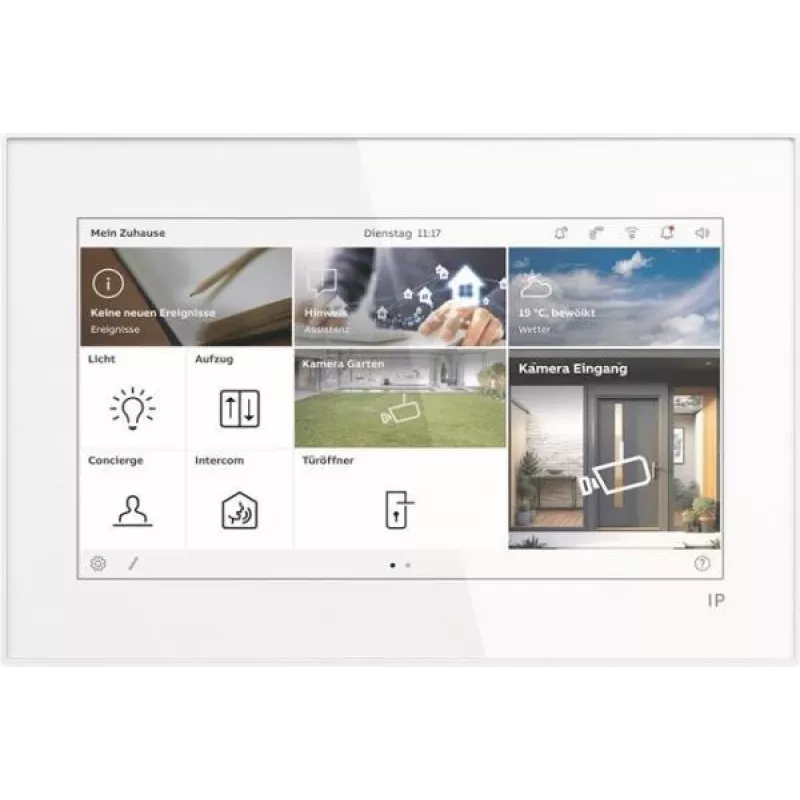

The Busch-Jaeger IP Touch Lite 7 is a modern, surface-mounted touch display for the Busch-Jaeger Welcome IP intercom system. It combines elegant design with intuitive operation, offering hands-free communication, video door intercom, and smart home control. The 7-inch capacitive TFT color display with 1024x600 resolution provides clear visuals. It supports Power over Ethernet (PoE) or 24V DC power supply, and connects via Ethernet or Wi-Fi (802.11 b/g/n). The device is finished in white and made of high-quality plastic.

Advantages

Easy installation and integration into existing Busch-Jaeger Welcome IP systems. The capacitive touchscreen ensures responsive control. With PoE support, only one cable is needed for data and power. The intercom function allows communication with outdoor stations and internal units, and the door opener can be triggered remotely. A picture memory stores up to 100 images of missed calls.

Suitable for

• Residential and commercial buildings using Busch-Jaeger Welcome IP systems
• Users seeking a sleek, wall-mounted touch panel for door communication and home automation
• Installations where PoE simplifies wiring

Key specifications

• Display: 7-inch TFT color, capacitive touch, 1024x600 pixels
• Connectivity: Ethernet (10/100Base-T), Wi-Fi (802.11 b/g/n)
• Power: PoE (IEEE 802.3af Class 0) or 24V DC
• Mounting: Surface-mounted
• Color: White
• Material: High-quality plastic
• Operating temperature: 0°C to 45°C
• Protection class: IP20
• Intercom: Hands-free, video, door opening, internal communication
• Picture memory: Up to 100 images

Recommendations

For optimal performance, pair with Busch-Jaeger Welcome IP outdoor stations and ensure a stable network connection. Use a PoE switch or injector compliant with IEEE 802.3af.
