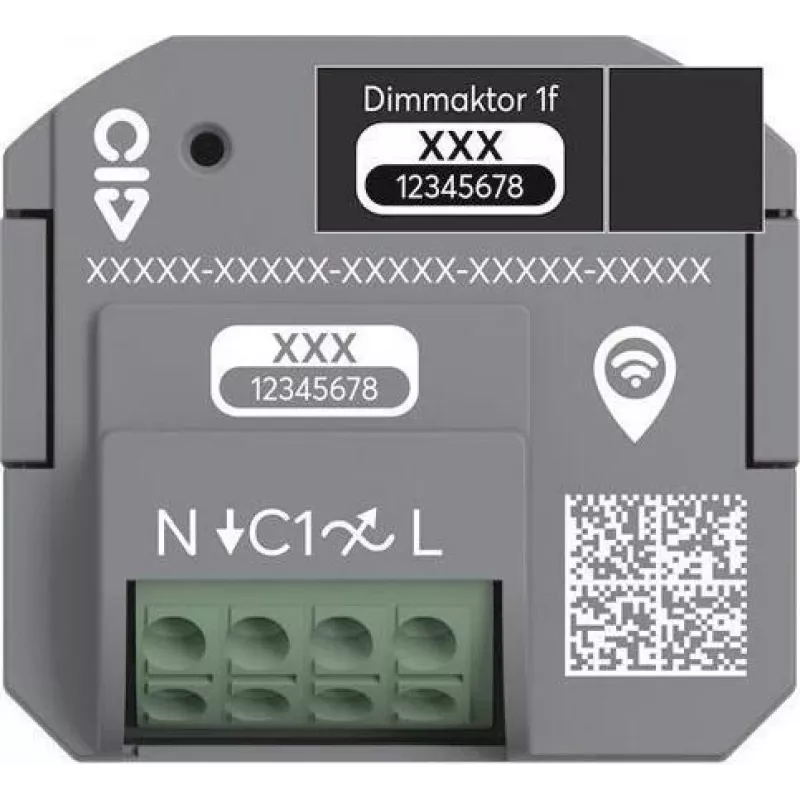

Busch-Jaeger Dimming Actuator 1-Channel Flush-Mounted Wireless 62851 U-WL

The Busch-Jaeger Dimming Actuator 1-channel flush-mounted wireless (model 62851 U-WL) is a high-quality component for the free@home smart home system. It enables precise dimming of various light sources via radio control, offering convenience and energy efficiency. Designed for flush mounting, it integrates seamlessly into existing installations.

Advantages

This dimming actuator provides overload and short-circuit protection, soft start for extended bulb life, memory function, and adjustable min/max brightness. It supports both leading-edge and trailing-edge dimming for compatibility with a wide range of dimmable LEDs, incandescent, and halogen lamps.

Suitable for

• Residential and commercial smart home installations using Busch-Jaeger free@home system
• Dimmable LED, incandescent, and halogen lighting circuits
• Flush-mounted installation in standard wall boxes (minimum depth 32 mm)

Key specifications

• Product Type: Dimming Actuator
• Mounting Type: Flush-mounted (UP)
• Number of Channels: 1
• Control Technology: free@home Wireless (RF)
• Operating Frequency: 868 MHz
• Supply Voltage: 230 V AC, 50/60 Hz
• Max. Incandescent/HV Halogen Load: 10 - 200 W
• Max. Dimmable LED Load (Phase Cut): 2 - 100 W
• Max. Dimmable LED Load (Phase Section): 2 - 100 W
• Max. Electronic Transformer Load: 10 - 200 VA
• Max. Inductive Transformer Load: 10 - 200 VA
• Protection Class: IP20
• Operating Temperature: 0 to 45 °C
• Connection Type: Screw terminals
• Installation Depth Required: 32 mm
• Module Depth: 20 mm

Recommendations

For optimal performance, use with Busch-Jaeger free@home system components. Ensure the load is within specified ranges. Professional installation recommended.
