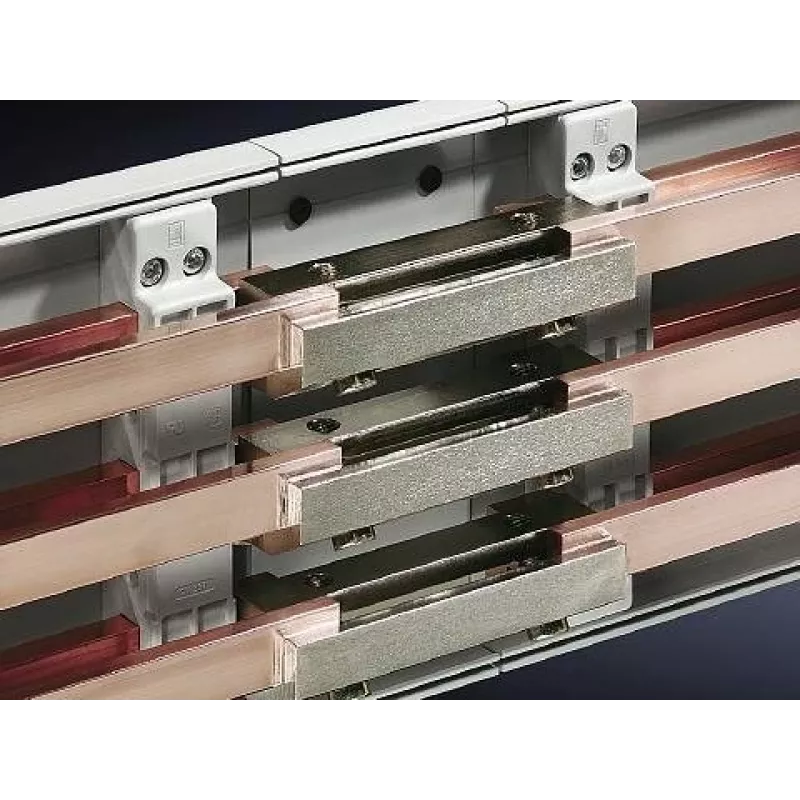

Bus bar set Rittal SV 3505.000, copper, 3 pieces

Rittal SV 3505.000 is a set of three copper bus bars designed for electrical distribution and panel assembly in switchgear and control cabinets. The three-piece bus bar set provides reliable conductive paths for connecting phases or conductors, simplifying wiring in industrial and commercial electrical installations. The copper construction supports low-resistance connections and consistent current transfer while the product is supplied as a pack of three matching bars suited for PLS special busbars without additional drilling.

Advantages

The copper material offers high electrical conductivity and heat dissipation, reducing voltage drop and improving system efficiency. Supplied as a coordinated set of three pieces, the bus bars ensure uniform phase spacing and mechanical compatibility in typical panel configurations. Designed for easy installation with PLS special busbars, these bars do not require additional drilling, which saves installation time and minimizes the need for on-site modifications.

Suitable for

Key specifications

How to use

Position the three bus bars according to the panel layout and align them with the PLS special busbar mounting points. Ensure the conductors or phase connections are prepared and routed to match the bus bar positions. Fasten the bars using the recommended hardware and torque settings for your cabinet system, observing standard safety procedures and power isolation before work. Verify tightness and electrical continuity after installation and complete any required insulation or protective covers.

Recommendations

Install and service bus bars only with the power supply isolated and by personnel qualified for electrical work. Use appropriate protective equipment and follow applicable standards and local regulations for busbar installation, torque settings, and conductor sizing to ensure safe and compliant operation.
