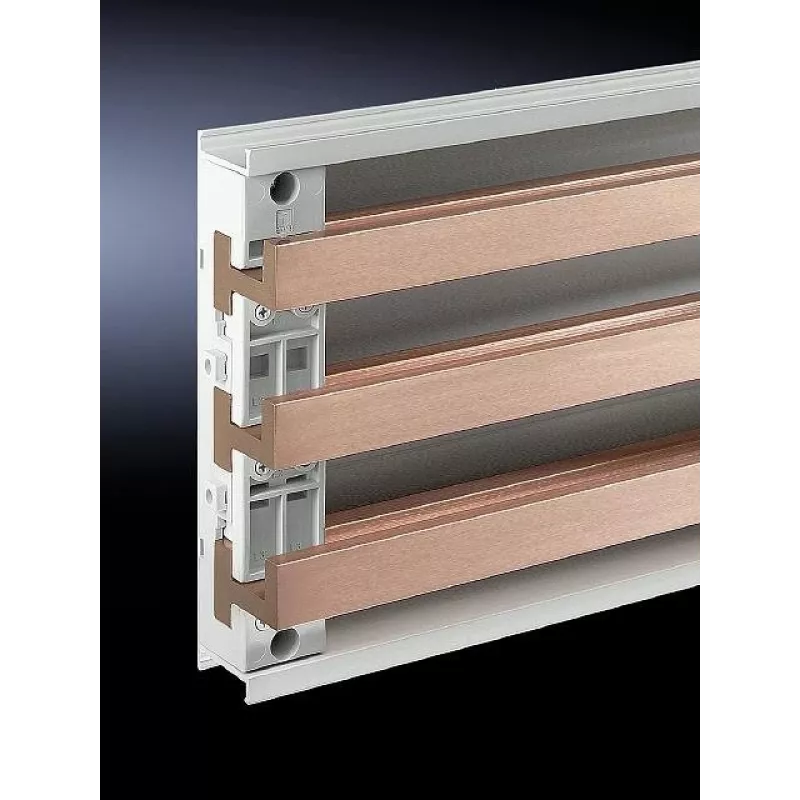

Bus bar set Rittal 3529.000, copper, 3 pcs, length 1095 mm

Rittal 3529.000 is a set of three copper bus bars, each 1095 mm long, intended for electrical distribution and panel wiring. These copper conductors provide a solid and conductive path for power distribution inside switchgear, distribution boards and industrial control enclosures. Supplied as a pack of three, the bus bars are suitable for use where compact, reliable conductive links are required in electrical cabinets and control panels.

Advantages

The copper construction ensures high electrical conductivity and consistent current carrying capability while offering resistance to oxidation in typical indoor cabinet environments. Having three identical bars in one pack simplifies procurement and ensures matching electrical and mechanical properties across phases. The fixed length and solid profile make installation straightforward and stable when mounted on standard support points in enclosures.

Suitable for

Key specifications

How to use

Measure and mark mounting positions inside the cabinet or panel according to the electrical layout and clearances required. Secure the bus bars to appropriate insulators or mounting brackets using hardware compatible with copper conductors and the enclosure material. Ensure correct phase identification and provide appropriate insulation, spacers, or covers where electrical clearance or touch protection is required. Torque all fastening points to the values specified for the chosen connectors and verify mechanical stability before energizing the circuit.

Recommendations

Use the bus bars within their rated current and temperature limits as determined by conductor cross-section and installation conditions; verify compatibility with protective devices, mounting hardware, and insulation accessories. For installations in corrosive or outdoor environments, consider additional protection or alternative materials. Follow local electrical codes and safety standards during installation and commissioning.
