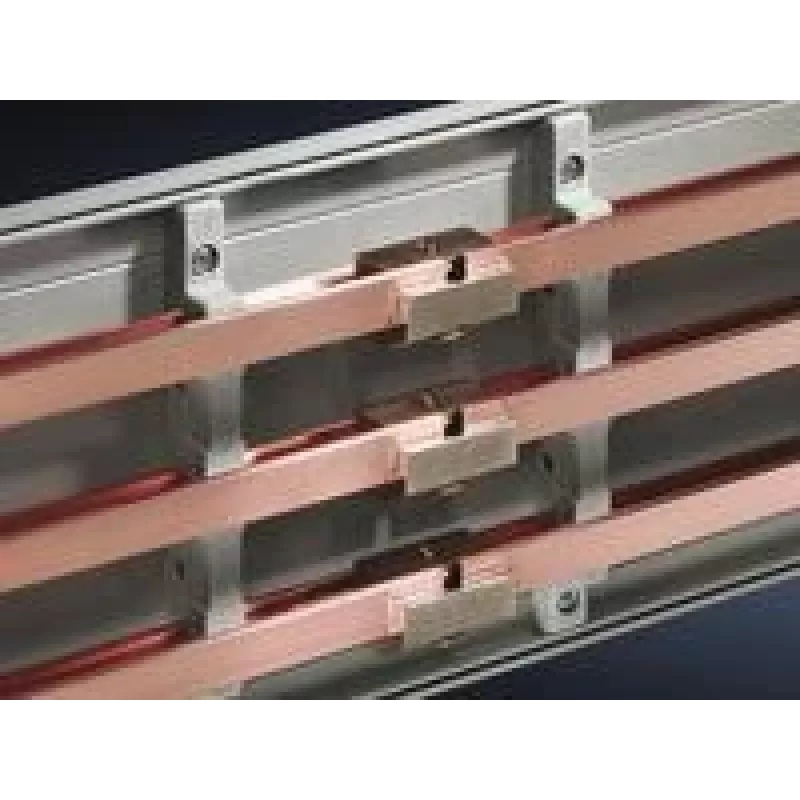

Bus bar Rittal SV 3514.000, copper, set of 3

Rittal SV 3514.000 is a set of three copper bus bars designed for electrical distribution inside switchgear, control panels and industrial enclosures. Supplied as a pack of three conductive bars, this product provides a reliable copper conductor option where solid current-carrying paths are required. The bus bars are compatible with PLS special busbar systems and are designed for installation without additional drilling, enabling straightforward integration into existing mounting arrangements.

Advantages

These copper bus bars deliver low electrical resistance and stable conductivity for consistent power transmission. Being manufactured from copper, they offer good corrosion resistance and thermal performance compared with many alternative materials. The pack of three simplifies replacement or multi-rail installations, and the no-drill installation capability reduces assembly time and the need for additional fittings.

Suitable for

Key specifications

How to use

Position the bus bar set within the enclosure or on the busbar support compatible with PLS special busbars, aligning connection points with the components to be powered. Secure the bars using the existing clamp or fastening mechanism of the busbar system — no additional drilling is required when used with compatible mounts. Ensure all electrical connections are tightened to the specified torque and that the system is de-energized during installation. Verify clearances and electrical isolation according to applicable safety standards before re-energising.

Recommendations

Use these copper bus bars in systems designed for copper conductors and compatible with PLS special busbar mounting. Confirm correct sizing and clearances for current load and heat dissipation, and perform installations only when power is shut off and following relevant electrical safety regulations. Regularly inspect connections for tightness and signs of corrosion or overheating.
