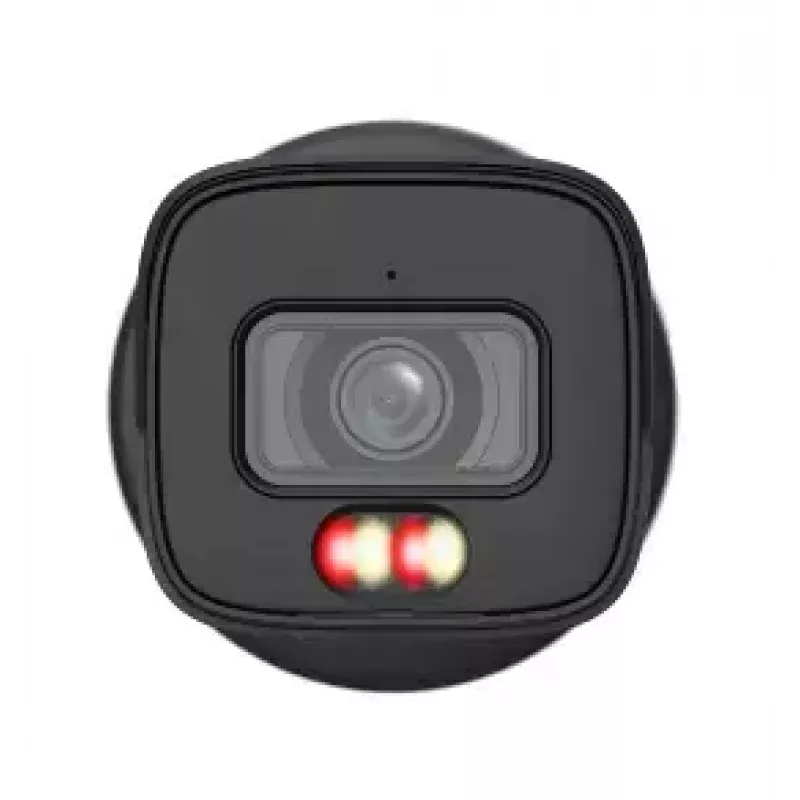

Bullet IP security camera DAHUA IPC-HFW3649E-AS-IL, 6 MP (3288×1850), wired, PoE, ceiling/wall, indoor/outdoor, black

DAHUA IPC-HFW3649E-AS-IL is a 6 MP bullet IP security camera that delivers 3288 × 1850 resolution for wired surveillance applications. Designed for indoor and outdoor use, the camera supports ceiling or wall mounting and offers Power over Ethernet (PoE) as well as 12 VDC input. The weather-resistant black housing and IP67 protection make it suitable for perimeter monitoring, entrances, parking areas and building interiors. Built on Dahua's WizSense platform, the camera integrates AI-based human and vehicle detection to reduce false alarms and speed up incident response.

Advantages

The camera provides high-resolution imaging at up to 6 MP with low-luminance performance and H.265 compression to reduce bandwidth and storage needs. Built-in warm light and infrared LEDs support night vision up to 30 m, while intelligent features such as intrusion/tripwire detection, face detection and SMD 4.0 improve target classification for humans and vehicles. Wired Ethernet with PoE simplifies installation and power management, and the IP67-rated housing ensures reliable operation in outdoor environments.

Suitable for

• Perimeter and fence line monitoring
• Building entrances and lobbies
• Parking lots and driveways
• Warehouse aisles and indoor facility surveillance

Key specifications

• Image sensor: 1/2.7" CMOS, 6 MP (3288 × 1850)
• Video output: up to 6 MP @25/30 fps
• Video compression: H.265/H.264 with SMART H.264+/H.265+ and AI codecs
• Night vision: IR and warm light, effective range up to 30 m
• AI features: human and vehicle classification, intrusion, tripwire, face detection, loitering/stay detection
• Storage: microSD card support up to 512 GB
• Connectivity: wired Ethernet LAN, Power over Ethernet (PoE), 12 VDC input
• Inputs/outputs: 1 alarm input, 1 alarm output, audio in/out, built-in microphone
• Environmental protection: IP67 weather resistance
• Mounting: ceiling or wall
• Color and weight: black, approx. 0.61 kg

How to use

Mount the DAHUA IPC-HFW3649E-AS-IL on a ceiling or wall using appropriate anchors and cabling. Connect the camera to your network switch or NVR via Ethernet; if PoE is available, a single Ethernet cable will provide both data and power. Alternatively, use the 12 VDC input where PoE is not present. Configure resolution, compression and recording settings in the Dahua web interface or the connected NVR. Enable AI functions and define SMD areas, tripwire or intrusion zones to tailor detection to the monitored scene. Insert an optional microSD card for local recording and configure event-triggered recording and notifications.

Recommendations

Place the camera at a height and angle that provide clear coverage of entrances, perimeters or lanes of interest; avoid direct exposure to strong light sources that may reduce detection accuracy. Adjust warm light and IR settings for balanced illumination at night. Use AI SSA and SMD area settings to focus detections on critical zones and reduce false alarms caused by irrelevant motion. Regularly verify firmware updates and perform maintenance checks on connectors and seals to preserve IP67 integrity.
