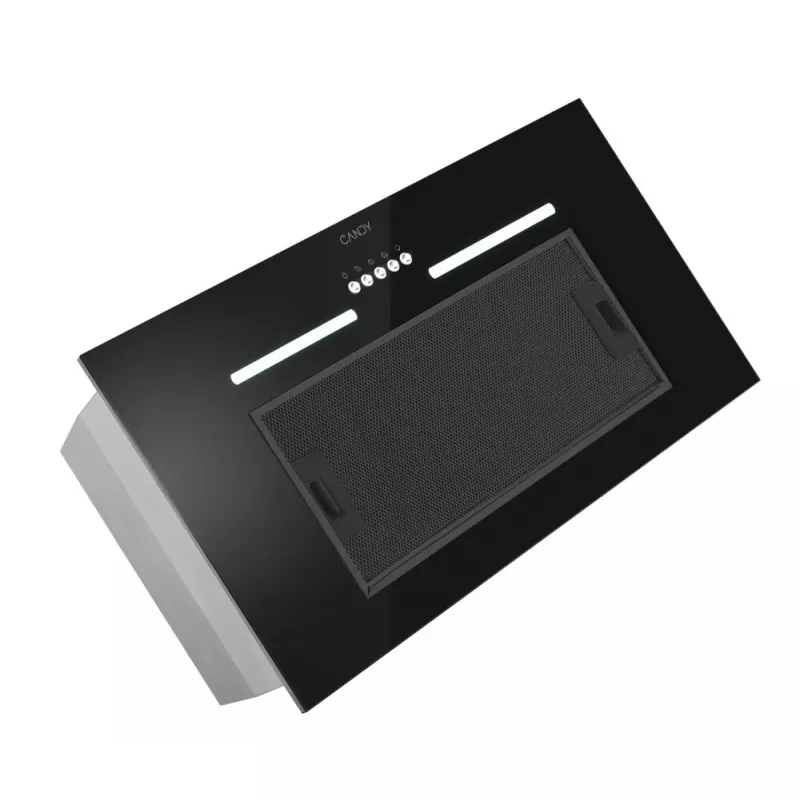

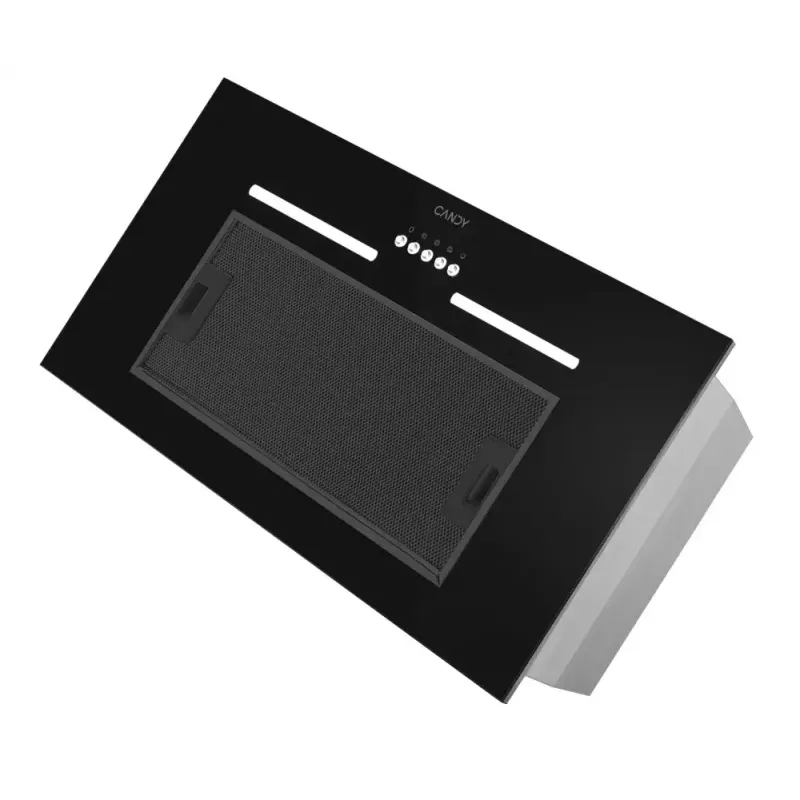

Built-in extractor hood CANDY CPY5MBG, 520 mm, 298 m³/h, black glass, ducted/recirculating

The CANDY CPY5MBG is a built-in extractor hood with a 520 mm width designed for integration into kitchen cupboards. Finished in black glass, it provides a maximum extraction power of 298 m³/h and supports both ducted and recirculating installation. The unit operates with button controls, includes one grease/charcoal filter depending on configuration, features a front 8 W LED light for workspace illumination, and has an annual energy consumption of 44 kWh. The hood’s compact depth and height of 280 mm make it suitable for standard built-in placements where a discreet, contemporary finish is required.

Advantages

The appliance combines a high maximum extraction rate with a compact 520 mm width, allowing effective vapour and odour removal in smaller kitchen modules. The black glass finish offers an easy-to-clean surface and a modern appearance that integrates with different kitchen styles. Dual-mode operation enables either ducted discharge to the exterior or recirculating use with a charcoal filter, providing installation flexibility. Simple button controls and an integrated 8 W LED front light deliver straightforward daily operation and energy-efficient illumination.

Suitable for

• Small to medium kitchens requiring a built-in extractor for a 520 mm cabinet opening
• Homes where ducted ventilation is possible or where recirculating installation is preferred
• Users who prefer a low-profile hood with straightforward button controls
• Kitchens that benefit from an easy-to-clean black glass front and integrated LED lighting

Key specifications

• Width: 520 mm
• Maximum extraction power: 298 m³/h
• Noise level at maximum power: 63 dB
• Type: Built-in extractor hood suitable for cabinet integration
• Energy efficiency class: C
• Control type: Buttons
• Light: Front 8 W LED
• Colour: Black glass finish
• Height: 280 mm
• Depth: 280 mm
• Annual energy consumption: 44 kWh

How to use

Install the CPY5MBG into a compatible 520 mm cabinet opening according to the manufacturer’s installation instructions, choosing either ducted or recirculating setup. Connect the hood to the household electrical supply through a qualified electrician. Use the button controls to switch the motor on and select the required extraction speed; the front LED light can be turned on independently to illuminate the cooking surface. For recirculating operation, fit the appropriate charcoal filter; for ducted operation, connect the discharge ductwork to the outlet. Maintain clear access to the filter and grease collector for routine servicing.

Recommendations

Clean the black glass surface with a soft, non-abrasive cloth and a mild glass cleaner to avoid scratches. Replace or clean the grease filter regularly according to cooking frequency and refresh the charcoal filter when odour removal performance decreases to ensure consistent extraction efficiency and to maintain the hood’s energy characteristics.
