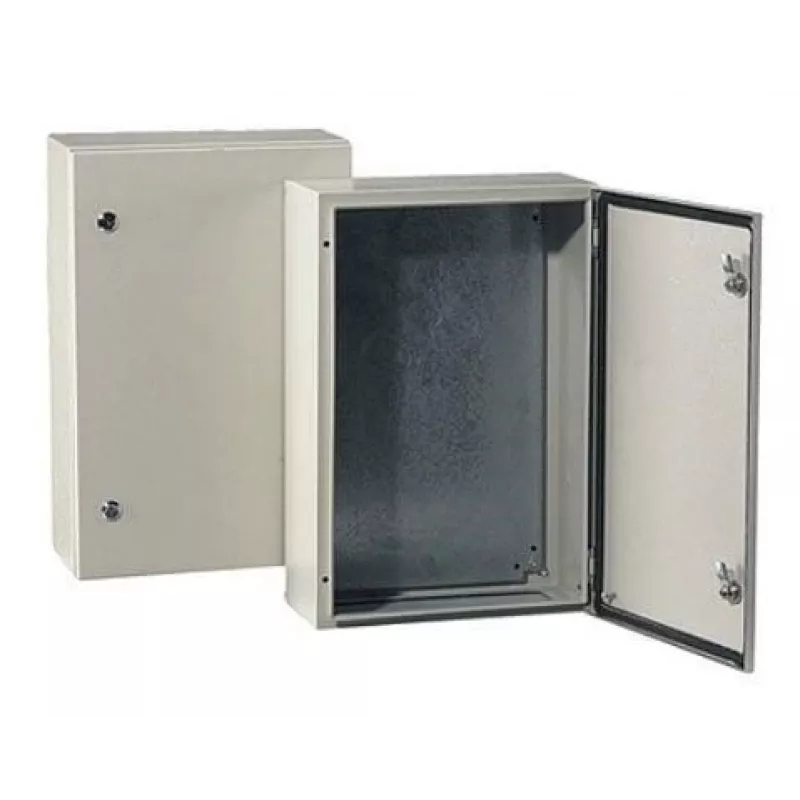

BRD MET ST8 1025 1000x800x250mm IP66 Grey Electrical Enclosure

The BRD MET ST8 1025 is a robust wall-mounted electrical enclosure designed for industrial control, power distribution, network equipment, and automation systems. Manufactured from high-quality sheet steel with a powder-coated finish in RAL 7035 grey, this enclosure offers IP66 ingress protection, making it suitable for demanding environments where dust and water ingress must be prevented.

Advantages

This enclosure provides excellent corrosion resistance and durability. The single door with a 120° opening angle allows easy access for installation and maintenance. Pre-drilled earthing points on both body and door ensure safe grounding. The included galvanized steel mounting plate and bottom gland plate simplify cable entry and component mounting.

Suitable for

• Industrial control cabinets
• Power distribution systems
• Network equipment housing
• Automation system enclosures

Key specifications

• Material: Sheet steel, powder-coated
• External dimensions (H x W x D): 1000 x 800 x 250 mm
• IP rating: IP66
• Colour: RAL 7035 Grey
• Mounting: Wall-mounted
• Door: Single door with quarter-turn lock (double-bit insert)
• Material thickness: Body 1.2 mm, Door 1.5 mm
• Mounting plate: Galvanized steel, included
• Gland plate: Included, bottom entry
• Door opening angle: 120°
• Earthing: Pre-drilled points on body and door

Recommendations

For optimal installation, ensure the wall can support the weight of the enclosure and its contents. Use appropriate cable glands for the bottom gland plate. This enclosure is ideal for applications requiring high protection against dust and water jets.
