Surveillance Camera Braun Photo Technik Scouting Cam CMOS Night Vision

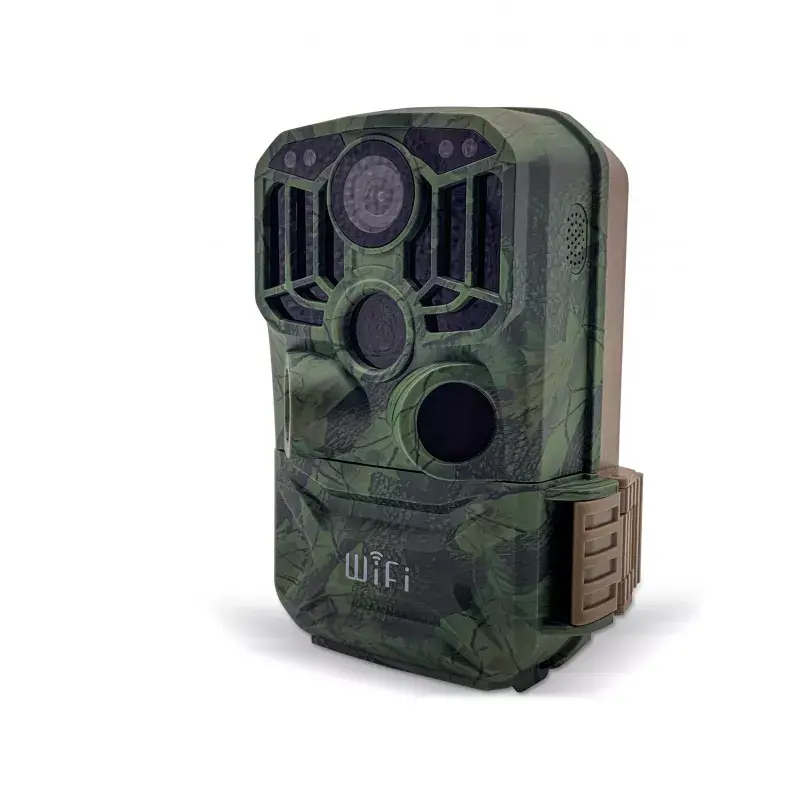

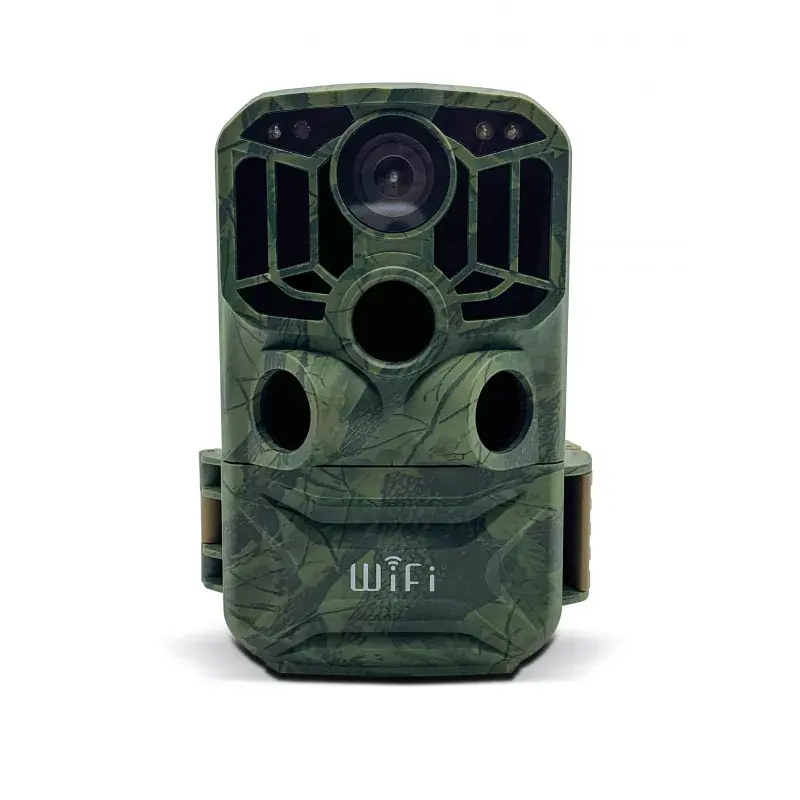

The Braun Scouting Cam Black800 WiFi is an 8 megapixel trail camera with WiFi that records color photos and video by day and infrared images at night. It is intended for wildlife monitoring and remote scene checks; with the free app you can connect a smartphone or tablet to the camera via P2P WiFi (only within the camera's range) to view images, change settings and get a live view for alignment. The camera is housed in a compact, weatherproof enclosure that meets IP66 and can be mounted on a tree or tripod; a strap and tree mount are included.

Advantages

The camera provides high-resolution 8 MP stills and up to 1296p/30 fps video, a fast trigger time of approximately 0.6 seconds and an IR night range up to 20 m using 34 black infrared LEDs. Built-in PIR motion detection covers approximately 120° with three sensitivity levels, and adjustable trigger intervals from 5 seconds to 60 minutes allow flexible capture schedules. A 2.0" color display enables quick on-site image review, and the unit records to a microSD card (JPG and MP4, max 32 GB). Additional features include time-lapse recording, integrated microphone and speaker, password protection and information overlays (date, time, moon phase, temperature).

Suitable for

• Wildlife observation (foxes, deer, wild boar and similar species)
• Monitoring of forest areas, hunting districts and game paths
• Remote site checks where a camouflage, weatherproof camera is required
• Time-lapse recordings of outdoor scenes

Key specifications

• Image sensor: 8 MP CMOS
• Video resolution: up to 1296p at 30 fps (MP4)
• Night vision: 34 black IR LEDs, range up to 20 m, 850 nm wavelength
• PIR detection: approx. 120° detection angle, three sensitivity levels
• Trigger time: ~0.6 s; trigger interval: 5 s to 60 min
• Storage: microSD card up to 32 GB (JPG / MP4)
• Display: 2.0" color LCD
• Power: eight AA batteries
• Housing: IP66, dimensions approx. 95 x 137.5 x 64 mm, weight ~488 g
• Operating temperature: -20°C to +60°C

How to use

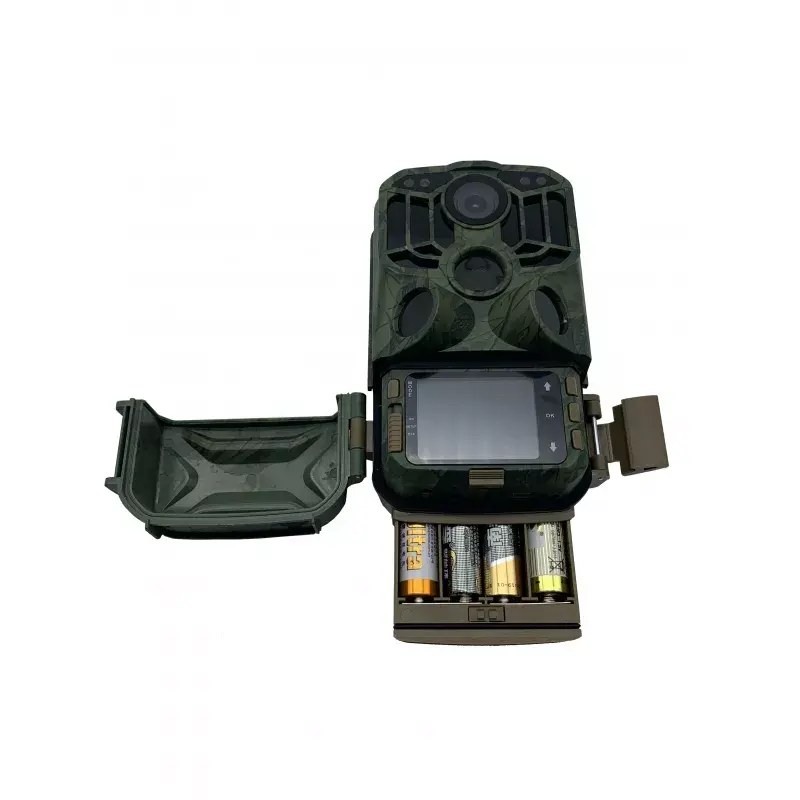

Install up to eight AA batteries and insert a compatible microSD card (max 32 GB, formatted FAT32). Mount the camera using the supplied tree strap or mount, or on a tripod, and aim the lens toward the area to be monitored. Use the built-in 2.0" display to check framing and review images. To connect a smartphone or tablet, enable the camera's WiFi via the supplied remote control and pair the device with the camera's P2P network using the free app; once connected you can view live image, browse recordings and change settings without removing the camera. Configure PIR sensitivity, trigger intervals and recording mode (photo, video or time-lapse) according to your needs.

Recommendations

Position the camera approximately at animal chest height for best detection, avoid pointing directly into strong sunlight, and test PIR sensitivity and angle using the live view to reduce false triggers. Remove the camera periodically to check battery level and memory usage; use fresh alkaline or lithium AA batteries for longer standby and operating times.
