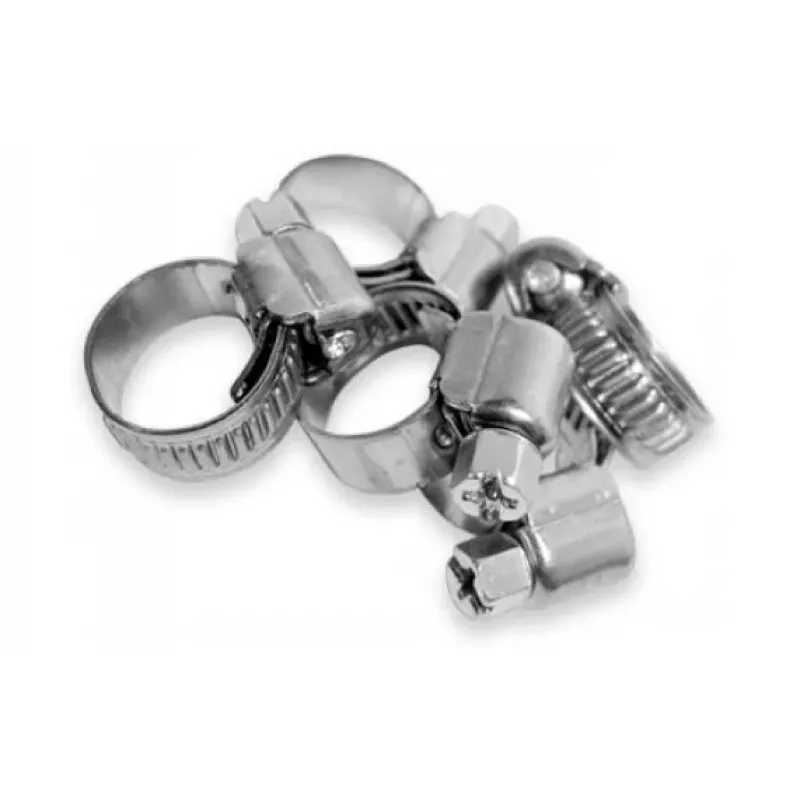

Bradas BSW2100-120/9 Worm Gear Hose Clamp 100-120mm, 9mm Band, Stainless Steel

Worm gear hose clamp with a clamping diameter range of 100–120 mm and a 9 mm band width, engineered for secure, leak-free connections on hoses, pipes, and tubes. Its AISI 430 stainless steel band and housing deliver dependable corrosion resistance, while the galvanized steel screw ensures reliable tightening.

Advantages

Rolled band edges protect hose surfaces from damage during installation and in service. The W2 material grade offers good corrosion resistance, suitable for indoor and moderately exposed environments. The clamp is reusable and can be adjusted or repositioned as needed. A 7 mm hex head or slotted screwdriver allows for quick, tool-flexible installation.

Suitable for

• Automotive cooling and fuel system hoses
• Plumbing and irrigation pipe connections
• Garden hose and pump fittings
• General industrial tube and duct fastening

Key specifications

• Clamping diameter range: 100–120 mm
• Band width: 9 mm
• Band and housing material: AISI 430 stainless steel
• Screw material: galvanized steel
• Corrosion resistance: W2 grade
• Complies with DIN 3017
• Maximum recommended torque: 4 Nm
• Reusable and adjustable

Recommendations

For best results, position the clamp over the hose and fitting, then tighten evenly with a 7 mm socket or slotted screwdriver to the recommended torque. Avoid overtightening to prevent hose damage. Inspect periodically in corrosive environments.
