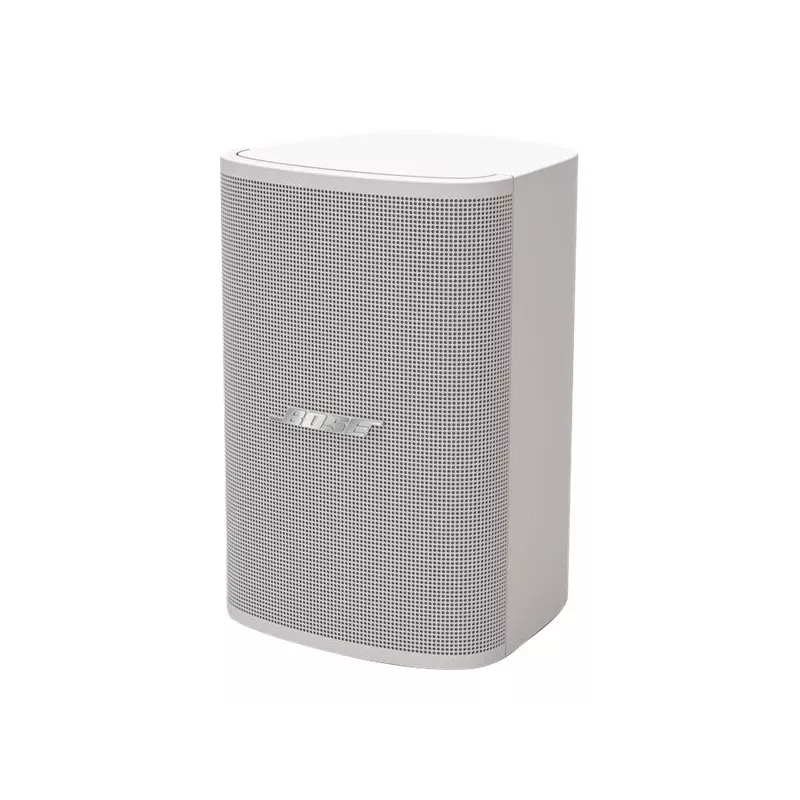

Bose DesignMax DM3SE Surface-Mount Loudspeaker 25W Two-Way Coaxial Arctic White (RAL 9003)

The Bose DesignMax DM3SE is a high-performance surface-mount loudspeaker designed for premium sound reinforcement in commercial environments. With a 25-watt power handling, two-way coaxial driver configuration, and a sleek Arctic White finish (RAL 9003), this speaker delivers clear, full-range audio for background music and paging applications. Its IP55 environmental rating ensures reliable operation in outdoor or damp indoor spaces.

Advantages

Exceptional sound quality from a compact enclosure; easy installation with QuickHold U-bracket; versatile 70V/100V transformer taps for distributed audio systems; weather-resistant design for long-lasting performance.

Suitable for

• Retail stores and restaurants
• Conference rooms and offices
• Hotels and hospitality venues
• Educational facilities
• Outdoor covered areas

Key specifications

• Speaker type: Surface-mount loudspeaker
• Driver configuration: 3.25" woofer, 0.75" coaxial tweeter
• Frequency response (-3 dB): 80 Hz - 20 kHz
• Nominal coverage: 140° conical
• Power handling: 25 W continuous (8 ohms)
• Transformer taps: 3, 6, 12, 25 W (70V/100V)
• Nominal impedance: 8 ohms (transformer bypass)
• Sensitivity: 84 dB SPL/1W @ 1m
• Maximum SPL: 104 dB peak @ 1m
• Environmental rating: IP55
• Color: Arctic White (RAL 9003)
• Mounting: QuickHold U-bracket (surface-mount)
• Input connectors: Euroblock 6-pin
• Enclosure material: Engineered plastic, steel grille

Recommendations

For optimal performance, pair with a compatible Bose amplifier or DSP. Ensure proper mounting on a sturdy surface. Suitable for both indoor and outdoor use where IP55 protection is adequate.
