Bosch Serie 4 KUL22VFD0 combi-fridge Undercounter 110 L

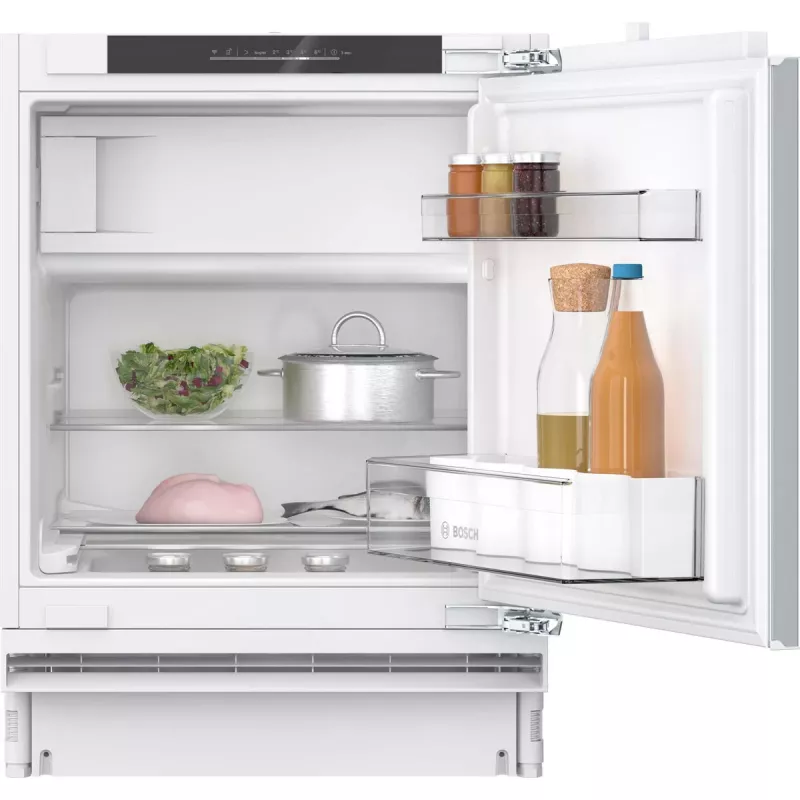

The Bosch Serie 4 KUL22VFD0 Combi-Fridge 110 L is an undercounter built-in refrigerator designed for compact kitchens and small households. With a total net capacity of 110 L, including a 93 L refrigerator compartment and a 17 L top-placed freezer, it combines basic refrigeration and freezing functions in a single 60 cm wide unit. The appliance features a white finish, right-hand door hinge, touch controls and an internal LED lamp. It operates in climate class SN-T, has a noise emission of 35 dB and a cord length of 2.3 m, which supports flexible installation in standard cabinetry.

Advantages

The combi-fridge offers a space-efficient layout suitable for installation under counters with a specified compartment height of 820 mm, width of 600 mm and depth of 550 mm. Static cooling ensures stable storage for everyday groceries while the integrated top freezer provides limited freezing capacity for short-term food preservation. The touch control interface and LED interior light simplify operation and visibility. Low noise level (35 dB) and reversible doors add to its adaptability in open-plan living spaces or compact kitchens.

Suitable for

• Small households and couples needing a compact refrigerator with a small freezer
• Under-counter installation in fitted kitchens and kitchenettes
• Office kitchenette or breakroom refrigeration for light use
• Secondary refrigeration in holiday homes or studio apartments

Key specifications

• Total net capacity: 110 L
• Fridge net capacity: 93 L
• Freezer net capacity: 17 L (top-placed)
• Freezing capacity: 3 kg / 24 h

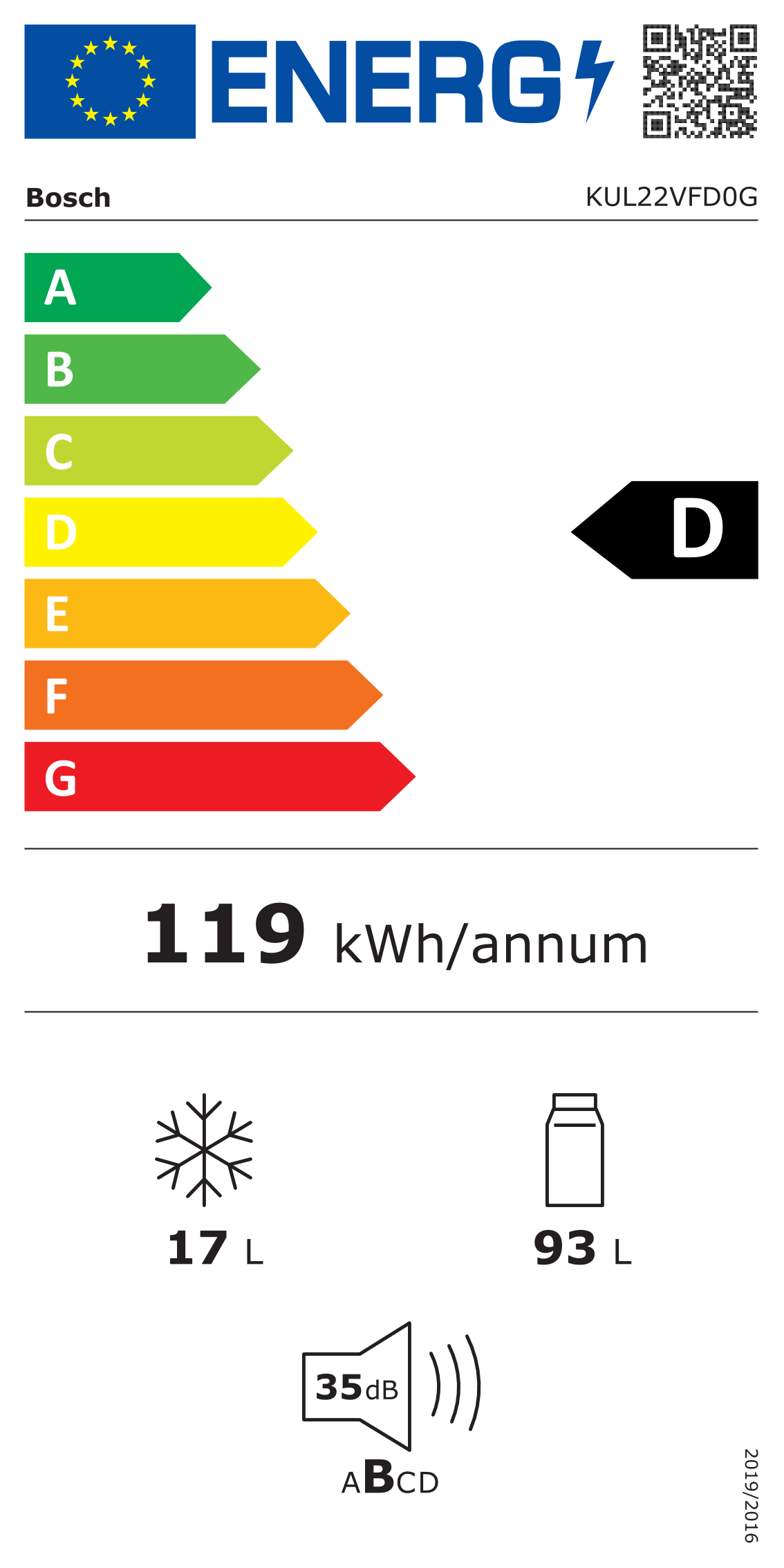

• Energy efficiency class: D
• Annual energy consumption: 119 kWh
• Noise level: 35 dB
• Climate class: SN-T
• Control type: Touch
• Cooling system: Static
• Number of doors: 1
• Reversible doors: Yes
• Installation compartment dimensions (H x W x D): 820 x 600 x 550 mm
• Cord length: 2.3 m

How to use

Place the Bosch Serie 4 KUL22VFD0 in an installation compartment that matches the specified height, width and depth. Ensure the unit is level and has adequate ventilation clearance as recommended by the cabinetry manufacturer. Connect the power cord to a properly grounded socket. Use the touch control panel to set the desired fridge temperature; allow the appliance several hours to reach stable operating temperature before loading with perishable items. Store fresh foods on the refrigerator shelves and use the top freezer compartment for short-term freezing or ice cube trays. Clean the interior regularly with a soft cloth and mild detergent, and defrost manually when ice build-up occurs if required by the static cooling system.

Recommendations

For efficient operation, avoid overfilling the fridge to allow air circulation, keep the door seal clean to maintain temperature, and place warm food in the fridge only after it has cooled to room temperature. Regularly check the door reversal if installation requires the hinge to be changed to left side, and refer to the user manual for guidance on temperature settings and maintenance intervals.
