Hammer drill bit SDS max-8X 32x200x320mm Bosch 2608900254 (for rotary hammers, concrete drilling)

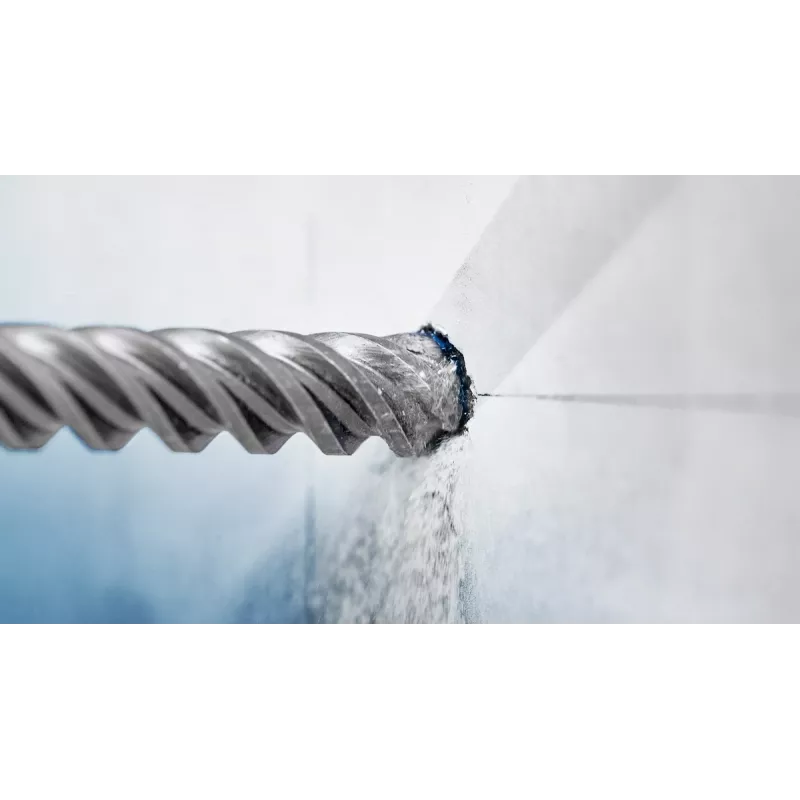

SDS max-8X 32x200x320mm Bosch 2608900254 is a hammer drill bit designed for rotary hammers with an SDS-max connection. The drill bit has a 32 mm diameter, a 200 mm working length and a 320 mm total length, and is intended for drilling and chiselling in concrete and masonry. The carbide tip and reinforced flute geometry provide efficient material removal and stable drilling performance in heavy-duty applications where an SDS-max shank is required.

Advantages

The bit’s optimized carbide tip increases wear resistance and maintains cutting performance over extended use. Reinforced flute design improves dust removal from the hole, reducing clogging and allowing more consistent drilling progress. The SDS-max connection ensures secure fit and effective power transfer from rotary hammers suitable for demanding concrete and masonry work.

Suitable for

• Drilling holes in concrete for anchors and dowels
• Creating openings in masonry and brick
• Heavy-duty chiselling and demolition when used with compatible rotary hammers
• Construction and installation work requiring SDS-max bits

Key specifications

• Diameter: 32 mm
• Working length: 200 mm
• Total length: 320 mm
• Shank type: SDS-max
• Intended materials: concrete and masonry
• Tip: carbide-tipped for increased wear resistance

How to use

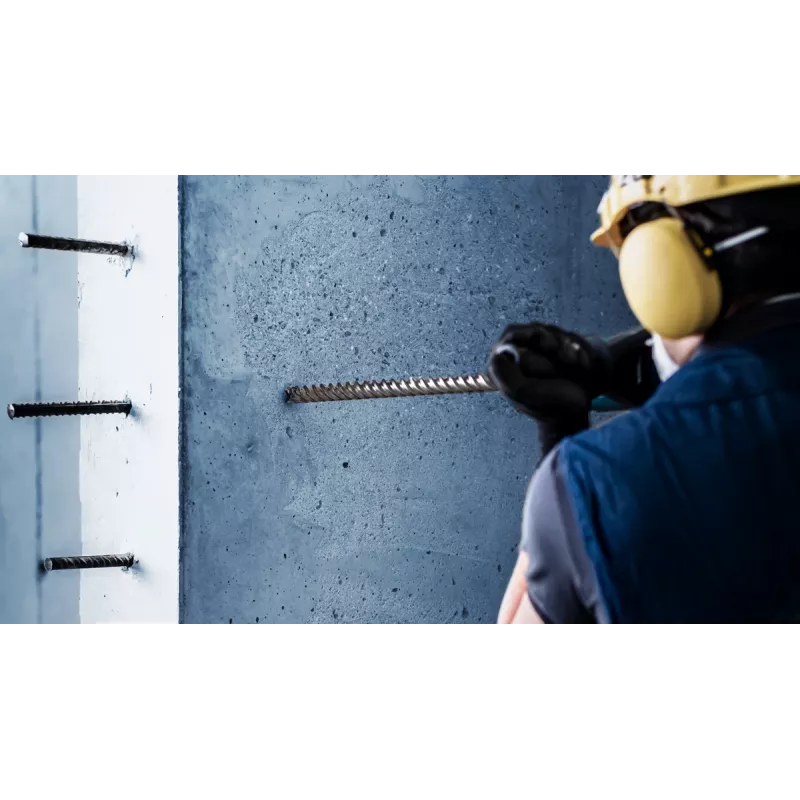

Insert the SDS-max shank into the rotary hammer’s chuck until it locks. Select the hammer drilling mode on the tool if available. Position the tip on the marked drilling point, start the tool at low speed to establish the hole and then apply steady pressure while maintaining alignment. Periodically withdraw the bit to clear dust and debris from the hole and to prevent overheating. For chiselling tasks, switch to the tool’s chisel mode and use appropriate safety measures.

Recommendations

Use appropriate personal protective equipment such as safety goggles, hearing protection and dust mask when drilling in concrete. Match the bit diameter and working length to the required hole depth and anchor specifications. For prolonged drilling or large diameter holes, allow the bit to cool periodically and remove accumulated dust to maintain performance.
