Bosch PLL 360-1G Set Line Laser (0603663MZ1)

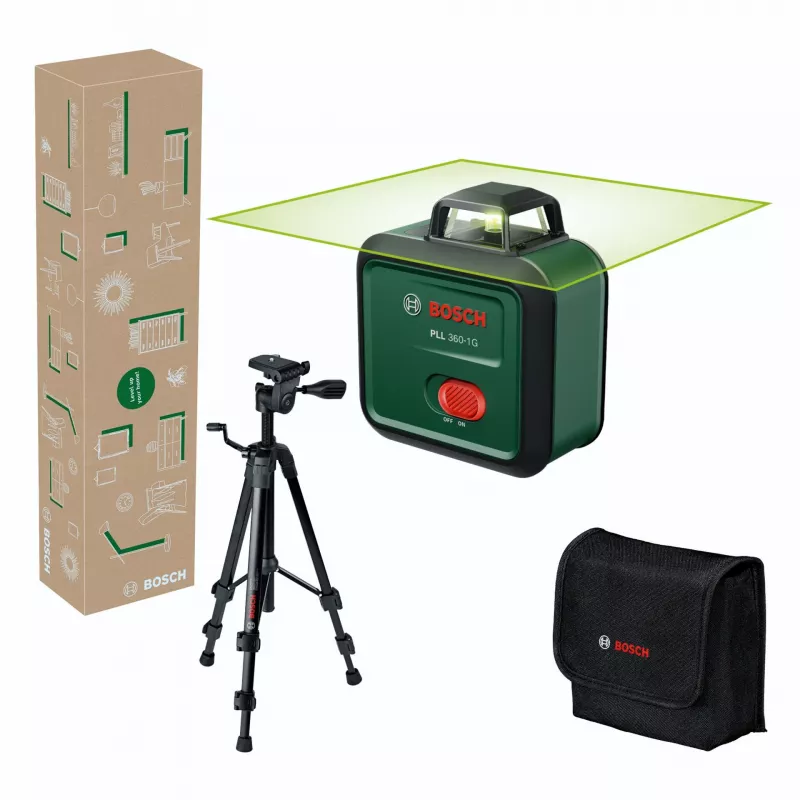

The Bosch PLL 360-1G Set is a professional-grade line laser designed for precise horizontal alignment in interior construction and renovation. This set includes a robust aluminium tripod and protective pouch, making it ready for immediate use on site. The green laser diode ensures excellent visibility even in bright conditions, with a working range of up to 20 m diameter.

Advantages

Self-levelling within ±4° in just 4 seconds saves time and ensures accuracy. The pendulum lock protects the laser during transport, while the over-levelling indicator alerts you if the tool is tilted beyond its levelling range. Powered by 4 AA batteries, it offers cordless flexibility.

Suitable for

• Installing ceiling grids, wall partitions, and shelving
• Aligning cabinets, worktops, and flooring
• Setting out electrical and plumbing runs

Key specifications

• Laser colour: Green
• Laser diode: 500 – 540 nm
• Laser class: 2
• Accuracy: ± 0.4 mm/m
• Working range (radius): 10 m
• Working range (diameter): 20 m
• Self-levelling range: ± 4°
• Self-levelling time: 4 s
• Tripod thread: 1/4"
• Power source: 4 x 1.5 V LR6 (AA) batteries
• Number of laser lines: 1
• Projection: 360° horizontal line
• Operating temperature: +5 °C to +40 °C
• Storage temperature: -20 °C to +70 °C
• Pendulum lock: Yes
• Over-levelling indicator: Yes

Recommendations

For best results, use with a Bosch laser receiver for extended range outdoors. Always store in the protective pouch when not in use.
