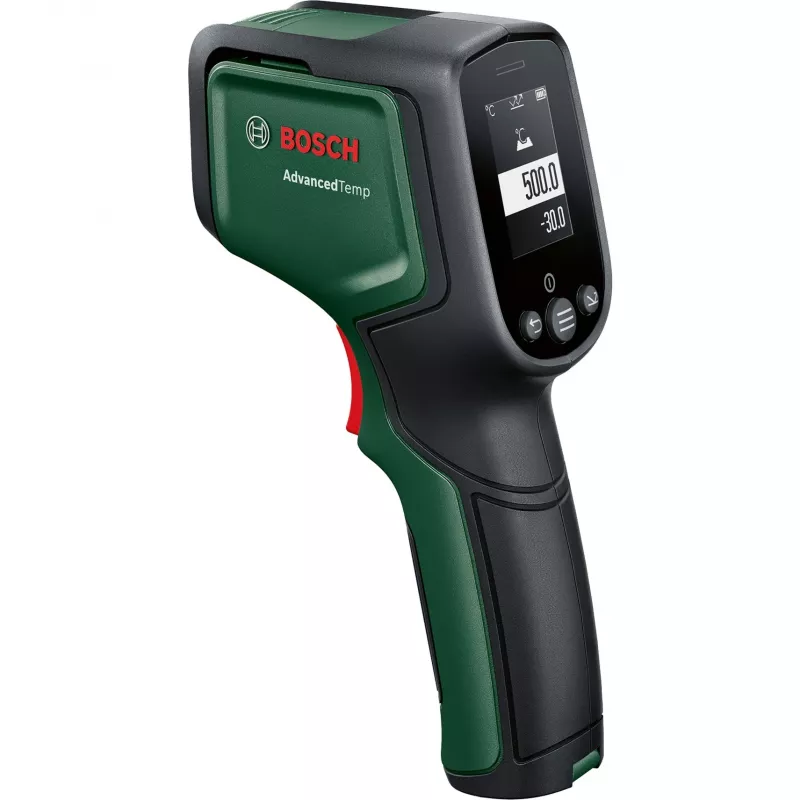

Bosch Home and Garden AdvancedTemp Infrared Thermometer (06036832Z0)

Measuring surface temperatures without contact is a challenge in many situations, from checking hot engine parts to monitoring HVAC systems. The Bosch AdvancedTemp solves this by offering non-contact infrared measurement with a laser pointer for precise targeting, making it safe and convenient for a wide range of applications.

Who is it for

This device is ideal for DIY enthusiasts, technicians, and homeowners who need quick and accurate temperature readings without touching the surface. It is particularly useful for automotive diagnostics, electrical inspections, cooking, and home energy audits.

Main features

• Non-contact infrared measurement from -30 °C to +500 °C (-22 °F to +932 °F)
• 12:1 optical resolution (distance-to-spot ratio) for accurate readings at a distance
• Adjustable emissivity (0.75, 0.85, 0.95) to suit different materials
• Built-in Class 2 laser pointer for precise targeting
• Color LCD display with backlight for easy reading in any light
• Selectable units: Celsius (°C) and Fahrenheit (°F)
• Continuous measurement, hold function, and min/max display
• Automatic shut-off after 60 seconds to save battery
• Powered by 2 AA batteries (included)

Specifications

• Measurement range: -30 °C to +500 °C (-22 °F to +932 °F)
• Accuracy: ±1.5 °C (0 °C to 100 °C), ±1.5% (100 °C to 500 °C), ±2 °C (-30 °C to 0 °C)
• Display resolution: 0.1 °C / 0.1 °F
• Response time: < 0.5 seconds
• Optical resolution (D:S): 12:1
• Emissivity: adjustable (0.75, 0.85, 0.95)
• Laser: Class 2, wavelength 630-670 nm, output < 1 mW
• Display: color LCD with backlight
• Power: 2 x 1.5 V LR6 (AA) batteries
• Battery life: approx. 10 hours
• Auto shut-off: after 60 seconds
• Operating temperature: -5 °C to +50 °C
• Storage temperature: -20 °C to +70 °C
• Protection class: IP20
• Included accessories: 2x AA batteries, wrist strap, quick start guide

Tips

For best accuracy, ensure the target area is larger than the measurement spot. Adjust the emissivity setting according to the material: use 0.95 for most non-reflective surfaces, 0.85 for painted or oxidized metals, and 0.75 for shiny metals. Clean the lens regularly with a soft cloth to maintain performance.
