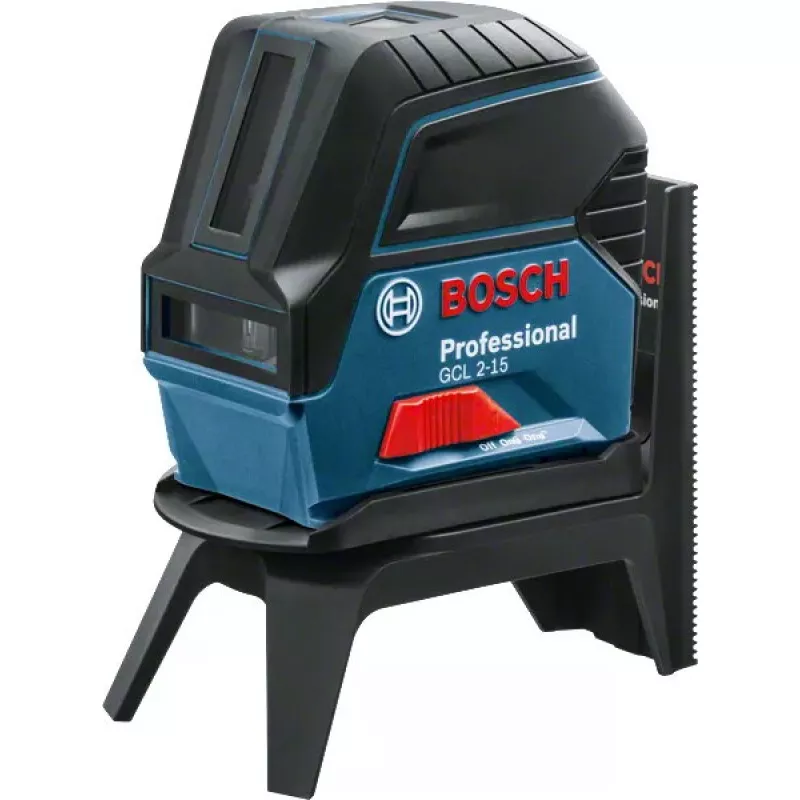

Bosch GCL 2-15 Line/Point level 15 m 650 nm (

The Bosch GCL 2-15 Professional is a compact line/point level designed for short-distance levelling and alignment tasks. It projects one horizontal and one vertical laser line plus two centred plumb points, with a maximum range of 15 m and a levelling accuracy of ±0.3 mm/m. The device features self-levelling up to ±4°, runs on AA batteries for up to 6 hours, and includes a tripod thread (1/4", 5/8") for flexible mounting.

Advantages

The tool offers a pendulum lock for safe transport, single-handed operation and an intuitive user interface for easy handling, and selectable line and point modes. Laser lines can be positioned around the centred plumb points, and the unit is compatible with the rotating RM 1 Professional multifunctional mount for precise alignment and versatile mounting options.

Suitable for

• Short-distance levelling and alignment up to 15 m
• Interior installations such as cabinets, shelves and tiles
• Plumbing reference points and vertical alignment tasks
• Mounting on tripods or multifunctional mounts (1/4", 5/8")

Key specifications

• Model: Bosch GCL 2-15 Professional (0 601 066 E00)

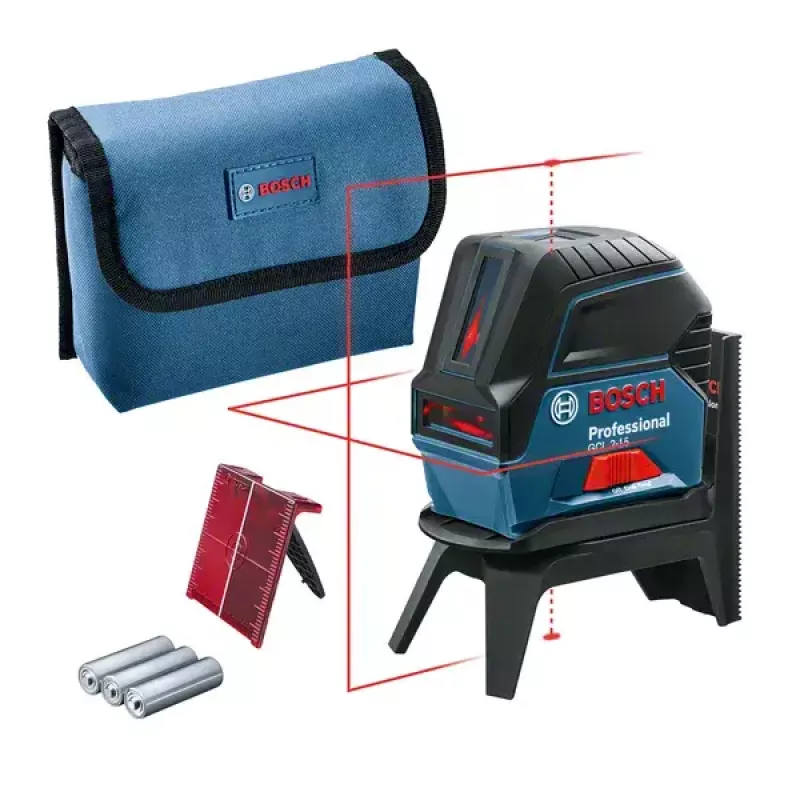

• Laser type: 1 horizontal line, 1 vertical line, 2 centred plumb points
• Maximum range: 15 m
• Levelling accuracy: ±0.3 mm/m
• Self-levelling range: ±4°
• Battery: AA (operating time up to 6 hours)

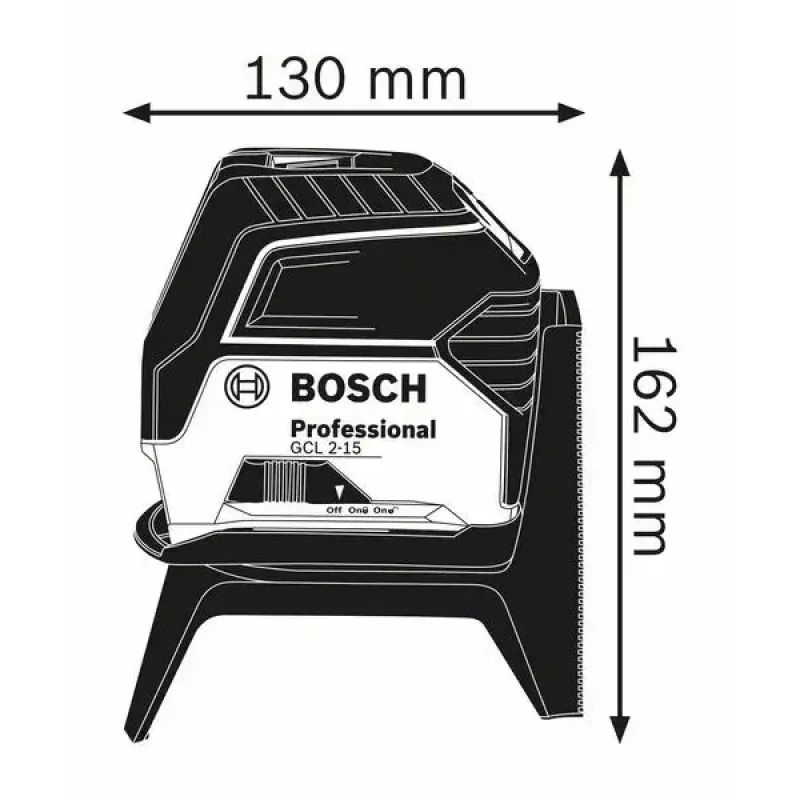

• Dimensions (W×D×H): 83 × 130 × 162 mm
• Tripod thread: 1/4" and 5/8"

How to use

Place the Bosch GCL 2-15 on a stable surface or mount it on a tripod or RM 1 Professional mount using the 1/4" or 5/8" thread. Switch the unit on and select line or point mode according to the task. Allow the device to self-level within the ±4° range; if the pendulum lock is engaged, release it for levelling and lock it again for transport. Adjust the position of the laser lines around the centred plumb points as needed for precise alignment.

Recommendations

For best visibility and accuracy keep the working distance within the specified 15 m range, use fresh AA batteries for extended runtime, and secure the pendulum lock during transport. When performing critical alignments, mount the tool on a stable tripod or on the RM 1 Professional multifunctional mount.
