Bosch 0 601 9K3 203 drill 1900 RPM 900 g Black, Blue, Red

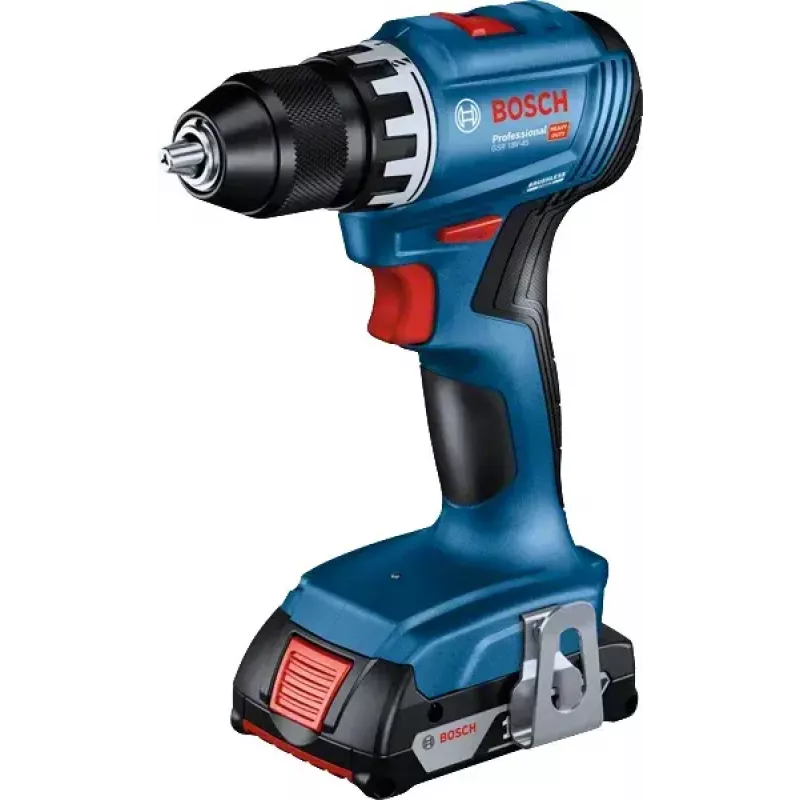

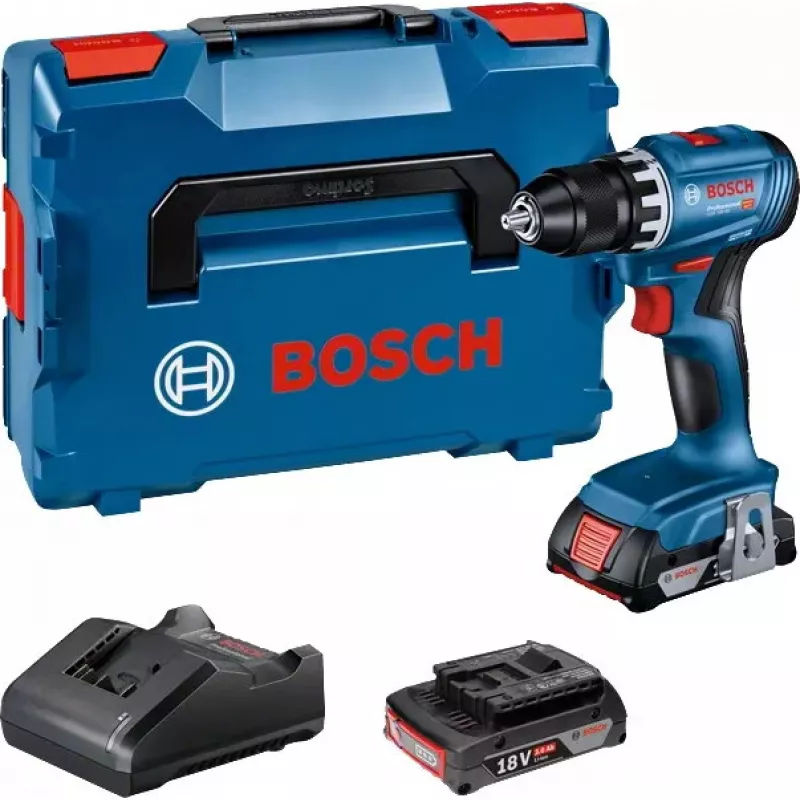

The Bosch 0 601 9K3 203 pistol grip drill combines a compact ergonomic design with a brushless motor to deliver efficient drilling and screwdriving performance. With a maximum no-load speed of 1900 RPM and a chuck capacity of 13 mm, the tool is designed to handle common wood and metal tasks while remaining lightweight at 0.9 kg. Supplied with two 2 Ah lithium-ion batteries, this battery-powered drill is intended for mobile use where portability and continuous operation are required.

Advantages

The brushless motor improves energy efficiency and reduces maintenance compared with brushed alternatives, extending run time per battery charge. A high maximum idle speed of 1900 RPM enables faster drilling and screw insertion, and the 13 mm chuck accepts a broad range of standard bits. The drill’s light weight of 0.9 kg and pistol grip design support comfortable handling during extended use. Inclusion of two batteries increases available working time and reduces interruptions for recharging.

Suitable for

• Drilling holes in wood up to 35 mm
• Drilling through steel up to 10 mm
• Screwdriving tasks in furniture assembly and light construction
• Mobile maintenance and repair work where cordless operation is needed
• DIY projects and hobbyist woodworking

Key specifications

• Design: pistol grip drill
• Motor type: brushless
• Maximum no-load speed: 1900 RPM
• Maximum drilling diameter in wood: 35 mm
• Maximum drilling diameter in steel: 10 mm
• Chuck capacity: 13 mm
• Power source: lithium-ion battery (2 Ah batteries included)
• Weight: 0.9 kg
• Color: black, blue, red

How to use

Charge the supplied batteries fully before first use and insert a charged battery into the drill until it locks. Select a suitable drill bit or screwdriver bit and tighten it securely in the 13 mm chuck. Use the variable speed trigger and any integrated speed settings to match the material and bit size: start at lower speed for pilot holes and increase toward the 1900 RPM limit for faster work. Apply steady pressure without forcing the tool; allow the brushless motor to maintain speed under load. After use, remove the battery for safe storage and maintain bits and chuck by keeping them clean and dry.

Recommendations

For longer continuous drilling sessions, swap between the two supplied batteries to avoid extended downtime. Use appropriate drill bits and protective equipment when working with metal or dense hardwood. Keep ventilation openings clear during operation and follow standard battery safety and charging practices provided by the battery manufacturer.
