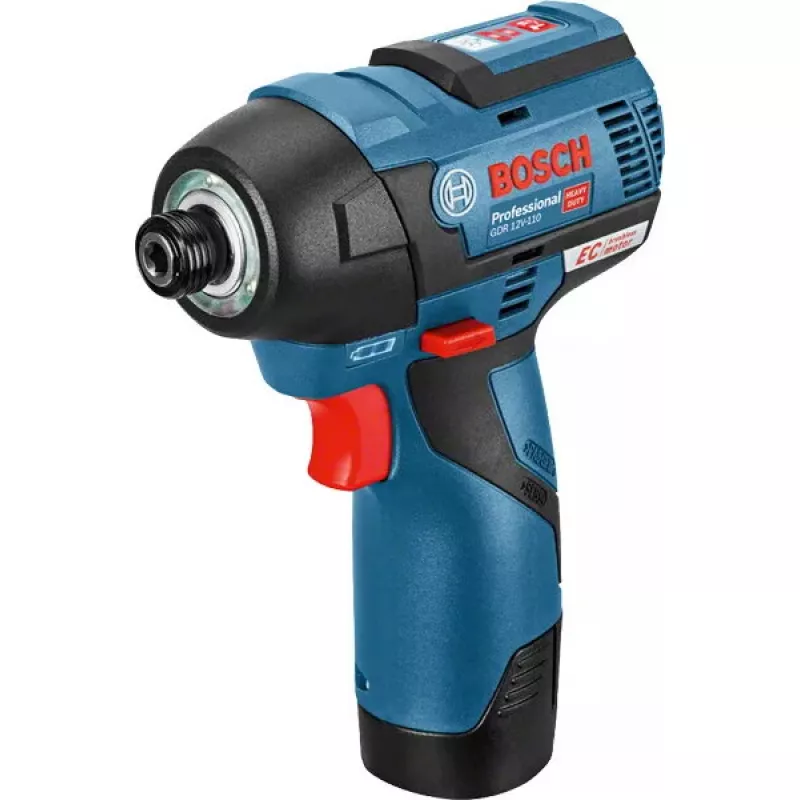

Bosch 0 601 9E0 005 power wrench 1/4 inch 3100 RPM 110 N⋅m Black, Blue 12 V

The Bosch 0 601 9E0 005 is a compact 12V impact wrench with a 1/4" drive that delivers up to 110 N⋅m of maximum torque and an idle speed of 3100 RPM. Designed with a narrow 54 mm body and a depth of 139 mm, the tool measures 177 mm in height and combines cordless convenience with high tightening and loosening performance. The product runs from a Lithium-Ion battery (2.5 Ah typical capacity) and incorporates a reverse function and a built-in light to support work in confined or poorly lit areas. It supports screw and bolt diameters commonly used in assembly and maintenance tasks, offering a balance of power and portability for professional tradespeople and home users.

Advantages

The compact housing provides easier access in tight spaces while preserving impact performance up to the specified torque. Battery operation ensures portability and reduces dependency on mains power during mobile applications. The integrated reverse mechanism allows quick direction changes for fastening and removal, and the built-in LED light improves visibility at the point of contact. Balanced weight distribution and a slim grip improve handling for extended use.

Suitable for

• Fastening and removing bolts and screws with diameters from small sizes up to M12
• Automotive maintenance tasks where a compact impact wrench is required
• On-site assembly, installation, and maintenance in workshops and construction
• DIY projects that require cordless torque and portability

Key specifications

• Drive size: 1/4"
• Voltage class: 12 V
• Maximum torque: 110 N⋅m
• Idle speed (max): 3100 RPM
• Typical battery capacity: 2.5 Ah (Lithium-Ion)
• Reverse function: yes
• Built-in work light: yes

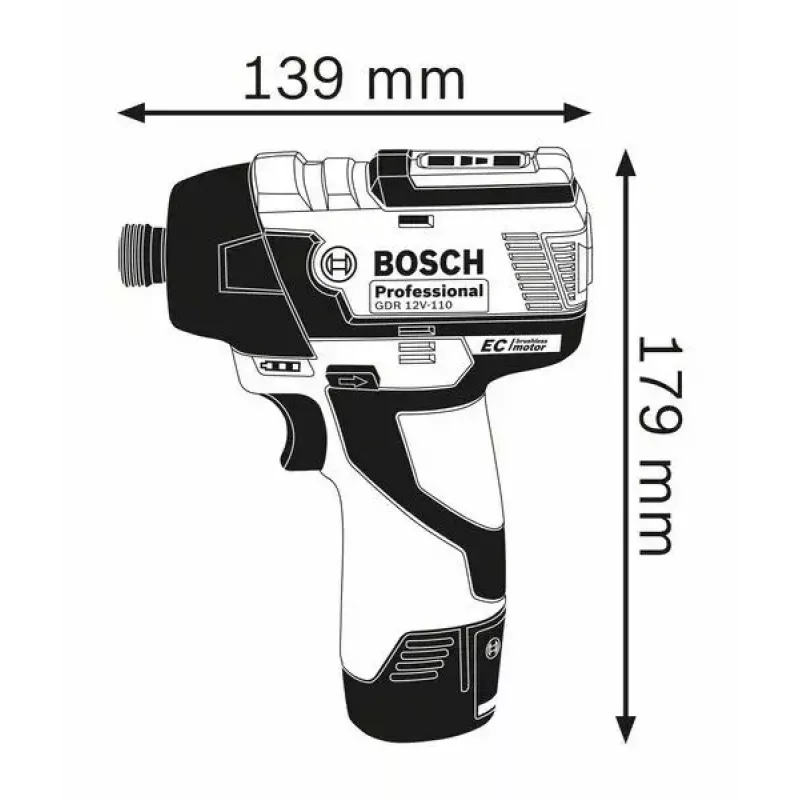

• Dimensions (W×D×H): 54 mm × 139 mm × 177 mm
• Body colour: blue and black

How to use

Install a compatible 1/4" bit or adapter securely in the anvil before operation. Fit a fully charged Lithium-Ion battery pack to the tool according to the manufacturer’s battery insertion guide. Select the proper bit for the fastening task and set the tool in the required direction using the reverse control. Apply the tool to the fastener, keep a firm grip, and trigger the impact mechanism while maintaining alignment with the screw or bolt axis. Release the trigger once the desired fastening or removal is achieved and remove the bit when finished. Allow the battery to cool between prolonged runs and follow safety guidelines for protective equipment.

Recommendations

The tool is intended for use with fasteners within the supported size range; avoid exceeding recommended torque needs to prevent damage to fasteners or work surfaces. Use appropriate personal protective equipment, ensure the work area is clear, and use genuine or compatible Bosch batteries and chargers to maintain performance and safety.
