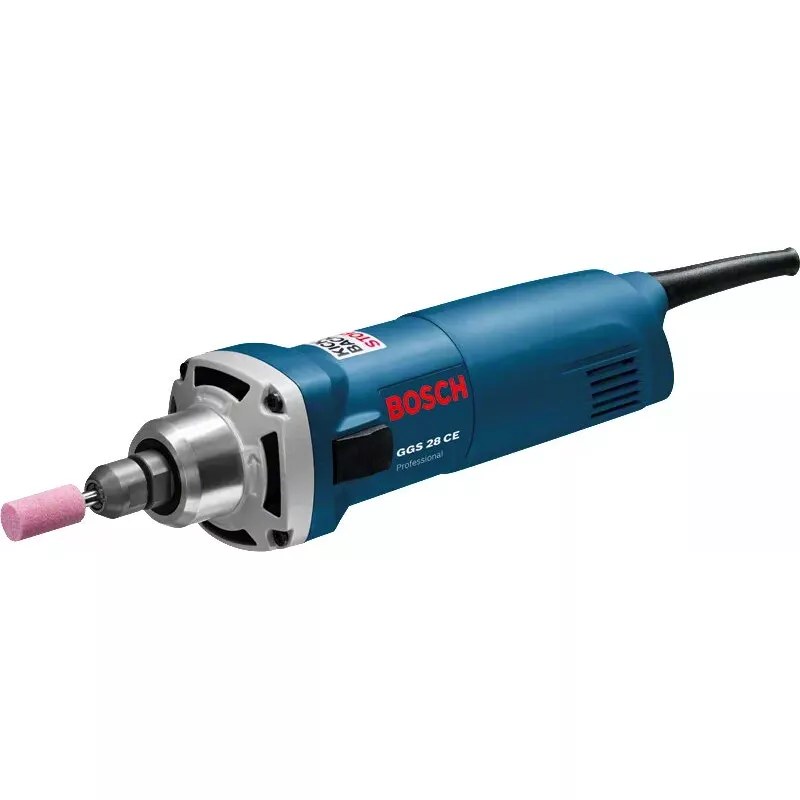

Bosch 0 601 220 100 die/straight grinder 10000 RPM 650 W

The Straight Grinder Bosch 0 601 220 100 is a compact AC-powered grinder designed for precise grinding and finishing tasks. Equipped with a 650 W motor and a maximum idle speed of 10,000 RPM, the tool provides consistent rotational power for small-diameter grinding tools. With an 8 mm collet diameter and compatibility with grinding attachments up to 1.9 cm in diameter, this straight grinder is optimized for detailed work where control and low weight matter. The unit weighs 1.4 kg, offering a balance of stability and maneuverability for extended use.

Advantages

The straight grinder delivers steady power from a 650 W motor while maintaining a compact, lightweight design that reduces operator fatigue. Its maximum idle speed of 10,000 RPM supports efficient material removal and smooth finishing on small components. The 8 mm collet secures a wide range of rotary tool bits and allows the use of attachments up to 1.9 cm diameter for more substantial tasks. AC power ensures continuous operation without battery-related interruptions, and the overall construction is intended for accurate, repeatable results in detail work.

Suitable for (tasks / use cases)

• Precision grinding and deburring of metal and plastic components
• Tool and part finishing in small workshops and maintenance shops
• Surface preparation and smoothing in model making and jewelry work
• Removing rust, paint edges, and welding burrs from small assemblies
• Shaping, sanding, and polishing small-diameter workpieces

Key specifications

• Motor power: 650 W
• Maximum idle speed: 10,000 RPM
• Collet diameter: 8 mm
• Maximum tool/grinding attachment diameter: 1.9 cm
• Power source: AC (mains)
• Weight: 1.4 kg

How to use

Secure the grinder in a stable position and connect to a suitable AC power source following local electrical safety rules. Select a compatible rotary bit or grinding attachment with a shank that fits the 8 mm collet and does not exceed the maximum diameter of 1.9 cm. Tighten the collet according to the manufacturer's instructions before switching on the tool. Operate the grinder at controlled contact pressure and maintain an even feed to avoid overheating or excessive material removal. Allow the tool to reach full idle speed before engaging the workpiece and keep a firm grip to manage torque reaction.

Recommendations

Use appropriate personal protective equipment including safety glasses, hearing protection, and gloves. Match the accessory type and grit grade to the material and the desired finish. Keep ventilation or dust extraction in place when working with materials that generate fine particles. Avoid prolonged continuous use without breaks to prevent motor overheating; allow the tool to cool if it becomes unusually hot.
