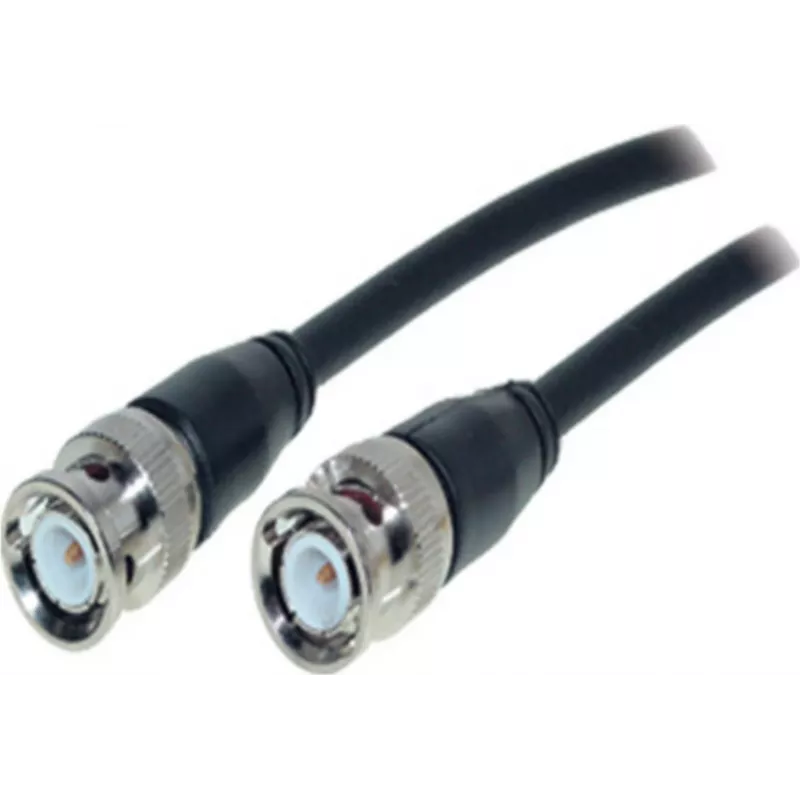

BNC cable ShiverPeaks 77520 RG (BNC connector coaxial cable)

ShiverPeaks 77520 RG BNC connector coaxial cable is a 20.0 m, double-shielded RG-type cable designed for reliable signal transmission in audio/video, CCTV and RF environments. The cable uses a rigid inner conductor and BNC male-to-male connectors for quick, secure connections between devices. Constructed with dual shielding and a 50 Ω impedance, this coaxial cable is intended to carry composite video, analog RF signals and baseband data with stable impedance and reduced interference over medium distances.

Advantages

The double-shielded construction and solid inner conductor provide consistent signal integrity and improved protection against electromagnetic interference. BNC connectors enable fast push‑and‑twist coupling for secure mechanical and electrical contact. The 50 ohm impedance and RG design ensure compatibility with standard RF and CCTV equipment while the 20 m length allows flexible placement of cameras, monitors or test equipment without needing multiple joins.

Suitable for

• Connecting CCTV cameras to DVRs and monitors
• Composite video transmission between professional and consumer A/V equipment
• Short- to medium-range RF and baseband signal routing in test setups
• Temporary or permanent installations where a 50 Ω coaxial link is required

Key specifications

• Cable type: RG-series coaxial
• Impedance: 50 Ω
• Length: 20.0 m
• Shielding: double (braid + foil)
• Conductor: rigid/solid inner conductor
• Connector type: BNC male to BNC male

How to use

Route the ShiverPeaks RG BNC coaxial cable between devices, avoiding sharp bends and mechanical stress points. Align the BNC connectors, push together and twist until they lock to ensure a firm connection. For best performance, secure the cable along its run with clips or ties at intervals to prevent strain on connectors. When terminating or re-terminating, maintain correct stripping dimensions and connector assembly to preserve the double shield and solid conductor continuity.

Recommendations

Use this 50 Ω BNC cable for applications matching RG coaxial characteristics and ensure connectors are clean and properly seated. Avoid routing parallel to power cables to minimize interference; for long runs beyond 20 m, consider signal amplifiers or higher-grade coaxial types to maintain signal levels.
