BNC Cable ShiverPeaks 77501 RG (coaxial connector cable for video/signal transmission)

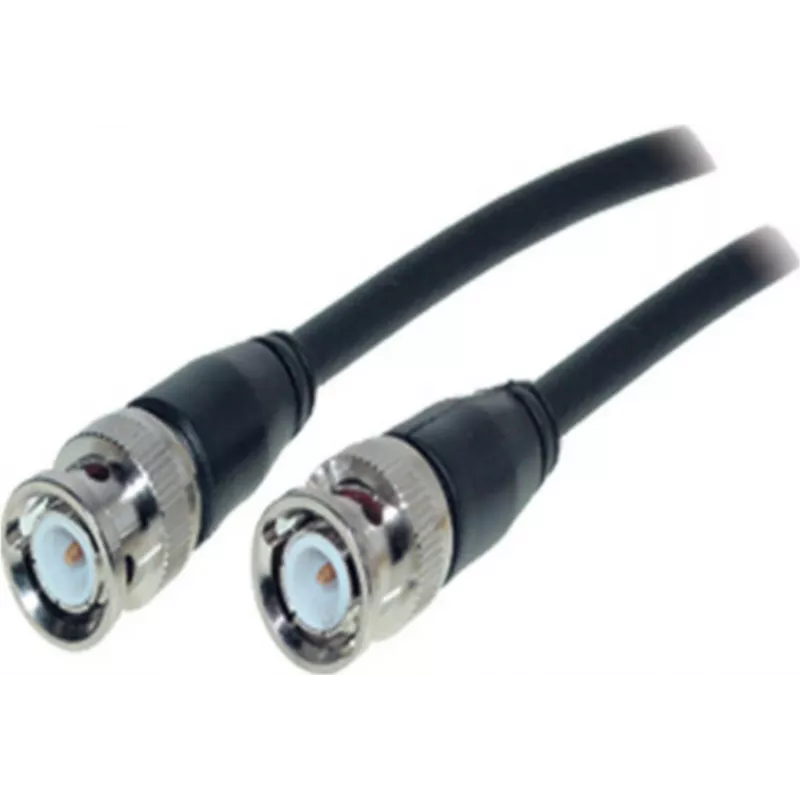

BNC Cable ShiverPeaks 77501 RG is a coaxial connector cable designed for reliable video and signal transmission in CCTV, broadcast and AV systems. The cable features BNC terminations on both ends and an RG-type coaxial construction suitable for short to medium runs where stable analog or digital signal integrity is required. Its 50 ohm characteristic impedance and compact form factor make it compatible with test equipment, monitoring devices and professional installations that use BNC connectors.

Advantages

This BNC cable delivers a consistent impedance match for reduced signal reflections and improved image or data clarity. The robust BNC connectors provide a secure, twist-lock style mating that resists accidental disconnection. The RG coaxial construction offers effective shielding against electromagnetic interference and maintains stable transmission over everyday installation distances. The cable is easy to route and handle in both permanent and temporary setups.

Suitable for

• CCTV camera connections and video monitoring systems
• Broadcast and studio patching for composite video signals
• Signal connections to oscilloscopes, spectrum analyzers and test instruments
• Audio-visual equipment linking in classrooms, conference rooms and control rooms

Key specifications

• Cable type: RG-series coaxial (50 ohm characteristic impedance)
• Connector type: BNC male to BNC male
• Intended use: analog and digital video/signal transmission over short to medium distances
• Shielding: braided/foil coaxial shielding for EMI protection
• Typical flexibility: suitable for indoor routing and panel connections

How to use

Connect each BNC termination to the corresponding BNC jack on cameras, monitors, recorders or test equipment by aligning the connector and engaging the bayonet lock. Ensure connectors are clean and free of debris before mating to maintain best contact. Route the cable avoiding sharp bends and sources of strong electromagnetic interference to preserve signal quality. For longer runs or critical signals, verify source and load impedance match and use appropriate amplification or signal conditioning if necessary.

Recommendations

For reliable performance, use this BNC cable for lengths appropriate to RG-type coaxial characteristics—avoid excessive run lengths without proper signal amplification. Inspect connectors periodically for corrosion or wear, and replace the cable if physical damage or degraded signal quality is observed.
